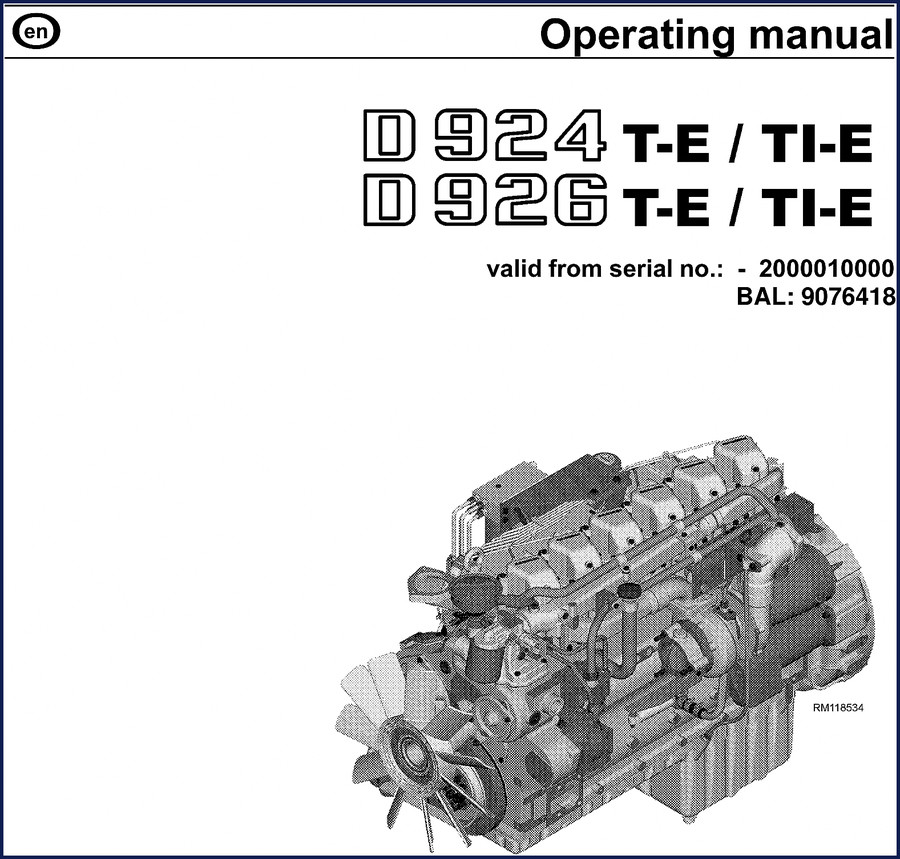

Liebherr D924 T-E, D924 TI-E, D926 T-E, D926 TI-E Operators Manual

I’m Mike Callahan. Twenty-eight years turning wrenches, and I’ve pulled a lot of manuals off the shelf that looked official but weren’t. This Liebherr D924 T-E, D924 TI-E, D926 T-E, D926 TI-E Operators Manual is the real deal: 87 pages of factory documentation that tells you exactly how to run these diesel engines without frying the electronics or burning your arm off. If you’re working with these engines — whether you’re a field operator or a shop guy like me — you need the original print, not some third-party rewrite that guesses at torque values.

I’ve seen guys skip the start-up procedure on a D924 TI-E and lock out the ECU because they hit the glow plugs too long. That’s an expensive lesson. This manual covers it from the ground up.

Technical Data: What You Get in Section 1.1

Section 1.1 dives into the diesel engine specs — displacement, compression ratios, injection pressures. The manual breaks down the differences between the D924 T-E and the D924 TI-E, and the D926 variants. If you need the rated power output at a specific RPM, it’s in there. Page references? You’ll find the torque specs for the cylinder head bolts if you go looking, but the real value is knowing which settings are safe for electronic control modules.

Safety Regulations – Not Optional

Chapter 2 runs 11 sub-sections covering everything from crushing prevention to explosion danger. Pay attention to section 2.8: safety precautions for the diesel engine with electronic control equipment. I’ve seen a guy arc-weld a bracket without disconnecting the ECU — fried a $3,000 module. This manual tells you the lock-out procedure. Nobody gets hurt if you read it.

Operation and Handling: Before You Hit Start

Section 3.2 walks through preparing for initial start-up, daily checks, and the actual starting sequence. It’s not a quick list — it’s a factory-audited process. You’ll find details on the control elements (section 3.1) that you won’t get from a YouTube video. If you’re new to these engines, the manual also explains the model description coding — what the “T-E” and “TI-E” suffixes mean for turbocharging and intercooling.

Diesel Engine with Electronic Control: ESX Override

Pages 36-38 (roughly) cover the safety and emergency operation program for engines with electronic control equipment. If the control unit locks you out, the manual gives the steps to override without damaging the system. That’s worth the price of the access alone. Using an aftermarket manual that skips this? You’re guessing. I don’t guess on customer equipment.

3 Reasons to Choose OEM Documentation from Liebherr

One: The torque values are not approximated from a Chinese scan. They’re printed on Liebherr letterhead. Two: The wiring diagrams for the D926 TI-E’s electronic governor come from the factory floor, not a forum. Three: The maintenance intervals in chapter 4 are based on actual operational data from Bullé, Switzerland. If you buy a reprint, you lose the serial number tracking — this manual is keyed to serial number 2000010000 and up. Check your engine tag.

This manual pairs well with other factory documents. For example, Liebherr RL 44 2010 Operators Manual – Factory Specs for Heavy Equipment gives you the wheel loader side of things. If you’re running an excavator, grab Liebherr R 906 Classic Facelift 2015 Operators Manual – Factory Specs. And for larger loaders, Liebherr L580 Operators Manual – Factory OEM Documentation covers the powertrain.

Outside this family, if you’re dealing with a Manual Transmission, you’ll need a separate factory book — don’t mix engine and transmission specs. Same goes for Manual Transmission on older machines; get the right OEM doc.

FAQ

Will this manual work for serial numbers before 2000010000?

This edition is valid from serial number 2000010000. Earlier engines may have different electronic control configurations. Check your plate.

Does it include wiring diagrams for the D924 TI-E?

No. This is an operators manual, not a service manual. It covers operation, safety, and daily maintenance. For wiring schematics, you need the workshop manual.

How do I find the torque for the injection pump drive?

Look in the technical data section. The manual lists tightening torques for select fasteners, but not every bolt. For full specs, get the factory repair manual.

Can I use this for the D926 T-E without the TI-E version?

Yes. The manual covers both D924 and D926 families, both T-E and TI-E variants. Differences are noted in the model description chapter.

Stop wasting time with photocopies that blur the critical warnings. Get the original factory file from Liebherr. Access the Factory Manual from AutoRepairManuals and keep it on your tablet in the shop. Your hands — and your engine — will thank you.
