Kubota OC60-E3, OC95-E3 Technical Manual – 13 Pages of Factory Specs You Can Trust

If you’re tearing into a Kubota OC60-E3 or OC95-E3 and reaching for a third-party spec sheet, stop. I’ve seen more than one rebuild go sideways because a home-garage guy trusted a generic chart for valve clearance or something as simple as the rocker arm bore diameter. This 13-page Technical Manual from Kubota gives you the numbers straight from the factory – nothing filtered, nothing guessed. Page 1 alone has compression pressure (498–568 psi), oil capacity (1.4 U.S. qts for the OC60-E3), and cylinder head flatness tolerances you absolutely need before tightening down. Skip that and you’re buying a new head gasket in 500 hours.

Servicing Specifications: Engine and Valve Train Data

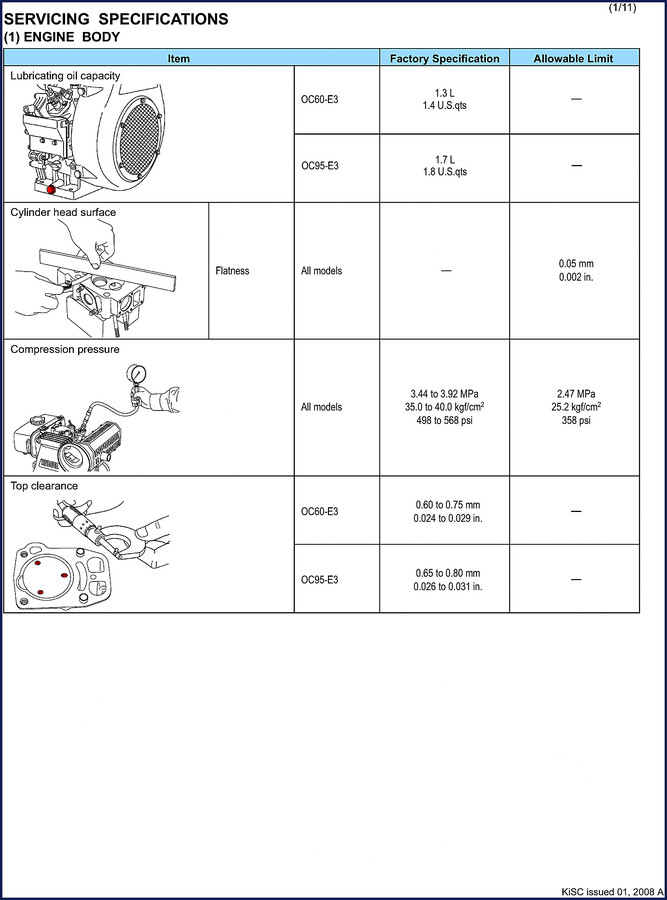

The OCR excerpt from this manual starts with the engine body specs. Factory compression pressure for the OC60-E3 is 3.44 to 3.92 MPa (498–568 psi) and the allowable limit is 2.47 MPa (358 psi). That’s on page 1. Top clearance? 0.60 to 0.75 mm for the OC60-E3, 0.65 to 0.80 mm for the OC95-E3. Cylinder head surface flatness must be within 0.05 mm. These are the numbers that keep the combustion chamber sealed. If you’re assembling an engine without verifying these, you’re gambling with a $2,000 block.

Valve Clearances and Timing – What the Manual Shows

Valve timing specs are on page 2. Intake valve opens 20° before TDC, closes 49° after BDC. Exhaust opens 54° before BDC, closes 15° after TDC. Those angles are given in both radians and degrees – Kubota gives you both, so you can confirm with your timing wheel. Cold valve clearance is 0.14–0.18 mm (0.0056–0.0070 in.) for all models. That’s not a suggestion; that’s the gap that keeps the cam from hammering the lifter. Also listed: valve stem O.D. (OC60-E3: 5.968–5.980 mm, OC95-E3: 7.010–7.025 mm) and guide I.D.. You’ll need those when ordering oversize valves.

Tightening Torques – The Section You Can’t Skip

The manual has a dedicated TIGHTENING TORQUES section. I don’t have the exact values in front of me – the OCR cut off – but Kubota doesn’t list torques for decoration. Every fastener on these engines gets a specific number, and that number is not interchangeable with a generic “good-n-tight.” If you’re reassembling the cylinder head or the balancer gear, this section is where you live. Trusting a forum post over the factory manual is how bolts strip and bearings seize.

13 Pages – Why That’s Enough for a Service Specs Manual

This is not a full-service manual with exploded diagrams and removal procedures. What it is: a dense collection of every critical spec you need to measure, set, and verify. Rocker arm shaft O.D. and I.D. (page 3), tappet guide bore dimensions, timing gear backlash (0.033–0.175 mm for crank to cam). All models covered. The 13 pages are packed with numbers – no filler, no marketing. If you’re used to aftermarket manuals that pad with generic photos, this will feel lean. That’s because it’s real OEM data, not a reprint.

Who Should Buy This Manual

Home garage guys overhauling a walk-behind trencher or a generator powered by a Kubota OC60-E3 or OC95-E3. Small engine repair shops that see these engines in construction equipment. Anyone who needs to replace a cylinder head, check valve timing, or verify clearances before buttoning up. The manual doesn’t teach you how to pull the engine – it assumes you know that part. What it gives you is the assurance that your measurements match the factory’s. If you’re working on a related machine, you may also need the Kubota RTV900G, RTV900W, RTV900R, RTV900W EC, RTV900 EC 2006 Technical Manual for the chassis side, or the Kubota B21, B2320, B2620, B2920 Technical Manual – 292-Page Factory Service Manu for a complete tractor overhaul. For the engine-only job, this specs manual is the missing piece. And for understanding how the engine output connects to the drivetrain, see the Manual Transmission basics on Wikipedia – though that’s general knowledge, not factory data.

Frequently Asked Questions

Does this manual cover disassembly and reassembly procedures?

No – it’s specifications only. No step-by-step removal or installation instructions. But it includes every critical number you need during assembly.

What years are covered?

The manual was issued in January 2008 per the OCR stamp (KiSC issued 01, 2008 A). It covers the OC60-E3 and OC95-E3 engine models up to that date. There are no later revisions shown in the file, but these engine designs remained stable for years. The specs are still valid for any unit that hasn’t been modified.

Are torque values given in both metric and imperial?

Yes. The manual presents values in N·m, kgf·cm, and foot-pounds where applicable. For example, compression pressure appears in MPa, kgf/cm², and psi. The TIGHTENING TORQUES section follows the same triple-unit format. You can work with whatever tools you have.

Can I use this manual for other Kubota engine models?

No – this manual is specific to the OC60-E3 and OC95-E3 only. Different models have different tolerances, and mixing specs will cause failure. For other Kubota engines, look for their dedicated technical manuals, such as the Kubota STV32 STV36 STV40 2006 Technical Manual – Flat Rate Schedule for those utility vehicles.

This is the exact same data Kubota dealerships pay for. You don’t need to guess clearances or hope the aftermarket chart is right – the factory put it on paper. The Manual Transmission link is just a refresher on gear basics; the real value is in these 13 pages. Stop wasting time with photocopies. Access the Factory Manual and get back to measuring.
