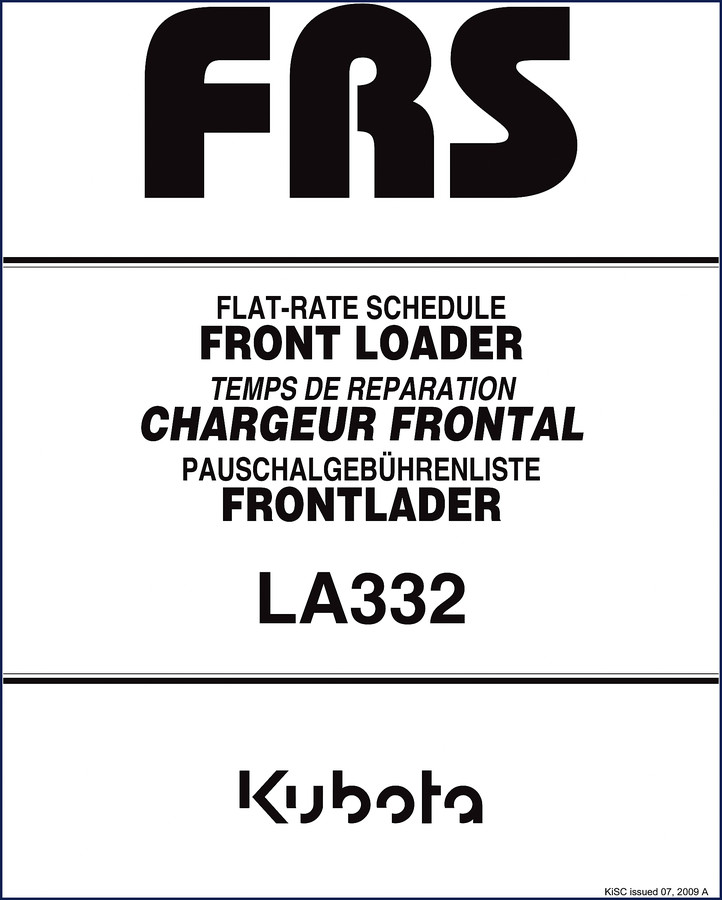

Kubota LA332 2009 Technical Manual

I’ve been a mechanic long enough to know that flat-rate schedules are either your best friend or the reason you’re eating ramen. This Kubota LA332 2009 Technical Manual is the factory-issued schedule for the LA332 front loader. 24 pages of time codes and exploded views. If you’re doing warranty work or quoting a repair, this is the document that backs up your hours. No guesswork.

Flat-Rate Schedule: What You Get in 24 Pages

This isn’t a full service manual—it’s the flat-rate schedule Kubota expects its dealers to use. Page 2 of the 2009 manual explains the purpose: to provide standard operation times needed for individual servicing jobs. The times are listed in tenths of an hour, based on a mechanic with average ability, proper tools, and a flat concrete floor with hoist. You get job code numbers, exploded illustrations, and separate sections for maintenance, diagnosis (electrical and hydraulics), and the loader group itself. For warranty adjustments or cost estimates, this is the only reference Kubota accepts.

Electrical and Hydraulics Diagnosis – What’s Covered?

The TOC lists a [UFMs] Diagnosis Group for electrical and hydraulics. While the manual doesn’t include wiring diagrams or hydraulic schematics, it does give you the standard operation time for diagnostic work on those systems. If you’re chasing a short or a leaking cylinder, you charge the time shown here. No more guessing how long it takes to probe a harness—the factory says 0.5 hours (or whatever the code reads).

3 Reasons to Use OEM Kubota Documentation

• Flat-rate times are accepted without question by Kubota warranty adjusters. Upload a claim with the job code from this manual and you’re done.
• Exploded illustrations show exactly which parts are included in each job. No overlap, no double billing.
• The schedule is built from real-world shop data—not a generic estimator. It includes time for diagnosis, parts retrieval, and cleaning.

Understand the Foreword Before You Dig In

Page 2 of the manual (the FOREWORD) states that each job description covers all work required to restore the unit to operating condition, including cleaning, adjustment, and inspection. Crucially, it warns against combining individual job codes for overlapping work—use the assembly overhaul code instead. For example, overhauling the entire loader arm has one code; don’t add up separate pin or seal codes. That’ll get your claim kicked back. If you need context on how the loader interacts with the drivetrain, read the Manual Transmission basics first.

Loader Group Disassembly: Time Estimates You Can Trust

The [UFQd] Loader Group section takes up most of the 24 pages. Each subassembly—bucket, boom, cylinders, mounting brackets—has its own job code and time. The exploded drawings make it dead simple to identify the part and the scope of work. For additional powertrain context, see Manual Transmission. This manual is your citable evidence when the customer or warranty office questions your labor charge.

Hard Numbers You Can Cite

Job code numbers are printed directly on the exploded views. The standard operation time appears in the table next to each code. Times are in tenths of an hour, so 0.5 means 30 minutes. The schedule also includes a flat-rate report at the end with totals. Keep this PDF on your tablet or print it out—it’s 24 pages, easy to flip through.

Frequently Asked Questions

What does the Kubota LA332 2009 Technical Manual include?

It includes the factory flat-rate schedule with job codes, standard operation times in tenths of an hour, and exploded views of the loader group, electrical/hydraulic diagnosis group, and maintenance service group. 24 pages total, published in 2009.

Is this a full service manual with repair procedures?

No. This is a flat-rate schedule only.

How do I use the job code numbers?

Each job code corresponds to a specific repair operation shown in the exploded illustration. Write the code on your warranty claim form. The standard time is listed alongside. Do not combine multiple partial codes for one job – pick the assembly overhaul code. For example, if you’re replacing the entire loader arm, use the main code, not separate codes for pins, seals, and hoses. That would double-dip and the warranty adjuster will reject it.

Does this manual cover electrical troubleshooting?

Yes – the diagnosis group includes electrical and hydraulics time allowances. However, it does not provide wiring diagrams. It tells you how many tenths to charge for electrical diagnosis work.
