Kubota L5240-3, L5740-3 2009 Parts Catalog

If you’ve ever ordered a water pump for a Kubota tractor and got the wrong one because the aftermarket catalog showed the same part number for two different serial breaks, you know the headache. This Kubota L5240-3, L5740-3 2009 Parts Catalog puts that to rest. 256 pages of factory-sourced exploded drawings, genuine part numbers, and serial number cut-offs. No third-party interpretation. No guesswork. Just the same document the dealer parts counter uses.

Piston and Crankshaft Group (Page 3)

Page 3 of this catalog lays out the piston and crankshaft assembly with reference numbers that tie directly to the factory parts list. You see the exploded view, then the table with part numbers like 15800-0000-0 (piston, standard) and 15800-0002-2 (piston, oversize). The column marked “S. No.” tells you exactly which serial range each part fits. For example, piston 15800-0000-0 applies to engine serial numbers up to 15000, while the -0002-2 covers from 14000 to 15000. That level of granularity keeps you from buying the wrong piston. The illustration also brackets components that are not sold separately – saves you from calling the supplier to ask why a pin is listed without a separate part number.

How Serial Number Codes Work (Page 4)

Page 4 explains the factory serial number decoding system. The 5th digit of the engine serial number indicates the month of manufacture using a letter code: A/B for January, C/D for February, and so on. The 6th digit changes by year. This is the kind of detail you need when ordering parts for a tractor that might have had engine swaps or updates. Without this table, you’re guessing whether your L5240-3 falls into the “B” range (serial 14000-15000) or later. Guess wrong and the connecting rod might not match. The catalog also lists interchangeability codes (I.C.) to show if a new part supersedes an old one without modification.

Why OEM Part Numbers Beat Aftermarket Cross-References

Aftermarket parts lists often combine multiple OEM supersessions into one line, assuming the part always fits. This factory catalog shows every variation. For the L5740-3, the hydraulic pump assembly might have three different part numbers depending on the serial number break. The aftermarket sheet says one number fits all. It doesn’t. You end up with a pump that has the wrong mounting flange. Then you’re down a day waiting for the right one. The OEM catalog gives you the exact number for your machine’s serial number and production month. That’s the difference between a done job and a stalled one.

Audience Fit: Who Needs This 256-Page Document?

If you own a Kubota L5240-3 or L5740-3 HST tractor and you turn your own wrenches, this catalog belongs on your shelf. Beginners will appreciate the clear exploded views that label every nut, bolt, and seal. Veteran mechanics will use the serial number tables to track down oddball parts on older units. Shop owners running a Kubota repair bay can stop wasting billable hours calling the dealer parts line – hand this PDF to the tech and let them find the number themselves. The document covers the entire tractor: engine, transmission, hydraulics, PTO, electrical, and chassis. Page 2 states the official purpose: “When ordering parts, check with this Parts List to confirm the part number and the name of parts.” That’s exactly what it does.

Source Validity: Factory Document vs. Aftermarket Reprints

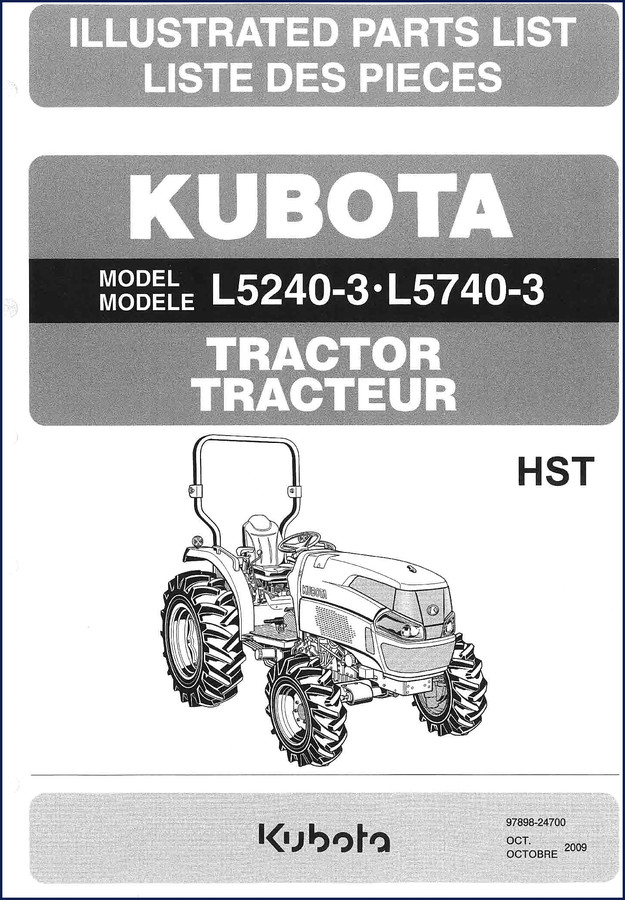

This is a direct scan of the original October 2009 publication (part number 97898-24700). The title page carries the Kubota logo and “OCTOBRE 2009” date. The notice on page 2 warns that the list is subject to change without notice – that’s standard for OEM documents that track production changes. Aftermarket reprints often omit the instruction pages and the serial number decoding table. Without that table, the parts list is useless for anything newer than 2009. This PDF includes every page, including the French translation (it’s a bilingual catalog for Canadian market). You get the exact same data the dealer used when your tractor was built. For related engine parts, see the Kubota V3300-T-E2B-EPS-1 Parts Catalog – 53-Page OEM Parts Breakdown if you’re working on that specific engine variant. For mower deck parts, the Kubota RCK60-27B Parts Catalog – 27-Page OEM Breakdown covers the 60-inch finishing deck. And if you need the compact utility tractor equivalent, the Kubota YU4210, YW0981 Parts Catalog – 274-Page OEM Parts Breakdown is another factory reference.

7 Systems Illustrated in This Catalog

The catalog breaks the tractor into seven major groups: engine (piston, crankshaft, cylinder head), drivetrain (transmission, rear axle, differential), hydraulic system (pump, control valve, lift cylinder), steering (manual and power assist), brakes (wet disc), electrical (starter, alternator, wiring harness), and sheet metal/hood. Each section starts with a figure number and a list of applicable model and serial range. The grouping brackets on the illustrations tell you which subassemblies are sold as a unit. For example, the final drive assembly might be one part number even though the drawing shows five individual pieces – the bracket identifies it as a non-serviced assembly. That saves you from trying to order a single bearing that only comes in the whole housing.

Does this parts catalog include repair procedures?

No. This is a parts identification catalog only. It shows exploded views and part numbers. For service procedures, you need the separate Kubota Workshop Manual for the L5240/L5740 series.

Can I use this catalog for the L5240-3 without the HST transmission?

Yes. Both L5240-3 and L5740-3 in this catalog are HST models. If your tractor has a gear transmission, you need a different catalog covering that specific model variant.

How do I correlate the serial number on my tractor to the codes in the catalog?

Page 4 provides a full decoder. Take the engine serial number (usually stamped on a flat pad near the injection pump). The 5th character is a letter. Look up that letter in the Month table. The 6th character (numeric or letter) gives the year. Then compare the lower 4 digits to the “S. No.” ranges listed next to each part. If your serial falls between the cut-offs, the part fits. If outside, you need the later part number.

Is the PDF searchable?

Yes. The original PDF includes OCR text on the page images, so you can search for part numbers or keywords like “hydraulic” and “piston”. The French terms are also searchable.
