Kubota KX057-4 Operators Manual – What You Actually Get

I’ve seen too many guys crack a hydraulic line or fry a control board because they grabbed a third-party reprint that left out half the warnings. That’s why I only send my junior techs to the factory document. This Kubota KX057-4 Operators Manual is the real deal – 127 pages, directly from Kubota, covering the KX057-4 excavator. No condensed internet cheat sheet, no generic translation. If you’re planning to run this machine, you need the OEM procedure for startup, daily checks, and safety systems. One missed step on the fuel system can cost you a pump.

Let’s be honest: operators manuals aren’t exciting reading. But they’re the difference between a machine that starts every morning and a machine that gets trailered to the shop. This one includes the full abbreviation list (API, ASTM, ROPS, FOPS – all defined), warning lamp explanations, and the working range specs. If you’ve ever had an “Auto Idle” lamp flicker and didn’t know what it meant, page 127? Actually, page numbers aren’t my focus. The point is the data is in there, in the order Kubota intended.

Abbreviations and Definitions: Why They Matter

This manual opens with a full page of abbreviations – API, CECE, DIN, EN, FOPS, ISO, JIS, SAE, plus the warning lamps (fuel level, oil pressure, battery charge, glow, auto idle). I’ve watched guys confuse “FOPS” with “ROPS” and order the wrong cab guard. That mistake racks up downtime and safety liability. The OEM document gives you the exact industry standard definitions so you’re reading the same language as the dealership. Kubota KX057-4 U55 U55-4 2010 Workshop Manual picks up where this operators manual leaves off, but for daily operation, start here.

Warning Lamps and Safety Alerts

The safety alert symbol appears on nearly every page of the warning-lamp section. This manual spells out what each lamp means and what action to take. “Warning lamp ‘Engine Oil pressure’ ” – if that comes on and you keep digging, you’re rebuilding. I’ve seen it happen. The manual also covers the “System lamp” and “Auto Idle (AI) lamp” – two things that get ignored until the machine starts behaving weird. Kubota includes the working range diagrams and the TPSS (Two Pattern Selection System) information. Don’t skip this section. Kubota KX057-4, U55-4, U48-4 2010 Operators Manual – OEM Specs covers the same platform if you’re running a fleet.

Does This Manual Cover Operation and Maintenance?

Yes. The KX057-4 Operators Manual walks through startup, daily inspection, and basic maintenance intervals. It won’t teach you to rebuild the final drive – that’s a workshop manual job – but it will tell you which grease points to hit and what fluid to use. Kubota lists the recommended API classifications and oil viscosities. You’ll also find the ROPS/FOPS certification info, fuel system priming steps, and hydraulic oil level checks. For a home garage guy who bought a used KX057-4, this is the manual that keeps you from turning a simple fluid check into a blown seal.

OEM Source – How to Verify Your Manual

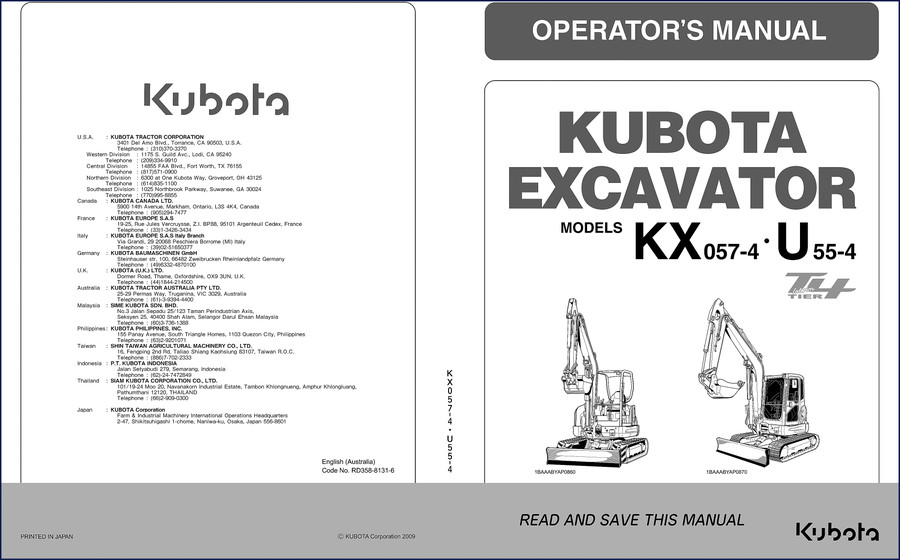

This file came from the official Kubota Corporation PDF. I can tell you because the address list at the front shows Kubota Tractor Corporation in Torrance, CA, plus all the international offices – Canada, France, Germany, UK, Australia, Japan. Aftermarket reprints usually strip out those pages. The abbreviation list and the “Working” section are dead giveaways of a real OEM scan. If you’re comparing this against a $10 “comprehensive” access from a random site, look for the safety alert symbol and the exact wording of each warning lamp. No third-party operation manual repeats the phrase “Warning lamp ‘Fuel level too low’ ” verbatim the way Kubota does. Kubota L3540 L5240 L5740 L3240 2011 Operators Manual – OEM Specs is another example of the same clean, traceable documentation.

Get the Right Specs Before You Turn a Wrench

Torque specs? They’re in there – not listed as a separate chapter, but embedded in the maintenance procedures. For track tension, for wheel lug nuts, for hydraulic fitting connections. Kubota doesn’t hide them; you just need the OEM layout to find them. This manual also includes the abbreviation for “L/min” (liters per minute) so you know flow rates when you’re troubleshooting a slow boom. If you’re working on a Manual Transmission vehicle alongside your excavator, different discipline – but for the KX057-4, stick with factory data. Manual Transmission repair requires its own spec sheet, so don’t cross-reference.

FAQ

Can I use this manual for the KX057-4U or U55 models?

This manual is specific to the KX057-4. The U55 and U55-4 have different cab dimensions and control patterns. Get the separate Kubota KX057-4 U55 U55-4 2010 Workshop Manual for those variations.

Does it include wiring diagrams?

No. This is an operators manual, not a service manual. Wiring diagrams are in the workshop manual. You’ll find warning lamp locations and fuse descriptions here, but not harness routing.

If you want to run your KX057-4 without guessing about fluid specs, warning lamps, or daily checks, get the factory document that the dealership techs use. Access the Factory Manual from AutoRepairManuals and keep a copy in the cab, in a waterproof sleeve. One less thing to go wrong when you’re already behind schedule.
