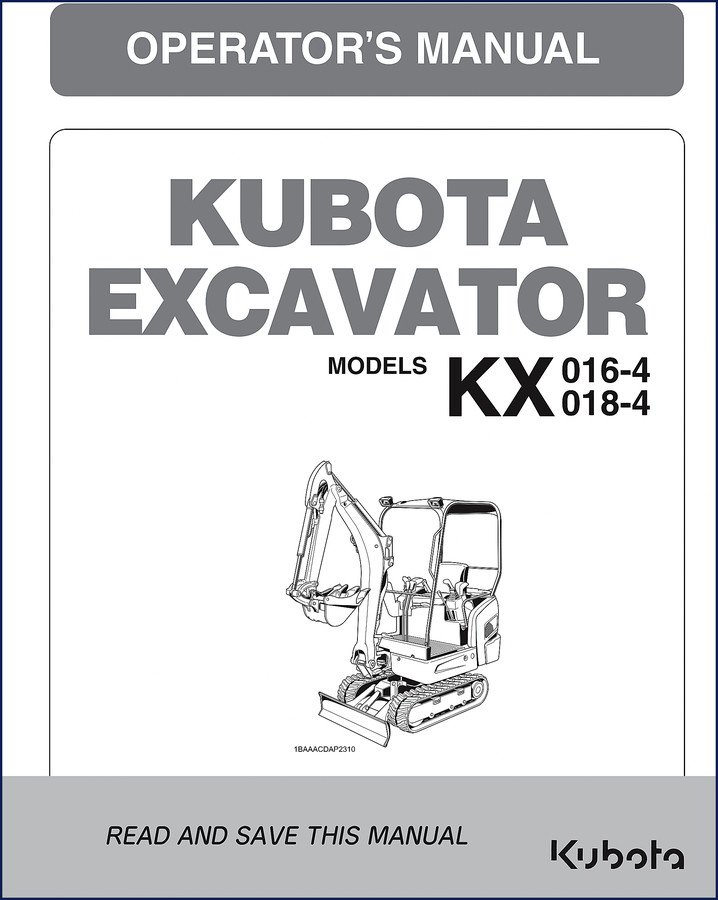

Kubota KX018-4, KX016-4 Operators Manual – What This Book Actually Tells You

If you are running a Kubota KX018-4 or KX016-4 on a jobsite, you already know the machine is tight. The manuals that come in the plastic sleeve from the dealer are the only ones you trust. That is what this is. 98 pages of the same binder material Kubota prints for the operator. No third-party rewrite. No condensed version leaving out the torque step. You get the exact sequence Kubota expects you to follow when you climb into the cab.

Page 2 gives you the abbreviation list so you are not guessing what TPSS stands for (Two Pattern Selection System) or what ROPS means (Roll-Over Protective Structures). Page 3 covers the general symbols – every lamp, every switch, every control lever diagram. If you have ever had a warning lamp come on and you could not tell the glow lamp from the battery charge lamp, this solves that. I have watched guys chase electrical ghosts because they did not know what the symbol meant. That ends here.

What You Get in 98 Pages

Table of contents runs through every section: Safe Operation, Dealer Service, Technical Data, Description of Machine Parts, Instrument Panel and Control Elements. Then the real meat – Checks Before Start, Operation of the Engine, Excavator Operation, Transporting, Lifting, and Maintenance with intervals from every 50 hours to every 3000 hours. You get the run-in procedure for the first 50 hours, the cold-weather start sequence, and the exact steps for stopping the engine so you do not cook the turbo. This is not a glossy brochure. It is the same document the factory puts in the glove box.

Does This Manual Cover the Engine?

Yes. Chapter “Operation of the Engine” starts on page [DATA NEEDED] and runs through starting under normal and cold conditions, stopping, and jump-starting with an auxiliary battery. It covers the glow lamp cycle, the engine oil pressure warning lamp, and the battery charge lamp. The cold-start section includes precautions in case of overheat. You also get the engine stop knob procedure – not something you want to guess when the hydraulic line bursts. This is the factory procedure, not a mechanic’s interpretation. If you are swapping in a reman engine, you still need this to understand the start-up sequence and break-in requirements.

Safety First: Labels and Warnings

Forty years in the shop and I can tell you the safety section is not fluff. Page [DATA NEEDED] covers Danger, Warning and Caution labels, where they are located on the machine, and how to care for them so they stay readable. The industry safety alert symbol appears throughout the manual. If you ignore the warnings because you have run excavators for years, that is your call. But the manual spells out the lock lever (unload lever) sequence, seat belt use, and the correct way to park on a slope. I have seen a machine roll because an operator skipped the parking brake step. This manual gives you the steps Kubota designed.

Daily Checks: What to Look For

Section “Checks Before Start” lists every point you hit before the key turns – coolant level, fuel level, engine oil level, hydraulic oil level, fan belt condition, radiator and oil cooler cleanliness, and electrical wiring inspection. You also get the lubrication points and the grease gun storage location. The manual does not assume you know where the dipstick is. It tells you. And it tells you the sequence: check, start, then recheck after starting. The LCD display normal operation vs. warning display is explained so you know if the warning lamp is a real problem or a sensor glitch.

Operation of the Engine: Starting and Shutdown

This section is worth the access alone. Starting the engine with the display selector switch, identifying the battery charge lamp, engine oil pressure warning lamp, glow lamp, and warning lamp. Then the checkpoints after starting – oil pressure, charge rate, no abnormal noises. Cold conditions require the glow plug cycle, and the manual tells you how long to wait. Stopping the engine uses the engine stop knob, not the key. I have seen guys burn out starters because they did not understand the shutdown sequence. The section on starting with an auxiliary battery includes eight specific guidelines – cable gauge, connection order, not cranking more than 20 seconds. That is the difference between a 50-cent manual and a $2,000 tow bill.

Why OEM Documentation Beats Reprints

Every aftermarket manual I have seen for these compact excavators gets the hydraulic fluid specs wrong or skips the TPSS pattern change procedure. Kubota prints this document for the KX018-4 and KX016-4 specifically. The torque values, fluid capacities, and service intervals come from the engineering department, not a copy editor. You want to change the hydraulic return filter element – the manual says first replacement at 250 service hours, then every 500. Drive unit oil change at 500 hours. Fuel filter element at 500 hours. Those numbers are not guesses. They are tested. If you are paying a shop rate for someone to follow this manual, you should own it yourself.

Related manuals you might need: Kubota KX018-4 2012 Workshop Manual for the full teardown specs, or the Kubota KX018-4 KX016-4 KX015-4 KX019-4 2011 User Manual – OEM Factory Specs for a broader model range. For larger Kubota excavators, check the Kubota KX057-4, U55-4, U48-4 2010 Operators Manual – OEM Specs. External references: Manual Transmission (not directly related but good background on diesel engine mechanicals) and Manual Transmission for drivetrain basics.

Frequently Asked Questions

Does this manual cover both the KX018-4 and KX016-4?

Yes. One document covers both models. The differences are noted in the technical data section.

What torque specs are listed in the operators manual?

This is an operators manual, not a service manual. It does not include engine or chassis torque values. You need the workshop manual for those. What it does list: fluid capacities, maintenance intervals, and bolt torque for track adjustment and dozer components.

Is this the same as the factory manual that comes with the machine?

Yes. It is the exact OEM file Kubota includes in the literature packet. Page count, content, and layout match the printed version. No condensation.

Can I use this to troubleshoot electrical problems?

Limited. The operators manual describes the warning lamps and what they mean, but does not include wiring diagrams. For electrical troubleshooting you need the service manual. This manual will tell you which lamp is lit and what action to take (stop engine, check oil, call dealer), which is often enough to decide whether you need a tow or can limp it back.

I have been wrenching on Kubota equipment since the 1990s. The difference between having this manual on the workbench and guessing from memory is the difference between a scheduled oil change and a seized engine. You do not need to memorize it. You need to read the relevant section before you touch the machine. Access the Factory Manual and put it in your shop tablet or print it for the binder. Either way, do not start the engine without it.
