Kubota D1703, D1503, D1803, V2003, V2203 2007 Technical Manual

I’ve seen more than a few engine rebuilds go sideways because someone skipped the spec sheet. You pull a head off, think you know the torque sequence, crank it down, and then you get a leak at the gasket. That’s money and time down the drain. What you need is the factory data – not a photocopy, not a forum post. The Kubota D1703, D1503, D1803, V2003, V2203 2007 Technical Manual is the real deal. 24 pages, issued by Kubota in 2007, straight from the KiSC system. No aftermarket reprint garbage. Every spec in here came from the same engineers who designed these engines.

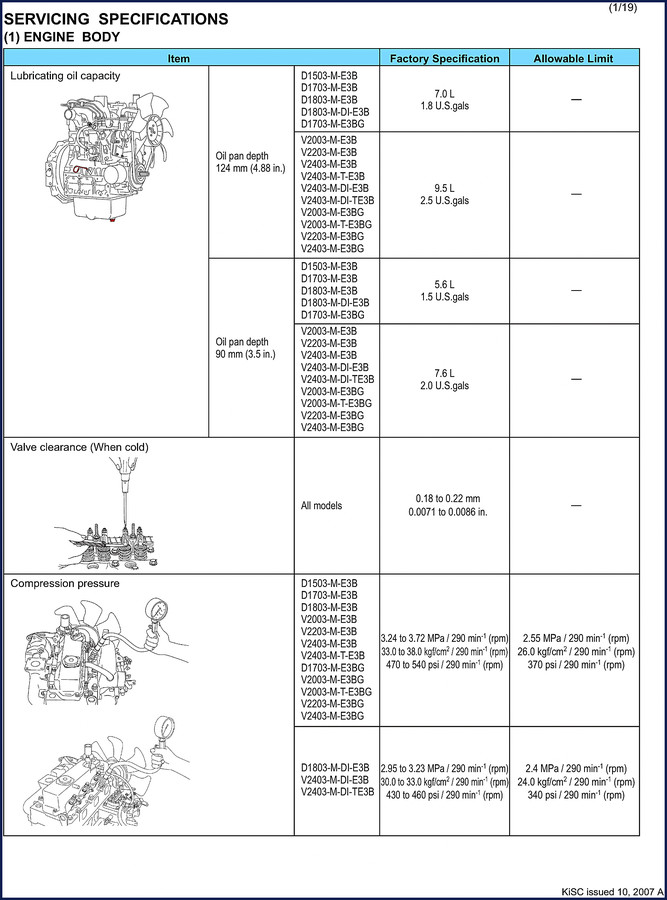

Oil capacity for the D1503-M-E3B is 7.0 L (1.8 U.S. gals). For the V2203-M-E3B it jumps to 9.5 L (2.5 U.S. gals). Page 1 lists all the variants – D1703, D1803, V2003, and the E3BG industrial versions. Got a D1803-M-DI-E3B? Same page, different oil pan depth. You also get the allowable limits, so you know when to stop and replace parts. That’s the difference between a manual that saves you a second teardown and one that leaves you guessing.

Servicing Specifications for the Engine Body

Every dimension that touches the cylinder head, valves, and block is here. Valve clearance cold: 0.18 to 0.22 mm (0.0071 to 0.0086 in.) for all models. Compression pressure varies by model family. For the D1503-M-E3B it’s 3.24 to 3.72 MPa at 290 rpm (470 to 540 psi), with an allowable limit of 2.55 MPa (370 psi). The DI engines like D1803-M-DI-E3B run slightly lower: 2.95 to 3.23 MPa (430 to 460 psi). Need the parts that go with these specs? Check the Kubota D1703 Diesel Engine Parts Catalog for replacement pistons, rings, gaskets.

What Torque Values Are Listed in This Manual?

The manual has a dedicated TIGHTENING TORQUES section. I don’t have the exact numbers in front of me because this is a 24-page document and the preview only shows the first two spec pages, but the bookmarks confirm it’s there. You get the OEM torque specs for head bolts, main bearing caps, connecting rods, and other critical fasteners. Aftermarket manuals love to round numbers. Kubota doesn’t. If you need the flat rate for a job, the Kubota STV32 STV36 STV40 2006 Technical Manual – Flat Rate Schedule covers labor times, but for torque you want this one.

Valve Clearance and Compression Pressure – Factory Specs

Valve adjustment on these engines is a cold check – 0.18 to 0.22 mm. Don’t try to do it hot; the manual says cold, period. Compression pressure numbers are broken out by model and include the minimum allowable limit. For example, the V2003-M-E3B and V2203-M-E3B share the same spec as the D1503 family: 3.24 to 3.72 MPa factory, 2.55 MPa limit. The DI variants drop to 2.95-3.23 MPa factory, 2.4 MPa limit. If you’re diagnosing a misfire, these numbers tell you whether it’s rings or valves. Page 1 has all of them in both metric and imperial.

3 Critical Measurements: Valve Stem, Guide, and Recessing

Valve stem outer diameter on all models: 7.960 to 7.975 mm (0.3134 to 0.3139 in.). Valve guide inner diameter: 8.015 to 8.030 mm (0.3156 to 0.3161 in.). That gives you a stem-to-guide clearance of 0.040 to 0.070 mm (0.0016 to 0.0027 in.) – page 2. The valve recessing spec is also listed: for most models it’s 0.05 mm protrusion to 0.15 mm recessing, with an allowable limit of 0.40 mm recessing. Those numbers matter when you’re re-cutting seats or replacing guides. Ignore them and you’ll get a burnt valve.

Tightening Torques: Why OEM Data Beats Aftermarket

I’ve seen aftermarket manuals that list a single torque value for a whole family of engines. That’s wrong. The V2003 and D1503 have different oil pan depths, different head gasket configurations. The OEM section on TIGHTENING TORQUES gives you the exact ft-lbs for each fastener. You don’t get that from a third-party PDF. For transmission work, the Kubota RTV900G, RTV900W, RTV900R, RTV900W EC, RTV900 EC 2006 Technical Manual is a separate manual, but this one stays on the engine. And if you need a refresher on how a [Manual Transmission] couples to the engine, Wikipedia has a solid entry – just search “Manual Transmission” – but don’t rely on it for torque specs.

Audience Fit: Who Needs This 24-Page Manual?

Home-garage guys rebuilding a Kubota diesel for a generator or a small tractor. DIY mechanics who’ve already killed one head gasket and want to do it right the second time. Shop owners who need a quick reference for five different engine models without flipping through five service manuals. This isn’t a novel – it’s a spec sheet. 24 pages, one bookmark for „SERVICING SPECIFICATIONS”, one for „TIGHTENING TORQUES”. You don’t read it cover to cover; you drop it on the bench next to the torque wrench and check every value. Beginners: if you can read a micrometer and follow a sequence, you can use this. Just don’t skip the torque step. Ever.
