Kubota D1503-M-DI-EB, D1803-M-DI-EB, V2203-M-DI-EB, V2403-M-DI-EB 2007 Technical Manual

I’ve lost count of how many times a junior tech has brought me a torque wrench with a number pulled off some forum. Then they wonder why the head gasket leaks. If you’re working on a Kubota D1503-M-DI-EB, D1803-M-DI-EB, V2203-M-DI-EB, or V2403-M-DI-EB engine and you don’t have the factory specs from Kubota itself, you’re gambling with your customer’s downtime and your own reputation. This 2007 Technical Manual is the real deal – 17 pages of what Kubota wrote for their technicians. No reprints, no aftermarket guesswork. Just the numbers that keep these engines running at rated output.

SERVICING SPECIFICATIONS: Engine Body Data That Saves You Re-Runs

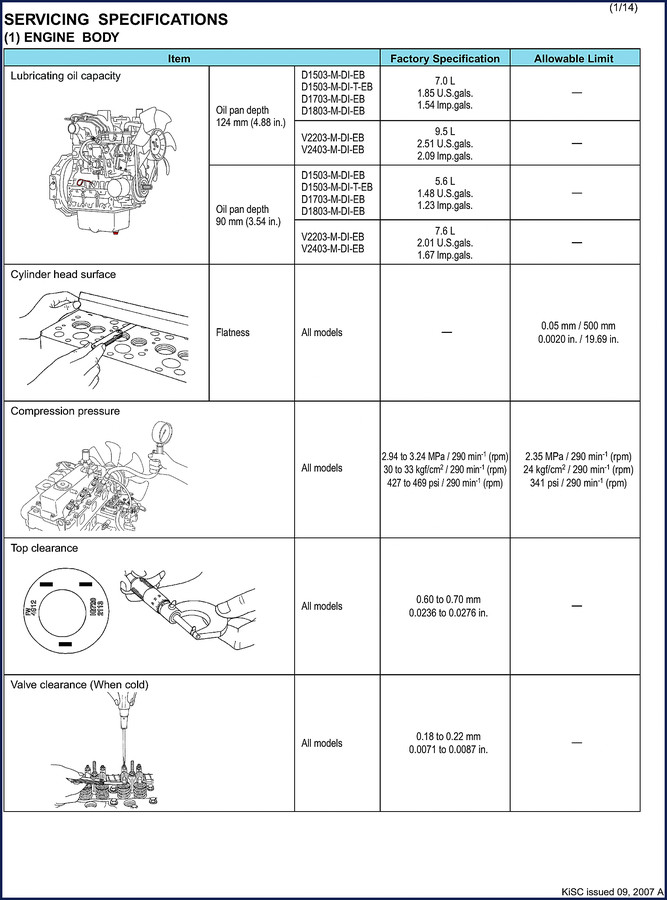

Page 1 lays out the lubricating oil capacity by oil pan depth. For the D1503-M-DI-EB and D1803-M-DI-EB, a 124 mm pan holds 7.0 L (1.85 U.S. gal). The V2203-M-DI-EB and V2403-M-DI-EB take 9.5 L (2.51 U.S. gal) with the same depth. Drop to a 90 mm pan and those numbers shrink to 5.6 L and 7.6 L respectively. Overfill? Underfill? Both wreck oil control. The manual also gives you compression pressure – 2.94–3.24 MPa at 290 rpm, with an allowable limit of 2.35 MPa. If you’re chasing a low-power complaint, that’s your diagnostic target. Top clearance: 0.60–0.70 mm. Valve clearance cold: 0.18–0.22 mm. Those are not suggestions. They are factory requirements for proper valve timing and cylinder sealing.

TIGHTENING TORQUES: Why the Aftermarket Copies Get It Wrong

The second section in this manual is the TIGHTENING TORQUES. I’ve seen three different “universal” charts give three different numbers for the same bolt on these Kubota engines. That’s because aftermarket sources pull numbers from unrelated engines. This manual gives you the exact torque values Kubota engineers assigned to each fastener on the D1503-M-DI-EB family. Page numbers are in the bookmarks – flip to SERVICING SPECIFICATIONS and then TIGHTENING TORQUES. If you’re torquing a connecting rod cap or a cylinder head, you need the number out of this factory book, not a generic table from a parts store wall.

Valve Train Specs: From Stem to Spring

Valve timing is where a lot of DIY guys get lost. The manual lists intake valve opening at 0.16 rad before TDC (9°), closing at 0.79 rad after BDC (45°). Exhaust opens 0.87 rad before BDC (50°) and closes 0.21 rad after TDC (12°). That’s for all models covered. You also get valve stem O.D., guide I.D., clearance limits, and spring free length with setting load. For the V2203-M-DI-EB, the spring free length (A) is 41.2 mm with a tilt (B) limit of 1.0 mm. Setting load at 35.0 mm: 117.6 N intake, 100.0 N exhaust. Check those numbers against the used springs you pulled out – if tilt exceeds spec, replace them before the head goes back on.

Does This Manual Cover the Fuel System?

If you’re expecting injection pump timing data or injector pop pressure, keep looking. This is a servicing specifications document, not a full service manual. It covers engine body, valve train, and tightening torques only. For fuel system repair you’d need the corresponding workshop manual. But for what’s inside these 17 pages – compression specs, clearances, and torque tables – it’s the only source you should trust. Pair it with a Kubota STV32 STV36 STV40 2006 Technical Manual – Flat Rate Schedule if you’re billing flat rate on those models, or the Kubota RTV900G, RTV900W, RTV900R, RTV900W EC, RTV900 EC 2006 Technical Manual for utility vehicle applications. And if you need full coverage on smaller B‑series tractors, check the Kubota B21, B2320, B2620, B2920 Technical Manual – 292-Page Factory Service Manu.

How to Read the Valve Timing Chart

The manual includes a timing diagram with intake opens (I.O.) and closes (I.C.), exhaust opens (E.O.) and closes (E.C.). All angles are in radians and degrees. The intake seat angle is 60° for both intake and exhaust; the seat width (C) spec is 0.016–0.045 mm. If your valve recession is beyond 0.4 mm (exhaust) or 0.1 mm (intake), you need a seat cut. The face angle for intake is 45°, exhaust also 45°. Those numbers match many automotive diesels, but never assume – always verify against the factory table on page 2 of this manual.

Source Validity: 2007 Original Kubota Print

This manual carries the Kubota Industrial Service Code (KISC) stamp from September 2007. It’s a PDF of the original factory document, not a scan of a copy. Every spec line – from valve stem O.D. (7.960–7.975 mm, clearance 0.016–0.045 mm) to the oil capacity tables – came straight from Kubota’s technical department. You won’t find conflicting data between pages because it’s all one authoritative source. Aftermarket manuals combine multiple engines and cross-reference from other brands; this one is model-specific. That’s why you buy a manual like this, not a generic engine rebuilding book.

FAQ

Will this manual tell me how to rebuild the entire engine?

No. This is a servicing specifications document – 17 pages of tolerances, capacities, and torque tables. For a full rebuild procedure you would need the Kubota workshop manual. This covers the critical numbers you must hit during assembly.

Are the torque values in ft-lb or N·m?

The manual lists values in both metric and imperial. For example, the setting load is given as 117.6 N and 26.4 lb. The tightening torque section (not shown in the excerpt) uses similar dual units. Use the appropriate tool and always convert if your wrench reads only one system.

Can I use this for a D1703-M-DI-EB engine?

The table includes the D1703‑M‑DI‑EB in the oil capacity row, but the title covers D1503, D1803, V2203, V2403. If your engine is a D1703, the specs should be the same as the D1503/D1803 family – but double‑check the VIN or serial range. The manual does not explicitly list D1703 in the model header.

What page has the compression specs?

Compression pressure data is on page 1 of the PDF (page 1 of 14 in the scanned file). Factory spec is 2.94–3.24 MPa / 30–33 kgf/cm² / 427–469 psi at 290 rpm. The allowable limit is 2.35 MPa (341 psi). Use those numbers to decide if an engine needs a teardown.

You’ve got the torque, the clearances, and the capacities in one place. Don’t trust a sticky‑note on a toolbox. Access the Factory Manual and put the right number on every bolt. If you work on other Kubota engines, the Manual Transmission section in some of the older manuals might also reference these engine specs – cross‑reference when adjacent components share fasteners. For complete driveline rebuilds, the Manual Transmission chapter in the full workshop manual would be your next stop.
