Kubota D1503-M-DI-E2B, D1803-M-DI-E2B, V2003-M-DI-T-E2B, V2203-M-DI-E2B, V2403-M-DI-E2B 2008 Technical Manual

If you’re rebuilding one of these Kubota diesel engines and you don’t have the factory specs in front of you, you’re gambling with your time and your parts. I’ve seen too many guys pull a cylinder head off a V2203-M-DI-T-E2B, guess at the torque sequence, and end up with a blown head gasket or a warped deck. That’s a $500 mistake minimum. This 17-page technical manual from Kubota, published in 2008, gives you the exact numbers for compression pressure, valve clearance, oil capacity—everything you need to get it right the first time. No reprints, no aftermarket garbage.

SERVICING SPECIFICATIONS: What You Get in 17 Pages

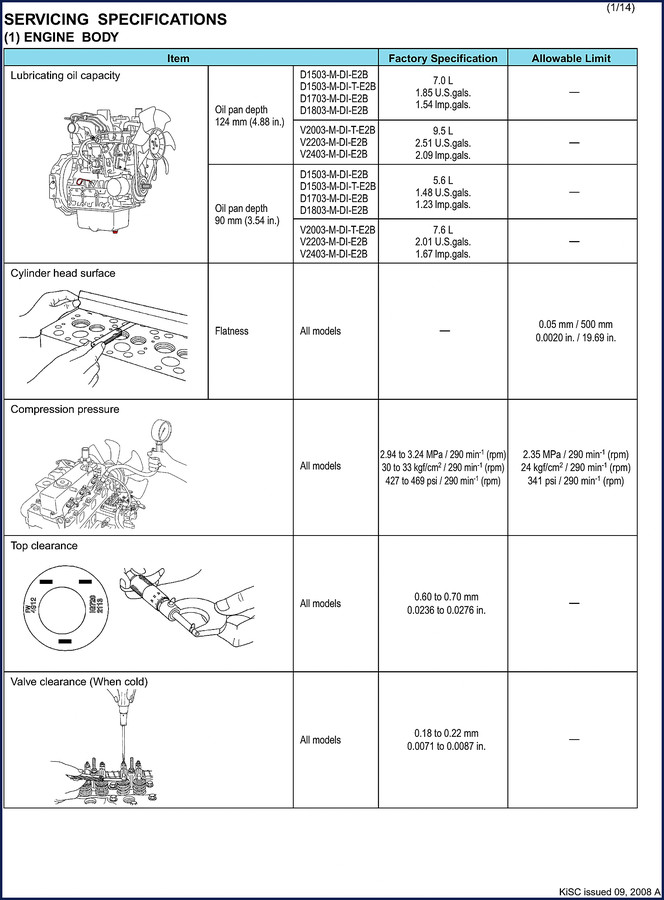

This isn’t a service manual that walks you through tear-down step by step. It’s a spec sheet—the kind you keep on the bench next to your torque wrench. The table starts with lubricating oil capacity: for the D1503-M-DI-E2B and D1803-M-DI-E2B with a 124 mm oil pan depth, it’s 7.0 L (1.85 U.S. gals). For the V2003-M-DI-T-E2B, V2203-M-DI-E2B, and V2403-M-DI-E2B, that jumps to 9.5 L (2.51 U.S. gals). If you have a shallow pan (90 mm depth), subtract accordingly. These are factory numbers—don’t trust a forum post.

Cylinder head flatness limit: 0.05 mm over 500 mm (0.0020 in. over 19.69 in.). Compression pressure for all models: 2.94 to 3.24 MPa at 290 rpm (427 to 469 psi). Allowable limit: 2.35 MPa (341 psi). If you’re getting readings below that, you’re chasing rings or valves. Valve clearance (cold) is 0.18 to 0.22 mm (0.0071 to 0.0087 in.). Top clearance: 0.60 to 0.70 mm (0.0236 to 0.0276 in.). These aren’t suggestions—they’re the reason your engine runs or doesn’t.

TIGHTENING TORQUES: Why You Need the Factory Numbers

The PDF bookmarks list only two sections: SERVICING SPECIFICATIONS and TIGHTENING TORQUES. That second section is where most DIY guys get burned. Aftermarket manuals often round torque values to the nearest standard bolt spec, but Kubota uses specific values for head bolts, main bearing caps, and connecting rods. One wrong click on a 1/2-inch drive and you’ve stripped an M10 in an aluminum block. The torque chart in this manual gives you the numbers in N·m and kgf·m—convert to ft-lb if you prefer, but use their values. If you need a reference on how a manual transmission shares similar torque considerations, check the Manual Transmission article on Wikipedia for background on bolt loading in powertrains.

Which Models Does This Cover?

Five engines, all 03-M-DI series: D1503-M-DI-E2B, D1803-M-DI-E2B, V2003-M-DI-T-E2B (turbo), V2203-M-DI-E2B, and V2403-M-DI-E2B. If you’re working on a D1703-M-DI-E2B, it’s also listed in the oil capacity table, but the main spec table covers all variants. This manual is for 2008 model year, but the specs carry forward to later years until Kubota changed the block. Check your engine serial number.

Engine Body Specs: Valve Timing and Recessing Data

The OCR data shows valve timing angles: intake opens 0.16 rad before TDC (9°), closes 0.79 rad after BDC (45°). Exhaust opens 0.87 rad before BDC (50°), closes 0.21 rad after TDC (12°). Valve spring free length: 41.2 mm (1.6220 in.), tilt limit 0.1 mm (0.0039 in.). Setting load: 117.6 N at 35.0 mm (26.4 lbs at 1.378 in.). If your spring is sagging, you’ll see performance drop. Valve recessing specs are there too—0.016 to 0.045 mm clearance between stem and guide. Don’t skip that check when you do a valve job.

Oil Capacity Misconceptions – Get It Right

Many guys dump in 7 liters for every 03-M-DI engine, but the V2003-M-DI-T-E2B with a deep pan needs 9.5 liters. Overfill causes foaming and aeration. Underfill starves the oil pump. The table on page 1 (the SERVICING SPECIFICATIONS page) gives you two pan depths: 124 mm and 90 mm. Measure your pan before you pour. If you’re also servicing a Kubota utility vehicle, the Kubota STV32 STV36 STV40 2006 Technical Manual – Flat Rate Schedule has its own oil specs. For the RTV line, see Kubota RTV900G, RTV900W, RTV900R, RTV900W EC, RTV900 EC 2006 Technical Manual. And if you’re working on a compact tractor, the Kubota B21, B2320, B2620, B2920 Technical Manual – 292-Page Factory Service Manu covers the whole machine.

Why Aftermarket Manuals Fail on These Engines

I’ve seen third-party “compilations” that mix up D1803 and V2203 torque specs. The OEM manual is the only source that Kubota’s own techs use. Aftermarket often leaves out the allowable limits—like the compression pressure limit of 2.35 MPa. That’s the number that tells you when to pull the head instead of chasing fuel system problems. This 17-page document is printed from the KiSC system (Kubota’s internal service system) issued September 2008. It’s the real deal. For additional background on how manual transmission fluid viscosity affects diesel engine work, see Manual Transmission on Wikipedia.
