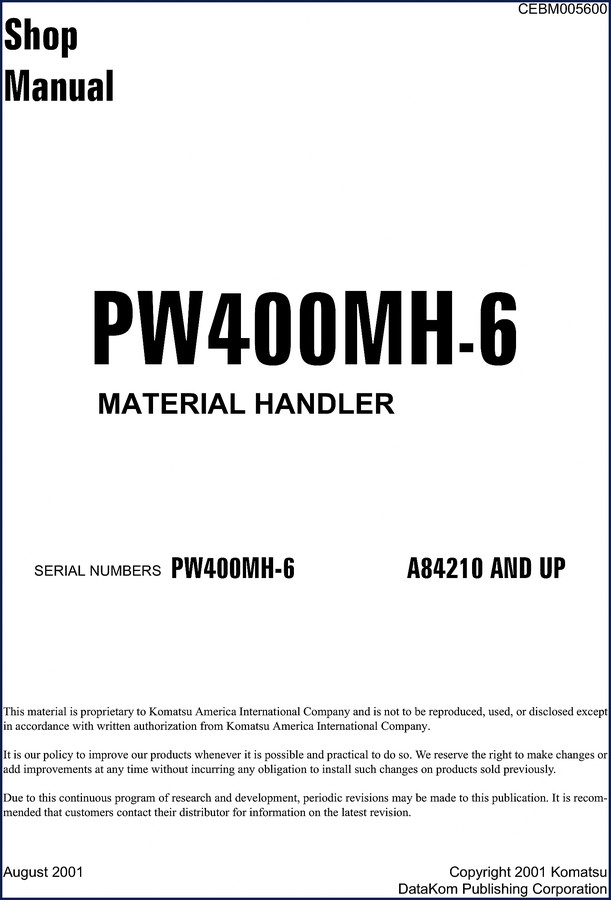

Komatsu PW400MH-6 2001 Workshop Manual

If you’re working on a Komatsu PW400MH-6 2001 Workshop Manual material handler and you’re guessing torque values, stop. That’s how you snap bolts and get leaks. I’ve seen broken flanges from guys using a clicker without verifying the spec. This is the OEM shop manual, not a reprint or a third-party summary. It’s 662 pages of the same documentation Komatsu dealers use.

I’m Mike Callahan. I’ve torqued more head bolts than most people have had hot meals. When I pick up a manual, I check the torque tables first. The Standard Tightening Torque section in the Foreword covers bolts, nuts, hose nuts, split flange bolts, flared nuts, and alternative fasteners. You get the exact foot-pounds for Grade 5, Grade 8, and metric hardware. No guesswork.

The manual starts with a SAFETY section that covers general precautions, preparations for work, and precautions during work. That’s not fluff. If you’ve ever had a hydraulic line blow at 3,000 psi, you know why those pages matter.

PW400MH-6 Torque Specs: Why the Factory Data Matters

Aftermarket manuals give you generic torque ranges. This Komatsu book gives you the exact values from the 2001 production line. The STANDARD TIGHTENING TORQUE chapter includes split flange bolt torque and flared nut torque. Page 01-1 kicks off the specifications section with engine oil recommendations for normal and arctic operation, coolant specs, and diesel fuel specs. You need those numbers to avoid overheating or premature wear.

I’ve seen techs use regular gear oil in a final drive that calls for 30-weight motor oil. That mistake costs you a $3,000 rebuild. The manual has the correct fluid specs on page 01-1.

What Does the 662-Page Workshop Manual Cover?

Structure and Function (chapter 10) breaks down every major system. You get hydraulic piping drawings and schematics. The CLSS hydraulics section explains the LS bypass valve, pressure compensation valve, and boom regeneration circuit. The swing system covers the center swivel joint, counterbalance valve, and parking brake. The electrical section includes the actual wiring diagram and the engine control system components.

Testing and Troubleshooting (chapter 20, starting page 20-1) gives standard value tables for engine and chassis parts. If a travel motor isn’t developing pressure, you go to that section and check the specs.

Disassembly and Assembly (chapter 30) walks you through pulling the main pump, swing motor, and control valve. Maintenance Standard (chapter 40) gives wear limits and clearance specs.

Testing and Troubleshooting Section (Page 20-1)

Page 20-1 is where you live when things go wrong. The standard value table for chassis parts includes pressures for the travel control system, swing motor, and PPC valve. You need these numbers to set the relief valves correctly. The electronic control system section covers automatic warm-up and engine overheat protection. If the machine won’t build hydraulic pressure, the troubleshooting flow chart saves you hours.

Safety First: The Manual’s Warning Sections

The SAFETY NOTICE at the beginning is required reading. It covers hoisting instructions, wire rope capacity, and coating materials. I’ve seen a guy lift a swing motor with an undersized sling. The manual tells you the correct hoisting procedure and wire rope diameter. Don’t skip that.

The PREPARATIONS FOR WORK subsection lists tools you need before you start: torque wrenches, pullers, and safety equipment. If you don’t have a 3/4-inch drive torque wrench capable of 500 ft-lbs, you can’t properly tension the swing circle bolts. The manual tells you that upfront.

Komatsu PW400MH-6 2001 Workshop Manual: For Whom?

This is for the shop owner or experienced DIYer who wants to rebuild a material handler without calling the dealer. If you can read a schematic and turn a wrench, this manual gets you through a pin-to-frame rebuild. Beginners should start with the Komatsu PW400MH-6 Material Handler Operation & Maintenance manual first – that gives the daily checks and lubrication.

Other related documents: Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual for wheel loaders, and Komatsu WH609-1E0 WH613-1E0 WH713-1E0 WH714H-1E0 WH716-1E0 Workshop Manual for other material handlers. If you need a refresher on Manual Transmission theory, that’s separate – this machine uses a powershift transmission, but the principles are covered in the drive system section.

Does this manual cover the engine?

Yes, engine specs and torque values are included.

How do I interpret the wire codes in the manual?

The manual includes an electric wire code classification by thickness and color. Section ‘ELECTRIC WIRE CODE’ in the Foreword explains the coding system. For example, wires are classified by thickness (mm²) and color code. This is critical when tracing electrical issues in the CLSS or control systems. Without it, you’ll be chasing shorts for hours.

Look, I don’t sell manuals for a living. I fix machines. But when I need a spec, I want the factory print. The Komatsu PW400MH-6 2001 Workshop Manual gives you that. Access the Factory Manual and keep it on your bench. Your knuckles will thank you.
