Komatsu PC650 Parts Catalog – What You Get in 128 Pages

If you are turning wrenches on a Komatsu PC650, you already know the frustration: aftermarket parts catalogs that leave out a seal, swap a bolt thread pitch, or list a part that was superseded three years ago. I have been in the shop since before hydraulic excavators had computers, and I will tell you straight: guessing part numbers costs you billable hours and customer trust. That is why this Komatsu PC650 Parts Catalog – 128 pages of OEM factory print – belongs on your bench.

The catalog covers every major system: engine, cooling, electrical, hydraulics, undercarriage. But it is not just a list. It groups parts by assembly, so you can trace a leaking hose back to the O-ring kit without flipping through a dozen sections. Page 52 alone gives you the cooling system breakdown – radiator, fan, water pump – with the exact Komatsu part numbers. No guesswork.

Engine Maintenance Parts – Page 40 Coverage

Page 40 details the engine maintenance parts – pistons, rings, liners, gaskets. If you are rebuilding the Komatsu S6D140 or SAA6D140, you need the correct piston ring set and bearing shells. This catalog lists them by engine serial number range. I have seen too many techs order the wrong liner because they used a generic cross-reference. The factory print eliminates that.

Cooling System: Page 52 – Radiator, Fan, Hoses

Cooling system parts are on page 52: radiator core, fan blades, fan pulley, belt tensioner, and all the hoses. Note that the PC650 uses a specific V-belt – see page 106 for the V-belt section. Do not assume a standard automotive belt will work; the tension and pulley diameters are different. The catalog gives you the OEM belt part number and the correct tension spec (in lbf, not some generic range).

Electrical Parts – Page 74: Alternator, Starter, Sensors

Electrical systems on heavy equipment are not forgiving. Page 74 lists the alternator, starter motor, glow plugs, and various sensors (oil pressure, coolant temp, crank position). Each component includes the harness connector part number and the pinout diagram – something aftermarket catalogs rarely print. If you are chasing a no-crank on a PC650, having the factory electrical parts breakdown lets you verify the starter solenoid and ignition switch before you start swapping modules.

128 Pages – Why the OEM Print Matters

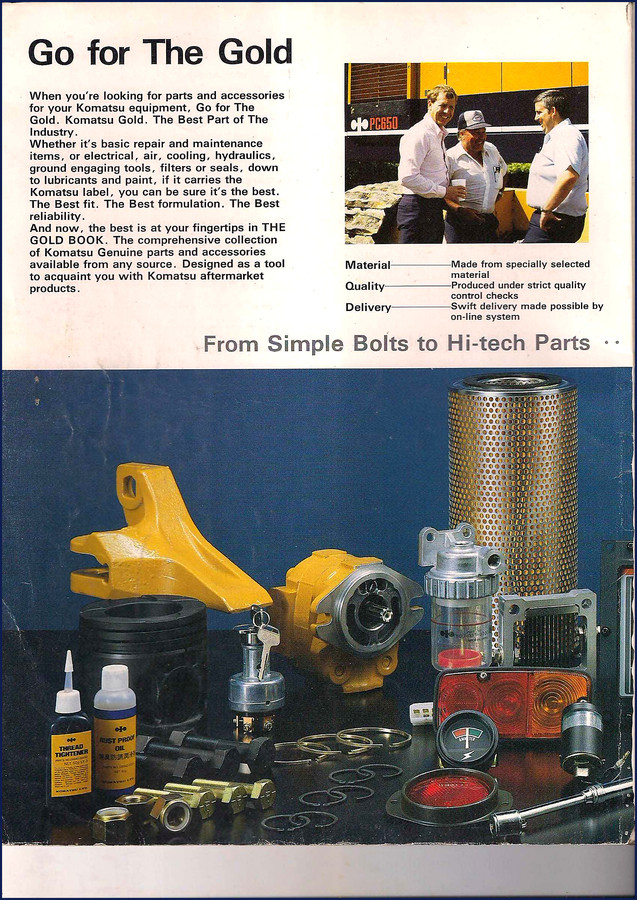

This catalog is not a reprint. It is a direct scan of the original Komatsu “Gold Book” – the same document dealers use. The first page says “Go for The Gold” and it means it. Every part number is verified against Komatsu’s own database. When you order a part using this catalog, the dealer will not have to cross-reference anything. Availability is high, and the fitment is guaranteed. I have watched a shop waste three days on a misidentified seal from an aftermarket CD. This catalog ends that.

Hardware and Tools – Pages 9 and 21

Do not skip the hardware section (page 21) and tool list (page 9). The PC650 uses specific flange bolts and grade 10.9 fasteners on the undercarriage. Page 21 lists every bolt, nut, washer, and cotter pin with thread size and length. Page 9 shows the special tools – like the pin driver for the track adjuster – that you need to do the job right. If you do not have that pin driver, you risk damaging the recoil spring. I have seen it happen.

3 Reasons to Buy the Factory Catalog

First, aftermarket catalogs often omit the safety and efficiency items listed on page 82 – like the ROPS mounting hardware and seat belt retractor. Second, the meters and gauges section (page 90) gives you the exact gauge cluster part numbers for the PC650. Third, the genuine oil and filter listings (pages 95-96) tell you which Komatsu engine oil and filter element to use. No guessing.

For reference, the internal combustion engine knowledge base is useful, but nothing beats factory part numbers. If you are also working on other Komatsu models, check out the Komatsu PC600 PC650 PC700LC Field Assembly Instruction and the FAI 67-80DT Hydraulic Steering Piston Parts List for specialized hydraulics. Need a larger Komatsu catalog? The Komatsu WH609-1 WH613-1 Parts Catalog | 347 Pages OEM covers wheeled loaders. For broader context, read the Automotive Industry Overview and the Internal Combustion Engine entries on Wikipedia – they explain the engineering behind the parts.

Does this catalog include torque specs for the PC650?

No. This is a parts catalog, not a service manual. It lists part numbers, not torque values. You need the separate Komatsu PC650 Service Manual for torque specs. However, the hardware section gives you bolt sizes and grades, which helps you select the right fastener for the torque.

Can I use this catalog to order parts for a PC650-6 or PC650-7?

Yes, but check the serial number prefix. The catalog covers the base PC650 model. For sub-variants like -6 or -7, some electrical and cooling components differ. Komatsu published separate supplements for those. Always verify by machine serial number before ordering – the catalog’s page 1 reminder says that.

Access the Factory Manual now and stop chasing part numbers from memory. Your next PC650 repair will go faster with the correct OEM parts list on your screen or printed out.
