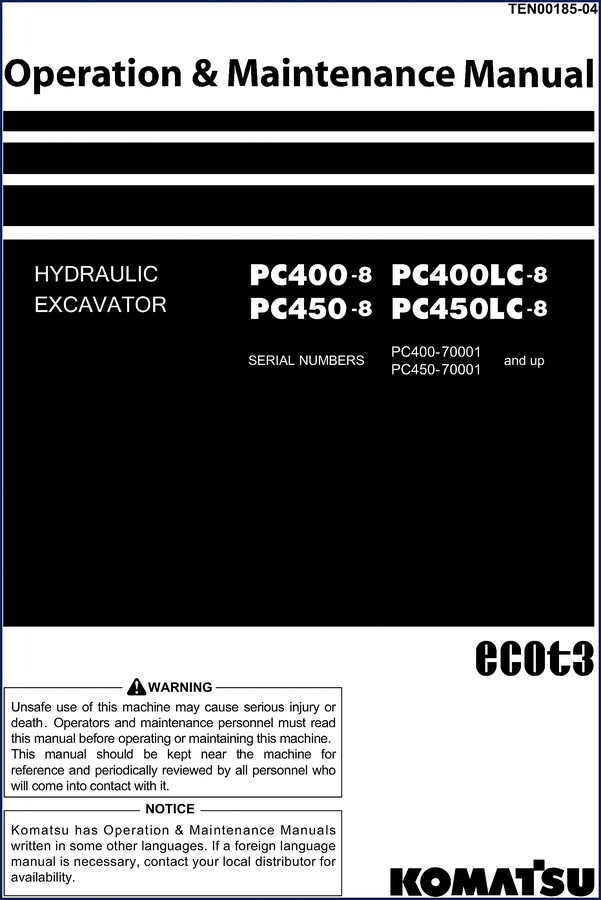

Komatsu PC400LC-8, PC450LC-8, PC400-8, PC450-8 Operators Manual

If you’re running a Komatsu PC400LC-8, PC450LC-8, PC400-8, PC450-8 Operators Manual is the difference between keeping that machine productive and sending it to the scrap yard. I’ve been turning wrenches for twenty-eight years, and I can tell you that ignoring the safety section in this manual will get someone hurt. This is a factory document – 391 pages of Komatsu’s own procedures. Not a photocopy of a photocopy from some aftermarket house that guesses at fluid capacities. You want to operate that excavator without burning down a jobsite? Read the foreword before you even turn the key. The manual explicitly says operators and maintenance personnel must read it before operating or maintaining the machine.

Safety Labels and General Precautions

Operators and maintenance personnel are required by Komatsu to read this manual before starting. Page 1 states that clearly. I’ve got zero tolerance for anyone who thinks they can wing it. The safety section covers labels, precautions for operation, transportation, towing, lifting with bucket. The manual lists the location of safety labels on the machine – if you don’t know where they are, you can’t respond when something goes wrong. It also details fire prevention, precautions when getting on or off the machine, and how to avoid getting caught in the work equipment. The emergency escape hammer location is specified – that’s not something you want to guess at when the cab is filling with smoke. The manual also includes precautions for protective structures and unauthorized modification warnings. Every one of these items is critical to staying alive on a jobsite.

What Torque Values Are Listed for Your Komatsu?

Torque specs are the backbone of keeping an excavator together. The manual has a dedicated “Tightening Torque Specifications” section with a tightening torque list. That’s not a suggestion – it’s a table of values for critical fasteners. I’ve seen people use an impact gun on a hydraulic fitting and wonder why it leaks. Komatsu gives you the numbers in both Nm and ft-lbs. Follow them. There’s also a safety critical parts list that tells you which bolts are life-or-death – the ones that hold your boom and cab structure. You skip that table at your own risk. For service procedures beyond operation, the Komatsu PC400LC-8 2011 Service Manual covers disassembly and repair. Similarly, Komatsu PC450LC-8 2011 Service Manual is available for that variant.

Maintenance Schedule: From 50 to 8000 Hours

This manual doesn’t just say “change oil sometimes.” It breaks maintenance into intervals: every 50, 100, 250, 500, 1000, 2000, 4000, 5000, and 8000 hours. Each interval has a list of procedures – checking before starting, fluid changes, filter replacements, inspections. The initial 1000-hour service is separate. If you follow this schedule, your Komatsu engine will last longer than the loan payment. Ignore it and you’ll be buying a new power plant. The manual also covers wear parts lists, recommended fuel, coolant, and lubricant brands. It even gives a separate maintenance interval for hydraulic breakers if you run one. That kind of detail keeps your machine from blowing a seal at the worst possible time.

Get the Right Torque Data – Avoid Hydraulic Leaks

I’ve had to re-torque cylinder head bolts on a PC450 because someone used a generic spec. This manual gives you the OEM numbers. The tightening torque list is not optional. Same for the safety critical parts list – those are the bolts that hold your boom on. Losing a boom because you used a torque wrench that’s out of calibration is stupid. The manual tells you the required torque for each fitting. Use it. The full workshop manual Komatsu PC400-8 PC450-8 Workshop Manual gives you everything from engine overhaul to hydraulics if you need to go deeper.

Cold Weather Operation and Long Term Storage

San Antonio doesn’t get much cold, but if you’re up north, this section is gold. It covers cold weather operation information, what to do after daily work in freezing temps, and procedures for after the cold season. Long-term storage – before, during, after – includes steps to keep seals from drying out and batteries from dying. Even includes starting the machine after storage. This is the kind of detail you don’t get from a quick-start guide. For those who also work on manual transmission equipment, we have Manual Transmission resources, but this document is strictly excavator operation. Another external Manual Transmission reference can supplement your knowledge.

Does this manual include wiring diagrams?

No. Wiring diagrams are in the service manual, not this operator’s manual.

What models are covered?

PC400-8, PC400LC-8, PC450-8, PC450LC-8. Serial numbers starting PC400-70001 and PC450-70001 and up.

Can I use this for the PC400-7?

The PC400-7 is a previous generation with different engine, hydraulics, and frame. Using a -8 manual on a -7 machine will give you incorrect torque values, fluid capacities, and procedures. You risk component failure or personal injury. Always use the manual that matches your machine’s serial number prefix. Contact your distributor if you’re unsure.

How do I know if my machine is included?

Check the serial number plate. The manual covers PC400-70001 and PC450-70001 and up. If yours falls in that range, this is your manual.

Stop guessing. Get the actual Komatsu document that tells you what to do and what not to do. Access the Factory Manual now and keep it in the magazine box next to your seat.
