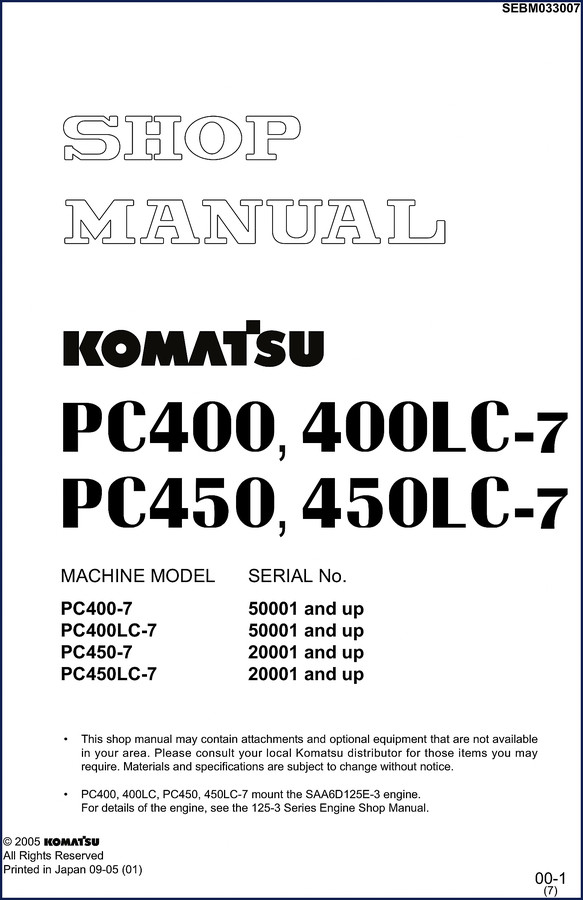

Komatsu PC400-7, PC400LC-7, PC450-7, PC450LC-7 Workshop Manual – Factory Data You Can Trust

If you’ve ever torn into a Komatsu excavator and found yourself staring at a pile of parts wondering what the factory spec is for that damper assembly, this is the manual you need. I’ve been wrenching for 28 years, and I’ve seen too many guys trust a third-party reprint only to find out the torque values are off by 20 ft-lbs. This Komatsu PC400-7, PC400LC-7, PC450-7, PC450LC-7 Workshop Manual is an original OEM document – 216 pages of the actual factory data Komatsu sends to its dealers. No guesswork, no missing pages, no aftermarket errors.

What This Manual Covers: Structure, Function, and Maintenance Standard

The manual opens with section 01 – GENERAL, which includes specification drawings, detailed dimensions for all four models, a weight table for component handling and transport, and the fuel, coolant, and lubricants chart. Section 10 – STRUCTURE, FUNCTION AND MAINTENANCE STANDARD then dives into the major assemblies: engine-related parts (drive plate, torsion spring, damper assembly, muffler, mounts), the radiator/oil cooler/aftercooler group, power train components (idler, center swivel joint, control valve, final drive, travel motor, hydraulic pump, swing machinery, swing circle), and the track frame with recoil spring. Each component is broken down into its individual parts with part numbers and locations. Need the charge pressure for the hydraulic pump? That’s in the testing section – but this manual gives you the baseline specs to start with.

216 Pages of Factory Data – Not a Condensed Summary

Too many aftermarket manuals try to cram four models into 50 pages. This one dedicates full spreads to each model’s dimensions. Page 01-4 lists the overall length, height, width, track shoe width, cab height, tail swing radius, and ground clearance for PC400-7, PC400LC-7, PC450-7, and PC450LC-7 separately – including fixed and variable gauge specifications. The weight table on page 01-8 shows unit masses in kg so you know what your lift equipment needs to handle. That kind of information saves you from snapping a chain or dropping a final drive on your foot.

Where Are the Torque Specs?

This volume does not include the disassembly and assembly section (that’s section 30, issued separately). What it does give you is the structure and function breakdown so you understand how each system works before you touch it. For torque values on the hydraulic pump servo piston or the swing circle retaining bolts, you will need the full workshop manual set. But if you want the factory-recommended fluids – the correct engine oil, hydraulic oil, final drive gear lube, and grease – the FUEL, COOLANT AND LUBRICANTS table on page 01-12 is worth the price alone. Get the wrong viscosity in a Texas summer and you’ll be pulling a hydraulic pump before lunch.

Get the Right Fuel and Fluid Specs

Komatsu is specific about fuel: cetane number, sulfur content, even the cloud point for cold weather operation. The manual lists acceptable alternatives and what to do if you can’t get the recommended oil. It also covers coolant mixture ratios and the proper antifreeze type to prevent cavitation in the aftercooler. Don’t guess – use the factory chart. One bad fuel batch can destroy the fuel cooler or the injection pump. This manual gives you the numbers to verify.

Why OEM Documentation Beats Aftermarket Copies

A customer brought a PC450-7 into my shop last year with a swing motor that was leaking past the floating seal. The aftermarket manual he had said the seal driver depth was 2.5 mm. The OEM manual (this one) says 2.0 mm. That half millimeter cost him a second rebuild and a weekend of labor. The dimensional drawings in this manual are scaled and annotated with Komatsu’s original tolerances. You can trust them to order the right seal kit. For related training, check the Komatsu PC-7 Series Hydraulic Excavator Training Manual”>. And if you need the full factory test specs for your PC400-7 or PC450-7, the Komatsu PC400-7 PC450-7 Technical Manual – Factory Test Specs”> is available. For the complete disassembly and assembly procedures, get the Komatsu PC400-7 PC450-7 2005 Workshop Manual – 782 Pages”>.

Understand that a workshop manual is not a textbook. It’s a reference for someone who already knows how a Manual Transmission”> works and needs the specific measurements to set gear lash. The same principle applies to a Manual Transmission”> – you need the factory end-play spec, not a YouTube comment.

Does this manual include wiring diagrams?

No, wiring diagrams are not in this volume.

What about the disassembly and assembly procedures?

This manual covers structure, function, and maintenance standard. The disassembly and assembly section is separate and not included in this 216-page document. If you need step-by-step teardown for major components like the hydraulic pump or swing motor, you would want the full workshop manual set. However, this manual gives you the factory specifications, weight tables, and fuel/lubricant requirements you need before you start work. It includes exploded views of the power train, hydraulic pump, final drive, swing machinery, and track frame so you understand how each subassembly comes apart – even if the actual torque sequences are in a different volume. For a shop that does infrequent overhauls, this reference data can prevent ordering the wrong parts or using incorrect fluids.

If you want the factory data that Komatsu techs use, access the factory manual from AutoRepairManuals. Open it on your tablet or print the pages you need – it’s searchable, printable, and exactly what Komatsu approved in 2003. No reprints. No aftermarket interpretation. Just the OEM document that keeps your excavator running.
