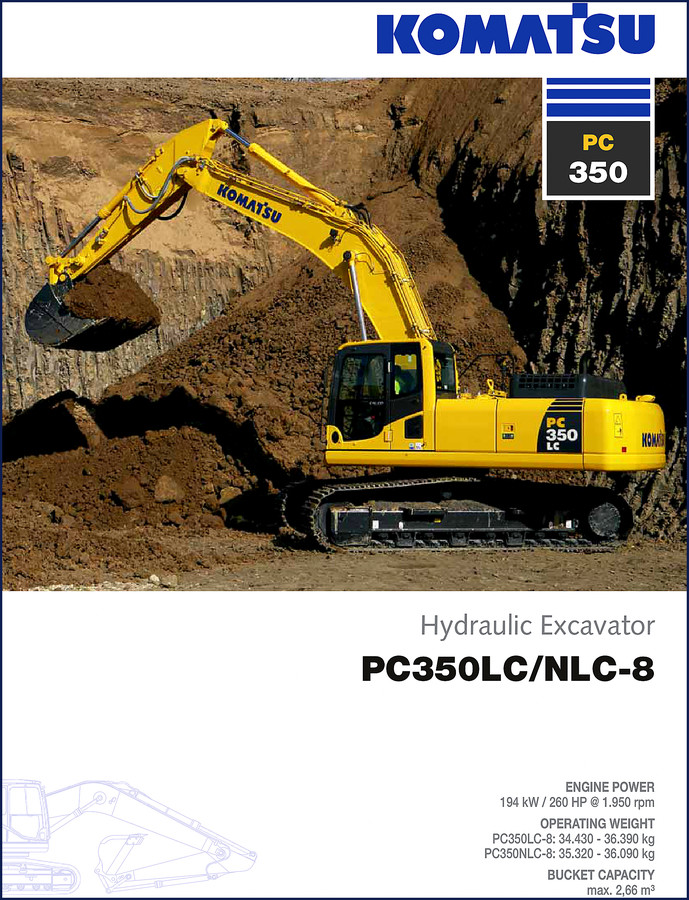

Komatsu PC350LC-8, PC350NLC-8 Technical Manual

Look, you’re here because you need the real specs for a Komatsu PC350LC-8, PC350NLC-8 Technical Manual. Not some third-party PDF that guesses the torque on the cylinder head. I’ve been turning wrenches for 28 years, and if you think you can rebuild a Komatsu Dash 8 hydraulic excavator without the factory manual, you’re going to waste time and money. This is the actual OEM Technical Manual – 28 pages – published by Komatsu. Not a reprint. Not a scan of a scan. It comes from the original file.

On page 1, you get the hard numbers: 260 HP at 1,950 rpm, operating weight between 75,900 and 80,200 lbs, bucket capacity up to 3.5 cubic yards. That’s the starting point for any repair or part order. Don’t guess the engine model – this manual has it.

Walk-Around and Safety Inspection (Page 2)

The walk-around section on page 2 isn’t just a checklist. It tells you where to look for cracks, loose bolts, hydraulic leaks. Komatsu designed the Safe SpaceCab™ with a rear view camera. The manual shows you the inspection points the dealer uses. I’ve seen guys skip this and blow a hydraulic line on a jobsite. Not worth it.

5 Working Modes and Attachment Hydraulics

Five working modes – Power, Lifting, Breaker, Attachment, Economy. Each optimizes flow and pressure for the job. The manual explains how to adjust oil flow for attachments directly on the monitor panel. If you’re putting a hydraulic breaker on, you need the factory settings. A generic aftermarket guide will tell you ‘set it to medium’ – that’s not good enough.

Source Authenticity: OEM vs Aftermarket

Aftermarket manuals for this Komatsu Dash 8 are everywhere. They copy from copies. I’ve seen torque specs that are off by 20%. That’ll strip a bolt on the swing drive and cost you a week of downtime. This manual is the original Komatsu PDF. 28 pages of factory data. Not a reprint. If you want to trust your repair to a third-party PDF, that’s your risk. Not mine.

Who Needs This Manual

If you own a PC350LC-8 or PC350NLC-8, you need this. If you’re a shop that works on heavy equipment, you need this. Beginners? You’ll need a separate Komatsu PC350LC-8 PC350HD-8 2011 Workshop Manual if you plan to tear down the undercarriage. This technical manual gives you the specs and procedures for the major systems. For the engine rebuild, the Komatsu PC350LC-8 Shop Manual goes deeper. But this is the core document for diagnostics and general repair.

Understanding the hydraulic transmission is critical. The travel motors and final drives work like a Manual Transmission in terms of gear reduction. The manual includes the gear ratios and adjustment specs. For more background on gear theory, check the Manual Transmission article on Wikipedia.

Another related manual is the Komatsu PC300-8 PC350-8 Workshop Manual which covers the PC300 series as well.

FAQ

Does this manual cover the PC350HD-8 variant?

No. That model uses a different undercarriage and hydraulics. You need the specific manual for HD-8.

Are the wiring diagrams included?

Yes. The factory technical manual includes complete electrical schematics for the machine. I’ve seen technicians try to trace a no-start condition using generic diagrams and end up replacing a good ECM. The OEM diagrams show the exact pinouts, connector locations, and wire colors. Without them you’re guessing. This manual includes the full electrical system layout.

What is the difference between PC350LC-8 and PC350NLC-8?

The NLC variant has a narrower track gauge and different counterweight. Operating weight differs by a few hundred pounds. The manual covers both with separate specifications.

Can I print this manual?

Yes. The 28-page PDF is printable.

If you’re serious about getting this Komatsu back in the dirt without a comeback, access the factory manual. That’s the only way to be sure.
