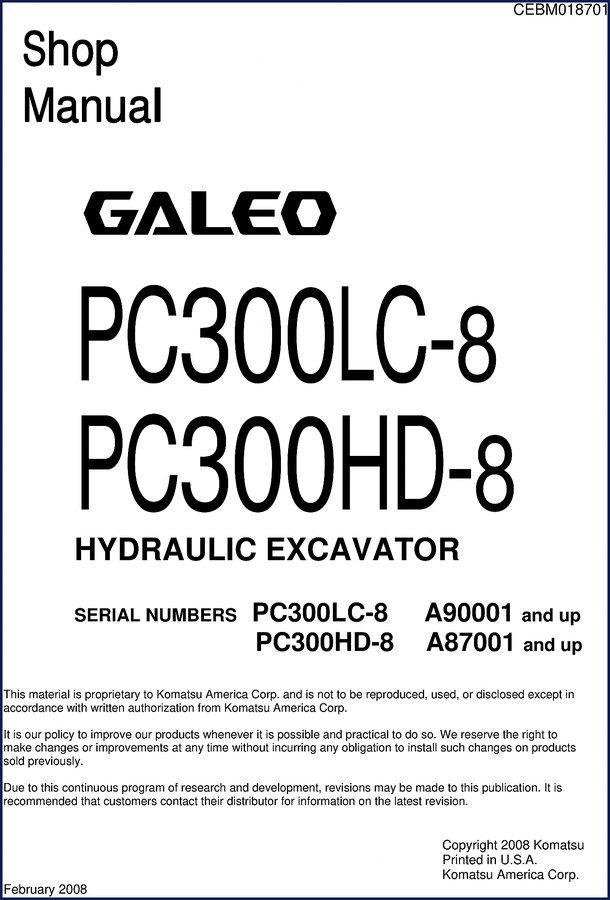

Komatsu PC300LC-8, PC300HD-8 2008 Workshop Manual

If you’ve ever fought a hydraulic leak on a Galéo series machine because someone guessed the O-ring boss torque, you know why I’m writing this. Aftermarket manuals leave out the split-flange bolt torques and hose-nut values that keep a Komatsu PC300LC-8 from puking oil on the jobsite. This is the original February 2008 publication from Komatsu America Corp. – not a reprint, not a scan of a scan. 916 pages of what the factory technicians used when these machines were new.

Standard Tightening Torque Tables: Not Optional

You don’t get to decide which fasteners matter. The manual includes dedicated tables for bolts and nuts, hose nuts, split flange bolts, flared nuts, O-ring boss piping joints, O-ring boss plugs, and a separate torque table for taper-seal and face-seal type hoses. Page 73 lists the values for the hose connections – and if you’ve ever seen a fire caused by a loose hydraulic fitting, you’ll treat that page like scripture. Most aftermarket books combine everything into one generic chart. That’s how you overtighten a #10 O-ring boss and strip the thread. This manual breaks them out by type, thread size, and material grade.

What Does the Hydraulic System Section Cover?

The section titled “10 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD” dedicates dozens of pages to the hydraulic equipment layout drawing, the tank and filter, the pump (type HPV125+125), and every valve in the CLSS circuit. You get the unloader valve, LS pressure compensation valve, boom regeneration circuit, arm regeneration circuit, merge-divider valve, travel junction valve, drift prevention valves, and the 2-stage safety-suction valve. Each valve comes with its own functional description and a cross-section drawing. If you’re rebuilding the main control valve on a PC300LC-8, you need the internal shuttle details – they’re in there, not in a separate supplement.

3 Reasons to Use the Factory Workshop Manual

• Safety notices – The first five pages of the foreword cover hoisting instructions, wire rope limits, and preparation for work. Skip them and you risk a machine falling off the stands. The manual spells out the exact wire rope diameter and sling angle limits for lifting the upper structure.
• Electric wire code – The wiring harness is color-coded by thickness and function. The manual classifies wires by color and code, then shows you how to read the code. That saves you from probing the wrong pin on the engine controller.
• Disassembly and assembly procedures – Section 50 gives step-by-step removal and installation sequences for the final drive, swing motor, travel motor (HMV160ADT-2 for PC300LC-8), and hydraulic cylinders. Torque sequences for the boom cylinder gland nut are shown with the proper order – not a guess.

Get the Right Torque Data from the Proper Source

I’ve seen techs use a generic bolt torque chart from a pocket reference and then wonder why the swing circle bolts loosened. The manual’s “STANDARD TIGHTENING TORQUE” section includes a table of tightening torques for O-ring boss plugs – something aftermarket books routinely omit because they don’t know the difference between a straight thread and a tapered plug. If you’re working on the Komatsu PC300LC-8 or PC300HD-8, you need the values for the split flange bolts that hold the pump outlet lines. Those are listed by bolt size and grade. Page 73 shows the exact foot-pounds for a 5/8-11 UNC flange bolt. Not close enough – exact.

Engine and Cooling System: Factory Procedure

The manual covers the engine-related parts, radiator, oil cooler, and aftercooler in a dedicated subsection. You get the coolant capacity (in quarts), the oil filter part numbers, and the fan belt tension procedure. The aftercooler removal sequence tells you which turbocharger pipes to disconnect first – something that prevents bending the air intake tube. If you’ve ever fought a aftercooler gasket leak on a Komatsu PC300HD-8, you’ll appreciate the included torque pattern for the mounting bolts.

FAQ

Does this manual cover both the PC300LC-8 and PC300HD-8 models?

Yes. The serial number ranges are PC300LC-8 A90001 and up, PC300HD-8 A87001 and up. All sections split out variant-specific data for final drive, sprocket, track frame, idler, carrier roller, track roller, and travel motor. You get separate parking brake procedures for each model.

Is the manual in English?

English throughout, printed in the U.S.A. by Komatsu America Corp.

If you’re ordering a manual for your shop, make sure it’s the real OEM publication – not a third-party compilation that misses the LS valve shims or the O-ring plug torques. Related manuals: Komatsu PC300LC-8 PC300HD-8 2011 Service Manual covers later updates; Komatsu PC300-8 PC350-8 Workshop Manual for the next size class; Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual if you service wheel loaders too. For transmission-related background, see Manual Transmission on Wikipedia.

Access the Factory Manual and put the aftermarket copies in the recycling bin. Your torque wrench will thank you.
