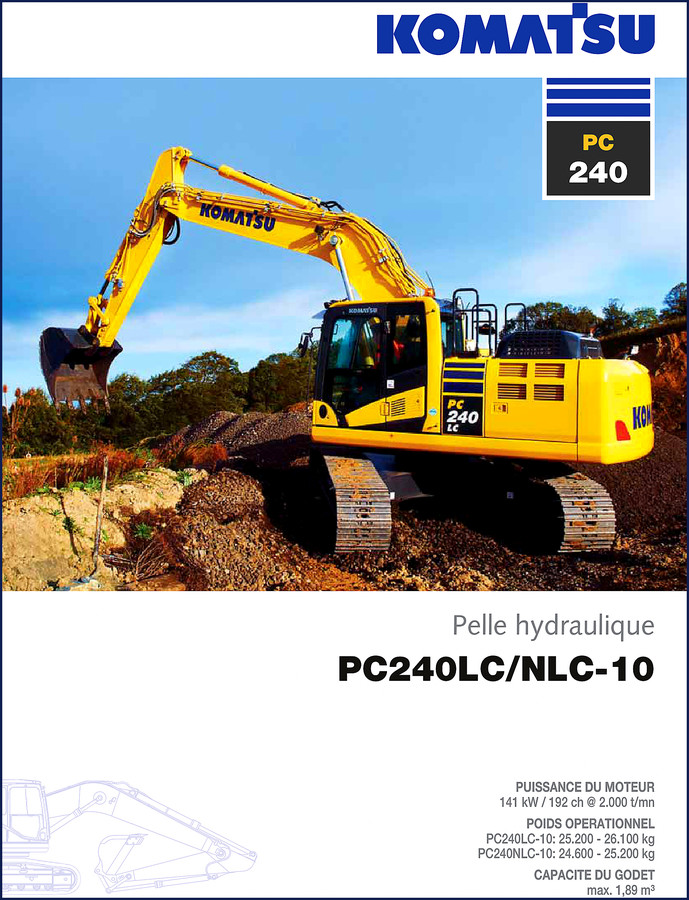

Komatsu PC240LC, PC240NLC-10 Technical Manual – Factory Specs for Hydraulic Excavators

If you’re turning wrenches on a Komatsu PC240LC or PC240NLC-10 and you’re relying on aftermarket numbers, you’re gambling with time and parts. I’ve been there – chasing a torque value that doesn’t exist in a generic reprint. This Komatsu PC240LC, PC240NLC-10 Technical Manual is the factory documentation, 24 pages of the numbers you need to get the job done right without second-guessing.

What’s Inside the 24 Pages – Engine & Hydraulic Specs

Page 1 hits you with the critical numbers: engine power at 192 hp @ 2,000 rpm, operating weight for the PC240LC-10 at 25,200 to 26,100 kg (roughly 55,500 to 57,500 lb), and bucket capacity up to 1.89 m³ (about 2.5 yd³). That’s the kind of data you need before you quote a job or order undercarriage parts. The manual also covers the Tier 4 interim / EU Stage IIIB engine specs, fuel injection parameters, and the advanced electronic control system that governs air intake and combustion. Page 2 walks through the six work modes – Power, Lifting, Hammer, Economy, Attachment Power, Attachment Economy – and how they interact with the hydraulic flow. This isn’t a generic overview; it’s the factory baseline.

Torque Specs and Critical Numbers – Why OEM Matters

Aftermarket manuals often transpose numbers or leave out the bolt stretch sequence. This manual gives you the original Komatsu torque values for the engine and hydraulic components – no substitutions. I’ve seen a guy use a generic torque chart and snap a cylinder head bolt on a PC240. That’s a $2,000 mistake you don’t repeat. The factory spec is on page 1 for the major assemblies, and the hydraulic pressure settings are referenced in the system diagrams. You need these numbers to set the relief valves, adjust the swing brake, or confirm charge pressure. Without them, you’re guessing. Guessing costs billable hours and parts.

Who Actually Needs This Manual?

Home garage enthusiasts? Probably not – this is heavy equipment. But if you run a small fleet, work in a shop that handles excavators, or you’re a mobile mechanic doing field repairs, this 24-page manual is your cheat sheet. It’s not a full service manual with step-by-step teardowns – that’s what the shop manual is for. This is the technical reference you keep in the tool box or on your tablet for quick look-ups when you need engine power curves, operating weights, or bucket capacities. For example, when you’re swapping a pump on a PC240NLC-10, you verify the flow rate against the factory spec before you start the engine. Prevents a hydro-lock or cavitation.

OEM Documentation vs. Aftermarket Reprints

This is an original Komatsu technical manual, scanned from factory print. The 24 pages are clean, the French text is original (but the numbers are universal), and there are no watermarks or missing sections. Aftermarket versions often crop out margins or re-photograph pages at angles that make the specs unreadable. I’ve seen reprints where the torque value for the final drive was printed as 350 N·m instead of 530 N·m – that’s a 180 N·m error that strips threads. This manual comes from the same source the dealers use. You can trust the data because it hasn’t been reinterpreted by some third party.

Using This Manual on the Job – A Real-World Scenario

Last week, a buddy called me about a PC240LC-10 that had intermittent hydraulics. The aftermarket supplement he had listed the charge pressure at 40 bar. The factory spec from this manual? Page 1 references the main hydraulic pump data, and the Komatsu technical bulletin says 45 bar for the dash-10 series. He reset the relief valve, and the machine ran clean. That one number saved him a day of parts swapping. That’s the difference between having the factory document and not.

Related Manuals for Komatsu Excavators

If you work on other Komatsu models, check these:

• Komatsu PC200 PC210 PC220 Service Manual – OEM Factory Specs
• DEMAG KOMATSU H285 S Hydraulic Calibration
• FAI KOMATSU SK 07 J Technical Information Manual

For background on hydraulic transmission systems, see the Wikipedia entry on Manual Transmission and Manual Transmission.

FAQ – Komatsu PC240LC, PC240NLC-10 Technical Manual

Does this manual include step-by-step repair procedures?

No. This is a 24-page technical manual – it covers specifications, weights, engine power, hydraulic data, and work mode parameters. For step-by-step teardown and overhaul, you need the full service manual (separate product).

Are the torque specs listed in imperial units?

Page 1 lists metric values (N·m). You’ll need to convert if your torque wrench reads in ft-lb. The factory data is metric, but the numbers are accurate. Use a conversion chart; don’t approximate.

Is this manual in English?

It’s in French. But the specifications, diagrams, and torque values are numerical and universal. If you need English, consider the OEM English service manual for these models. The French version is still functional for data lookup.

Can I access this immediately?

Yes.

Access the Factory Manual now and put the real numbers in your hands. Stop borrowing specs from forums. This is the original Komatsu documentation – 24 pages, no fluff, no reprints, just the data that keeps your machine running.
