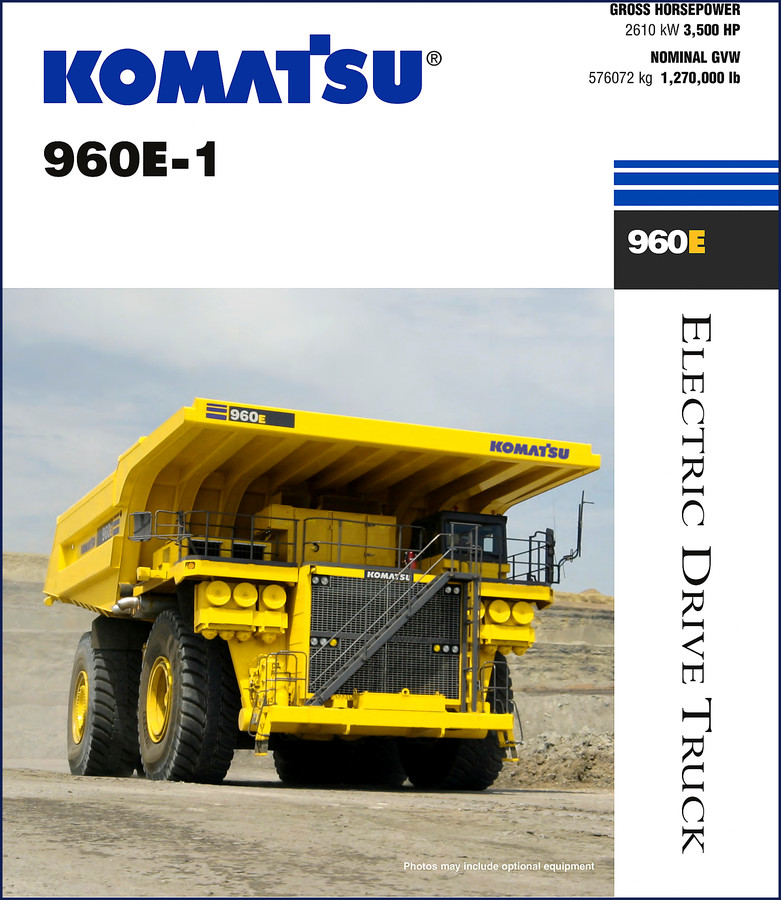

Komatsu 960E-1 Technical Manual

If you are a heavy equipment mechanic, you know the frustration of chasing numbers across aftermarket spec sheets that alway seem to be missing that one critical value for the 327-ton truck. One wrong fastener torque on the Komatsu SSDA18V170 engine can drop three days of work into a teardown. Komatsu 960E-1 Technical Manual is the factory document that gives you the horsepower, GVW, and system overview without the fluff. I have torqued head bolts on enough class-8 trucks to tell you: OEM specs beat memory every time.

Engine Specs and Horsepower Ratings

Page 1 gives you the numbers that matter: 2610 kW (3,500 HP) at 1900 rpm gross. Nominal GVW 576072 kg (1,270,000 lb). This is not a generic chart – those are Komatsu’s own published figures for the 960E-1. The engine is the SSDA18V170 with two-stage turbocharging and US EPA emissions compliance. If you are rebuilding or swapping components on that powerplant, those rpm and power numbers set your baseline for everything else. I have seen junkyard engines fail because someone guessed the peak torque curve. Don’t be that guy.

GE Dual IGBT AC Drive System Walk-Around

Page 2 walks you through the electric drive. GE dual IGBT AC drive system with 6,000 HP continuous retarding capability. Automatic retard speed control and traction (spin-slide) control. The manual explains how these systems interact. You get the high-level block picture without the wiring diagram clutter – that is what a 16-page technical manual is for. It tells you what is there and how it works before you crack the electrical cabinet. For deeper electrical troubleshooting you will want the Komatsu 960E-1 Shop Manual.

Brake System: Wet Multiple Disc Details

Fully-hydraulic controlled multiple-disc wet brakes with steering and brake accumulators. This section lists the system architecture – everything is hydraulic, no air-over-hydraulic nonsense. The manual mentions the accumulators but does not give recharge pressures (that’s in the shop manual). What it does give is the system layout so you know which lines go where before you start bleeding. On these trucks a simple brake job turns into a week when you skip the factory overview.

Vehicle Health Monitoring (VHMS) Integration

Page 3 covers the Vehicle Health Monitoring System (VHMS) with PLM III and ORBCOMM. It allows immediate diagnostics of key engine and drive system components. The manual tells you it is standard equipment and how it integrates with the dash payload display. If you are retrofitting or troubleshooting a VHMS fault, this overview saves you from digging through 50 pages of service procedures just to figure out what the system does. For hydraulic calibration on similar KOMATSU equipment, check the DEMAG KOMATSU H285 S Hydraulic Calibration manual. The 960E-1 uses a separate electric drive, but the brake hydraulic circuit is comparable.

16 Pages of Critical Specs

Understand this: it is a technical manual, not a service manual. 16 pages cover gross horsepower, GVW, walk-around features, operator environment, maintenance access points. It gives you the factory numbers for the engine, the electric drive system, the brake system, and the VHMS. That is exactly what a technician needs when he walks up to a truck he has not seen in six months. You get the specs, you get the system description, you get the saftey warnings (multiple-disc wet brakes, ROPS/FOPS Level 2 cab). Then you go to the shop manual page a hundred and do the real work. Without this overview, you are guessing at what the factory intended. That costs parts and time.

One more word on authenticity: this is a genuine OEM Komatsu document. The PDF watermark and page numbering matches what I have seen in dealer printouts. Do not trust a third-party re-write – I have had aftermarket manuals tell me the wrong engine oil capacity for a 960E-1. This one comes straight from the factory.

Who Needs This on the Bench?

Fleet mechanics who maintain a 960E-1 should have this in their tablet. Shop owners – put it next to the shop manual so the young techs can find the specs without interrupting you. Home garage enthusiasts? Unless you actually own one of these trucks (unlikely) you probably do not need it. But if you are a mining equipment operator who does your own field repairs, this is the reference. Pair it with the FAI KOMATSU SK 07 J Technical Information Manual if you also work on smaller KOMATSU gear. For understanding how the drive differs from a conventional Manual Transmission truck, this manual helps you see the electric drive system as a whole. I also recommend reading the Manual Transmission fundamentals section on Wikipedia if you are new to heavy equipment – it gives context to why these trucks use electric drive.

Is this the full service manual?

No. This is a 16-page technical manual covering specifications and walk-around. For overhaul procedures, get the shop manual.

What torque values are included?

This manual does not list torque values for all components, but the engine specs on page 1 give the horsepower and rpm. For torque specs, you need the Komatsu 960E-1 Shop Manual.

Does it include wiring diagrams?

Not in this document. The technical manual focuses on operational specs, not electrical schematics. For wiring, refer to the FAI KOMATSU SK 07 J Technical Information Manual or the specific electrical manual.

How is the VHMS system covered?

The manual pages 2-3 outline the Vehicle Health Monitoring System (VHMS) with PLM III and ORBCOMM, explaining how it monitors engine and drive system components. However, it does not provide diagnostic trouble codes or step-by-step troubleshooting. That’s typical for a technical manual – it gives you the system overview so you know what you’re dealing with before you dive into the service manual. If you need calibration procedures for hydraulic systems on similar KOMATSU equipment, the DEMAG KOMATSU H285 S Hydraulic Calibration manual covers that. For the 960E-1 electric drive specifics, you will need the separate electric drive manual.

If you work on these trucks, do not rely on memory or aftermarket summaries. The factory numbers are in this PDF. Access the factory manual and keep it in your tool bag.
