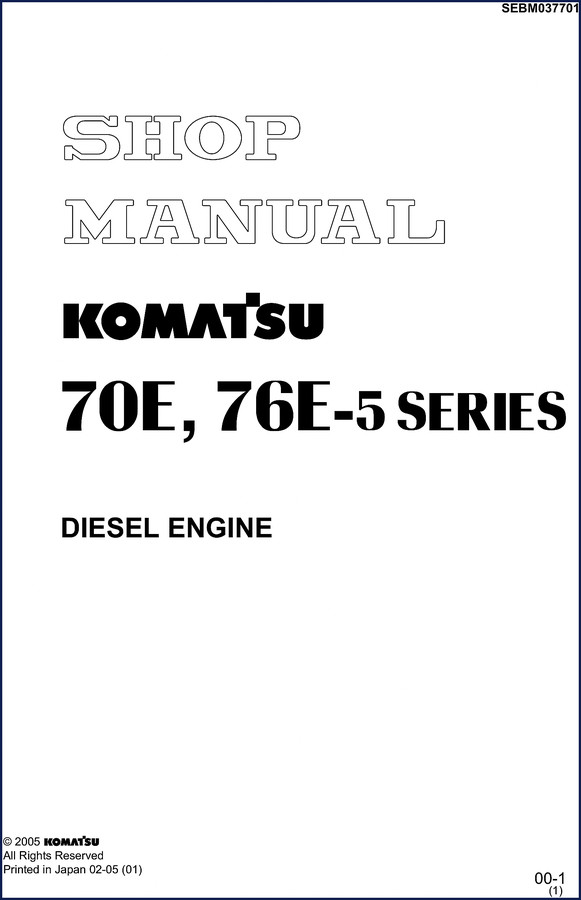

Komatsu 70E, 76E-5 2005 Workshop Manual

Look, I’ve torqued more head bolts than most people have had hot dinners, and I’ll tell you straight: if you’re working on a Komatsu 70E or 76E-5 diesel Engine and you don’t have the factory Workshop Manual, you’re guessing. Guessing costs you time, parts, and sometimes a fire. This 2005 manual is 144 pages of OEM data—not some aftermarket rehash that leaves out the critical torque sequence for the cylinder head. I’ve seen the garbage third-party PDFs that tell you to “tighten until snug.” That’s how you blow a head gasket on a 76E-5. This manual gives you the numbers that Komatsu engineers stamped into the steel.

Periodic Maintenance Schedule: Don’t Skip the 50-Hour Inspection

Chapter 2 lays out the inspection intervals from daily checks all the way to 2000 hours. Page 2-3 in the PDF (Section 2.2.2) covers what to inspect after the first 50 hours. That’s when the rings seat and the carbon starts building. If you skip it, you’re chasing blow-by later. The manual also gives you the no-load max speed adjustment procedure (Section 2.3) so you don’t over-rev the engine on a governor test. I’ve seen guys flyweight a pump because they didn’t have this spec.

Fuel Injection Pump: Timing Is Everything

Chapter 7 covers the fuel injection pump and governor in detail. Section 7.2.5 walks you through confirmation and adjustment of injection timing. You need the fuel system diagram from page 7-2 to trace the lines. One degree off on the timing and the 70E will smoke like a freight train or knock itself to pieces. This manual doesn’t hedge—it gives you the exact plunger stroke and timing mark alignment. Use it. Also, the troubleshooting table in Section 3.2 is a quick reference for common fuel issues like hard starting or low power.

Service Standards and Torque Specs: Page 11-1

The Service Standards chapter (Chapter 11) is where the factory specs live. Page 11-1 lists engine tuning values—valve clearance, injection timing, compression pressure. Then Section 11.2 breaks down the cylinder head, gear train, and cylinder block wear limits. You want to know the allowable piston ring gap for the 76E-5? It’s there. The Tighten chapter (Chapter 12) is a standalone section with torque values for every critical fastener: main bearing cap bolts, connecting rod nuts, cylinder head bolts. I’ve used this page to double-check aftermarket manuals that were off by 15 ft-lbs. Don’t trust your memory—trust the page.

Electric Wiring: Why the Diagram on Page 10-1 Matters

Electrical gremlins kill your day faster than a stripped bolt. Chapter 10 gives you the full wiring diagram for the starting motor and alternator. Page 10-1 shows the complete circuit with wire gauge specs. Section 10.2 lists precautions—like never running the alternator with the battery disconnected. I’ve seen melted regulators from that mistake. The manual also includes the starting motor performance curves (Chapter 8) so you can bench-test the starter draw against factory specs. If you’re chasing a no-crank, this saves hours of swapping parts.

Disassembly and Reassembly: Special Tools and Valve Seat Correction

Chapter 4 is the heavy lifting. Section 4.1.2 lists the special service tools you need (like the valve spring compressor and piston ring compressor). Then Section 4.2.6 shows how to correct valve seats using a cutter—depth and angle specs included. The cylinder block bore correction (Section 4.4.6) tells you the maximum oversize and the steps for honing. If you’re rebuilding a 70E, you follow this chapter bolt by bolt. The order matters: head bolt tightening sequence is on page 4-23 in the PDF, and it’s not the same as a Cummins.

For related machines, you might also need the Komatsu 50E 60E 70E G 423 Repair Manual”>Komatsu 50E 60E 70E G 423 Repair Manual or the Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual”>Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual if you’re working on the whole machine. The Komatsu WH609-1E0 WH613-1E0 WH713-1E0 WH714H-1E0 WH716-1E0 Workshop Manual”>Komatsu WH609-1E0 WH613-1E0 WH713-1E0 WH714H-1E0 WH716-1E0 Workshop Manual covers other engine series.

If you need a refresher on manual transmission fundamentals, check Manual Transmission”>Manual Transmission on Wikipedia. Also, the basic theory of Manual Transmission”>Manual Transmission operation can help when you’re mating the engine to a gearbox.

Does this manual cover the 76E-5 injection pump rebuild?

Yes. Chapter 7 has the full disassembly and assembly procedure for the fuel injection pump, including timing confirmation. You’ll need the special tool for locking the pump gear.

What torque values are listed for the cylinder head?

Chapter 12 gives the head bolt torque in two stages with a final angle. The exact numbers are on page 12-1 in the Tighten section. I recommend using a torque-angle gauge.

Is the wiring diagram accurate for the 70E with a 20A alternator?

Yes. Section 9.1 covers the 20A alternator wiring diagram, and Section 9.2 covers the 40A version. Both include standard output characteristics and inspection steps. The overall wiring diagram is on page 10-1. It matches the factory harness I’ve worked on.

Can I use this manual for the 76E-5 engine in a 2006 machine?

The manual is dated 2005, but Komatsu didn’t change the core engine design for the 76E-5 until the -6 series. For a 2006 machine, check if your serial number falls within the range listed on the cover. If the engine is the same model, this manual applies.

Bottom line: if you want to rebuild a Komatsu 70E or 76E-5 without guesswork, you need the factory document. Not a reprint from a coffee shop. Not a photocopy someone scanned sideways. This is the original OEM PDF. Access the Factory Manual and keep it on your tablet in the shop. You’ll thank me the first time you hit a torque spec that stops a leak cold.
