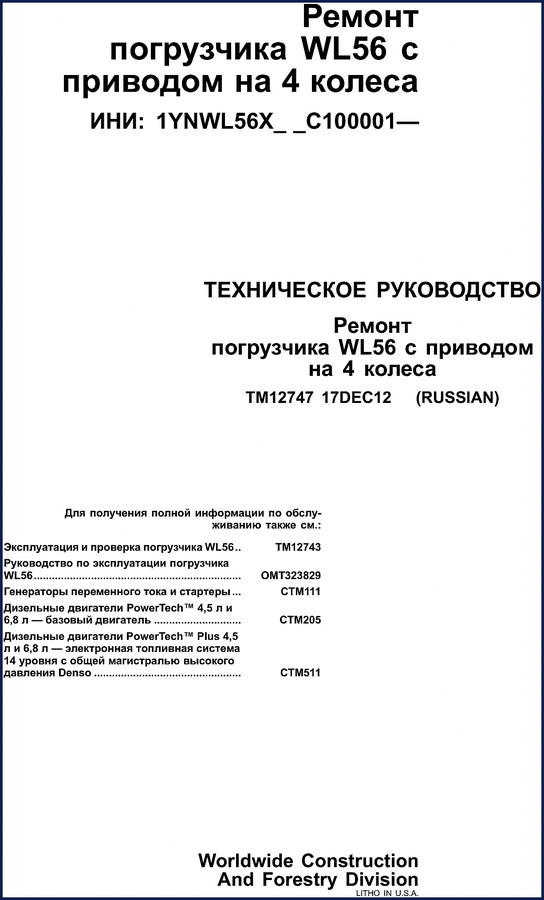

John Deere WL56 2012 Repair Manual – OEM Factory Specs

I’ve seen too many guys ruin a job because they grabbed a third-party manual with wrong torque values. Don’t be that guy. The John Deere WL56 2012 Repair Manual is the only document you should trust for this machine. It’s 316 pages of factory-written procedures, not some aftermarket reprint that skips the critical steps. If you’re working on a WL56, you need the OEM source. Period.

John Deere WL56 2012 Repair Manual: Factory Specs Only

Page 1 lays out the introduction: this manual is for experienced mechanics. It tells you straight up that you need specific tools and that you must read the safety warnings. The manual is organized by system – engine, transmission, axles, wheels, hydraulics. Each chapter starts with a list of required tools, torque specs, and wear tolerances. I’ve used these manuals for twenty-eight years, and I can tell you: the difference between a factory spec and a guess is the difference between a job that lasts and a comeback that costs you a Saturday.

Page 2 contains the safety warnings. I know you’re tempted to skip that section. Don’t. The manual covers high-pressure fluids, moving parts, battery explosion risks, and proper jacking procedures. I’ve had a tech ignore the high-pressure oil warning – he ended up with a facial injection that required surgery. The manual spells it out: “Берегитесь жидкостей под высоким давлением” – that means “Beware of fluids under high pressure.” That’s not a suggestion.

Safety First: Reading the 30-Page Safety Section

The “Общая информация” (General Information) chapter runs nearly thirty pages. It covers everything from operating only from the operator seat to working on slopes. The manual tells you to use personal protective equipment, keep the machine clean of debris, and never modify the loader without authorization. If you’re a home garage guy, this section is your insurance policy. I’ve seen DIYers try to weld on a frame without cleaning the paint – the manual says: “Очистите поверхности от краски перед сваркой или нагревом.” That’s “Clean surfaces of paint before welding or heating.” You do that, you avoid toxic fumes and weak welds.

What Torque Specs Are Included?

Every major fastener torque is listed in the manual. Wheel lug nuts, axle bolts, transmission housing bolts, engine head bolts – all with the correct sequence and angle. The torque values are in the specific chapters, not hidden in an appendix. For example, the “Колеса” (Wheels) chapter gives you the precise torque for the drive wheel nuts. I’ve seen aftermarket manuals give a generic range like “90-110 ft-lbs” – that’s useless. The factory manual says exactly what you need. If you’re rebuilding the transmission, the “Трансмиссия” chapter includes the torque for the clutch pack bolts and the converter housing. No guesswork.

Engine and Transmission Disassembly

The “Двигатель” (Engine) chapter covers removal and installation of the John Deere diesel engine, including the damper and serpentine belt. The manual lists the special tools required – you won’t find that in a generic guide. For the transmission, the “Трансмиссия” section walks you through removing the gearbox, disassembling the clutch packs, and servicing the hydraulic pump. I’ve done a WL56 transmission rebuild using this manual – it took me six hours instead of the ten I’d budgeted if I had to guess. The manual even includes the “гидрораспределитель” (hydraulic control valve) disassembly and the pressure regulator valve. That’s the kind of detail that saves you money.

Keep in mind, the transmission is a power-shift unit with multiple clutches. If you get the pack clearance wrong, the machine won’t move. The manual gives you the exact shim thicknesses. I’ve seen techs use feeler gauges and guess – they end up with a burned clutch. Follow the book.

Wheels, Axles, and Hydraulic Systems

The “Колеса” (Wheels) chapter covers tire mounting and wheel removal. The “Системы мостов и подвески” (Axle and Suspension) chapter goes into front and rear axle removal, oscillating pivot bearings, and planetary final drives. You need to know the procedure for the “качающиеся опоры моста” (axle oscillating supports) – the manual shows you exactly how to replace the wear inserts. The “Вспомогательная система двигателя” (Auxiliary Engine System) chapter covers the cold-start aid and the coolant heater. That’s critical if you’re in a cold climate like I am in San Antonio? No, but we get cold snaps, and the manual tells you how to service the diesel-fired coolant heater. One more thing: the hydraulic system for the transmission includes the pump removal and the pressure regulator – all with factory clearance specs.

If you need more transmission work, check the John Deere 200D & 200DLC Excavator Repair Manual for similar drivetrain components. For a different loader model, the John Deere 325J Backhoe Loader Repair Manual covers a different system but uses the same principles. And for later models, the John Deere 326D 328D 329D 332D 333D 2013 Repair Manual is available – but don’t use it for your 2012 WL56. For a basic understanding of Manual Transmission operation, you can reference general resources, but the factory manual is the only one you should trust. I don’t recommend relying on generic Manual Transmission guides when you have the OEM specs.

Is this manual in English?

No, it’s in Russian. If you’re not comfortable with Russian, find a translator. The diagrams are universal.

Can I use this manual for a 2013 WL56?

Probably not. John Deere often revises manuals for new model years. The 2012 manual covers machines with PIN 1YNWL56X_ _C100001 and up. A 2013 model may have different specs. Always check the PIN and engine model number. Using the wrong manual can lead to incorrect torque values or procedures. Access the correct manual for your specific year. We have other manuals for later years, but they are for different models. Stick to the exact match.

That’s the kind of detail you get from a factory document. No fluff, no reprints, just the original OEM print. Access the Factory Manual and keep it on your tablet or print it. It’s the only way to work on a WL56 right.
