Jeep YJ Wiring Diagram – Factory Electrical Schematics for 1987-1995 Models

Every YJ owner runs into the same headache—chasing an electrical gremlin with a cheap aftermarket diagram that has the wrong wire colors, missing connectors, or skips the fuel pump relay circuit entirely. I’ve seen it a hundred times. A guy spends three hours tracing a no-start condition because the aftermarket drawing shows the ASD relay wired backward. That’s wasted time and money. What you need is the real factory Jeep YJ Wiring Diagram—the same 190-page document dealership techs used. It doesn’t guess. It doesn’t simplify. It shows every splice, every connector, every ground path exactly as Chrysler engineered it.

This isn’t a reprint of some third-party scan. It’s the OEM PDF direct from the factory service manual group. Every wire gauge, every cavity number, every pin location is correct. If you’re working on the fuel injection system, starting circuit, or ABS module, you need this under your hood, not some faded photocopy from a forum post.

What the 190 Pages Cover

The manual organizes everything by subsystem. Sections like 8W-10 Fuse/Fuse Block, 8W-11 Power Distribution, 8W-15 Ground Distribution, 8W-20 Charging System, 8W-21 Starting System, and 8W-30 Fuel/Ignition are all color-coded and cross-referenced. Need the circuit for the fuel pump module? It’s in the Fuel/Ignition section along with the ASD relay, injectors, ignition coil, and every sensor the engine management system uses. The diagrams flow from power source at the top down to ground at the bottom, just like current flows. You don’t have to guess where a wire goes—there’s a connector number and a reference to another page if the circuit continues elsewhere.

Fuel/Ignition System: Tracing the ASD Relay

If your YJ cranks but won’t fire, the first place to look is the Automatic Shut Down relay. The factory diagram shows exactly which cavity on the relay block gets battery feed, which goes to the PCM, and which supplies the fuel injectors and coil. I’ve used this to diagnose a bad ground at the power device ground that killed the ASD circuit on a 1992 YJ. Without the OEM schematic, you’d be swapping parts all day. The manual also gives you the connector pin-outs so you can probe the right terminal without shorting anything.

Why Aftermarket Wiring Diagrams Fail

Aftermarket companies often redraw the circuits to make them look cleaner—and in the process, they drop splice locations, swap pin numbers, or combine grounds incorrectly. I’ve seen diagrams that show the fuel injector circuit with a ground that doesn’t exist on the actual vehicle. That’s how you fry a PCM. The factory manual includes splice information (section 8W-70) and connector locations (8W-90) with physical illustrations showing exactly where each connector lives under the dash or in the engine bay. You can’t get that from a generic wiring poster. For background on why OEM data matters in Automotive Wiring, read up on how Chrysler designed these circuits.

Use the Connector Locations Section to Pinpoint Faults

Section 8W-90 shows connector location drawings. It’s not just a list—it’s an illustration of the connector shape, cavity numbers, and where it physically sits. Combine that with the connector pin-outs in 8W-80, and you can backprobe a sensor connector without guessing which wire is signal, which is power, and which is ground. The manual also includes splice location diagrams, so you can find that buried splice under the carpet that’s corroded. Automotive Industry Overview covers why standardized documentation like this saves diagnostic time.

3 Reasons to Choose OEM Documentation

• Accuracy: Every wire color, gauge, and circuit path matches your actual YJ. No shortcuts.
• Completeness: Covers ABS, transmission controls, interior lighting, radio, wipers, rear window defroster, and all options.
• Safety: Correct fuse ratings and circuit breakers prevent fire hazards. I’ve seen aftermarket diagrams call for a 30A fuse on a circuit that should have a 15A—that’s a meltdown waiting to happen.

The manual also includes the full ABS system—wheel speed sensors, acceleration switch, pump motor relay, hydraulic control unit. If your YJ has the optional antilock brakes, you need this section. Many aftermarket books skip the ABS entirely. That’s not an option when you’re diagnosing a pulsating pedal or a lit warning lamp.

FAQ – Common Questions About This Wiring Diagram

Does this manual cover all model years of the Jeep YJ?

It covers YJ models from 1987 through 1995. The diagrams include notes for differences between wheelbases and optional equipment.

Can I use this to diagnose a no-start caused by the fuel system?

Yes. The Fuel/Ignition section includes the ASD relay, fuel injectors, fuel pump relay, fuel pump module, and the data link connector—everything you need to trace power and ground for fuel delivery. Start with the check engine lamp and the MIL circuit to confirm PCM communication.

What file format is the manual?

PDF, 190 pages, searchable.

I’m a beginner—will I understand the diagrams?

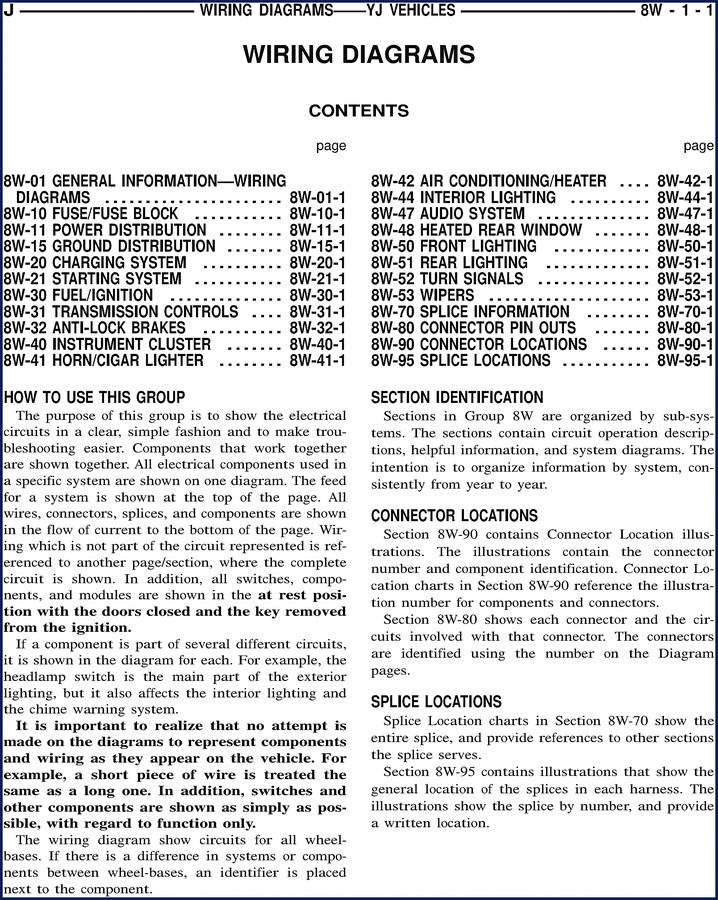

The manual includes a “How to Use This Group” section explaining the layout: power at top, ground at bottom, switches shown at rest. Components are grouped by system. You need a basic multimeter and the ability to read a schematic, but the diagrams are drawn clearly. If you’ve ever wired a trailer light, you can follow these. Pair it with a factory service manual for torque specs and repair procedures. Related manuals: Jeep Wrangler Wiring Diagram – 246 Pages Factory Specs for the TJ model, or Jeep ZG Wiring Diagram – 488 Pages OEM Factory Specs for Grand Cherokee, and Jeep XJ Wiring Diagrams Table of Contents for Cherokee.

Stop wasting time with diagrams that lie. Get the real OEM wiring diagram for your Jeep YJ and fix the problem the right way. Access the Factory Manual now and keep it on your tablet or printed under the hood.
