JCB JCB 7, JCB 7C, JCB 8C, JCB 8D Parts Catalog

You’ve got a JCB 7 or 8 series machine down. You need a bucket, a tooth, or a whole face shovel assembly. Ordering the wrong part because you guessed from a blurry photo costs you time and money. This factory parts catalog—497 pages of JCB-issued part numbers and exploded views—fixes that problem. No aftermarket guesswork. Just the exact part numbers JCB uses on the line.

What This Parts Catalog Covers

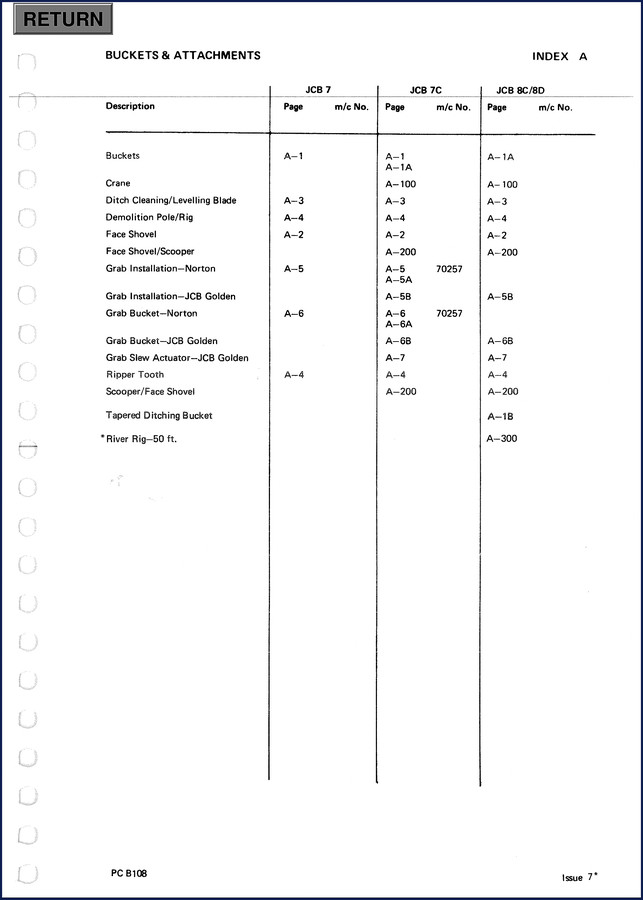

Four models: JCB 7, JCB 7C, JCB 8C, JCB 8D. The index starts at page A-1 and works through Buckets, Crane, Ditch Cleaning Blade, Demolition Pole, Face Shovel, Grab Installations (Norton and JCB Golden), Ripper Tooth, Scooper, Tapered Ditching Bucket, and even a 50-foot River Rig. Every section shows the machine compatibility (m/c No.) so you know which part fits which serial number range.

Buckets (Page A-1): The Fine Print

Page A-1 lists buckets from 18 inches to 48 inches, including a 1½ cubic yard model. Each bucket entry includes items 6 through 12: side cutters, teeth (2½-inch and 3-inch), bolts, nuts, bushes, grease nipples, and toe plates. The catalog notes supersessions—for example, part number 538/02200 for the 24-inch bucket is superseded and to see page A-1B. If you need a tooth socket or a specific bush for a 24-inch bucket only, the remarks column tells you. That kind of detail keeps a wrench from spinning on the wrong part.

Face Shovel and Tapered Ditching Bucket: Page A-2 and A-1B

Page A-2 breaks down the face shovel assembly: key numbers 1 through 20 cover the shovel, tipping linkage, pivot pins, spring bushes, hoses (left and right side), and the door adapter plate. Page A-1B covers the tapered ditching bucket, with separate part numbers for the bucket, bush, tooth, nut/bolt, washer, side cutters, and toe plate. Every grease nipple location is listed. You won’t miss a single fastener.

Why Factory Part Numbers Matter

I’ve seen too many guys grab a generic bucket tooth from a bin and spend an hour grinding it to fit. Then it cracks. Then you buy the real one anyway. This catalog gives you the OEM JCB number—something like 538/00101 for the 2½-inch tooth. Order that and it drops in. The same goes for hoses, pins, and bushings. You also get machine-specific notes: “Fitted to 18in. Bucket Only” or “Welded to Rock Bucket.” That’s the difference between a parts catalog that works and a parts catalog that wastes your time.
