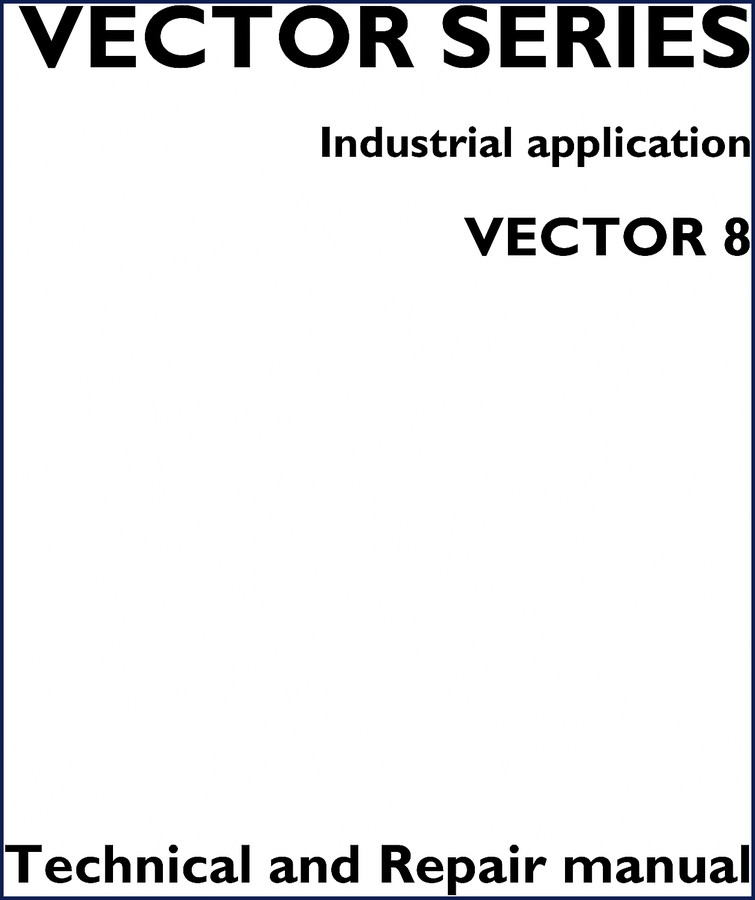

Iveco VECTOR, VECTOR 8 2006 Repair Manual

If you are wrenching on an Iveco VECTOR or VECTOR 8 engine and you don’t have the factory Iveco VECTOR, VECTOR 8 2006 Repair Manual sitting next to you, you are guessing. And guessing on a common rail diesel with an ADEM III controller gets expensive fast. This is a 206-page OEM document from Iveco Motors, first edition 04.2006. It covers the VECTOR series industrial engines used in gen sets, irrigation, and off-highway equipment. Not a generic aftermarket rehash — this is the actual binder the factory technicians use.

Iveco VECTOR VECTOR 8 2006 Repair Manual: Engine Overhaul Section

Section 3, Part One is where you live if you are doing a rebuild. It goes through dismantling, installing components, fitting the flywheel cover housing, rear oil seal, and the flywheel itself. There is a dedicated subsection on the Common Rail assembly procedure — cleaning, preparation, assembly, and a test procedure for checking diesel leaks from the rail. And it includes the clearance data for 8-cylinder engines. Torque values are given in both Nm and lb-ft so you don’t have to convert on the fly.

Factory data only. No aftermarket approximations.

Does This Manual Cover the Common Rail Fuel System?

Section 2 is entirely fuel. High-pressure electronic injection common rail system, with full description of the electrical system, fuel system diagram, main mechanical components. It breaks down the low-pressure pumps for different applications: G-DRIVE, SPRINKLER, DRAGON, GRIFFON. Also covers the high-pressure pump operating principle, the rail, and the electro-injector. If you have a VECTOR 8 with a common rail, this is the only document you can trust for injection timing and rail pressure specs.

3 Major Sections in This Manual

The manual is split into three numbered sections: General specifications (lubrication, cooling, supercharging), Fuel (as above), and Industrial application. Industrial application is the big one — 125+ pages covering mechanical components, electrical equipment, diagnostics, and planned maintenance. The diagnostics part includes troubleshooting with tool 99368550 and the ILC Simulator 99368543 tool. That’s the level of detail you need when the ADEM III control unit throws a code you have never seen.

Get the Right Torque Data from the Specs

For any engine rebuild, torque specs are the difference between a leak-free engine and a come-back. This manual lists tightening torque values for the flywheel, rocker arm assembly, injector installation, and the common rail components. Do not rely on aftermarket torque tables — they can be off by 10-15%. The OEM values here are the ones Iveco validated.

Electrical Diagnostics: Factory Wiring and Troubleshooting

The Second Part of Section 3 is Electrical Equipment. It gives location of components on the engine, circuit diagram of engine cable, and full description of the ADEM III engine control unit. The Third Part covers diagnostics with step-by-step connection procedures for tool 99368550. There is an events table and faults table. If you are tracing a no-start or a limp-mode issue, you need this wiring data. Related manuals include Iveco Experience with SCR in Commercial Vehicles and Iveco FI SERIES F1A F1C Technical and Repair Manual – Section: Fi Engines. For a broader perspective on Manual Transmission systems, see external documentation. Also check IVECO EuroCargo Motor Tector Sistema EDC7 Repair for similar diagnostics on EDC7.

Who This Manual Is For

If you are a technician working on Iveco VECTOR 8 engines in a shop, or a DIY owner maintaining a generator set or irrigation pump, this manual gets you the factory procedures. Do not rely on Haynes or Chilton for a commercial diesel — they lack injection timing and ECU diagnostics. This manual is for anyone who needs to overhaul the engine, replace injectors, adjust rocker arms, or troubleshoot the common rail system. Beginners will need basic tools and a torque wrench; the manual assumes you can read a wiring diagram, but steps are laid out clearly.

Original OEM Print – Not an Aftermarket Copy

This is a direct scan of the Iveco-published manual. It has the original part number Print P2D32V001E, dated 04.2006. Aftermarket manuals often skip the bonding and screening notes for the electric system, or omit the ILC simulator tool procedures. This one includes everything from the factory binder: symbols, warnings, bonding and screening requirements, optional electrical and mechanical parts installations. You get the full table of contents and all 206 pages.

Frequently Asked Questions

Is this manual for both VECTOR and VECTOR 8 engines?

Yes. It covers the entire VECTOR series, with specific sections for the VECTOR 8. The TOC includes “VECTOR 8 ENGINES” with dedicated specs.

Does it include wiring diagrams for the ADEM III?

Yes, in the Second Part of Section 3. It provides circuit diagrams of the engine cable, location of components, and full electrical system description. The manual also covers bonding and screening procedures for the electric system, which is often missing from aftermarket copies. If you are tracing a short or a no-communication fault, you need these diagrams. The diagnostics section includes connection procedures for tool 99368550 to read fault codes and parameters.

What is the publication year and page count?

2006, first edition. 206 pages total.

Can I use this manual for the G-DRIVE or SPRINKLER applications?

Yes. The manual has variant sections for brake air compressor, air/air intercooler (Dragon, G-Drive, Griffon) and air/water intercooler (Sprinkler). Fuel system subsections differentiate low-pressure pumps for each application.

Stop working from memory or internet forum posts. Get the factory data. Even if you work on Manual Transmission regularly, the engine side is different. Access the Factory Manual now.
