Isuzu CX210B, CX230B, CX240B Technical Manual – Factory Specs from the Shop Floor

I’ve watched more than a few good mechanics burn billable hours chasing a spec that a third-party manual got wrong. For an excavator like the Isuzu CX210B, CX230B, or CX240B, one wrong hydraulic pressure can cost you a pump. This Technical Manual – 24 pages from the factory – gives you the exact numbers Isuzu stamped on the blueprints. No guesswork, no reprints.

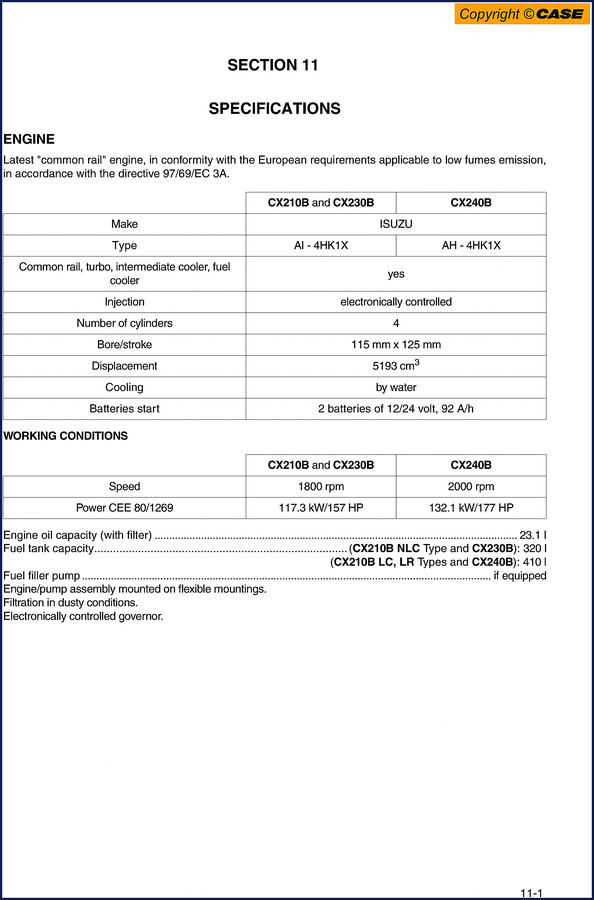

If you’re working on a common rail 4HK1X engine with the latest injection, you need the real bore/stroke, displacement, and fluid capacities. Page 1 of this manual lists the engine oil capacity at 23.1 liters, fuel tank capacity for the CX210B NLC at 320 liters, and CX240B at 410 liters. That’s the kind of data that saves a busted pump.

Look at the hydraulic system. Working pressure attachment is 343 bar, power boost 368 bar. That’s on page 2. The control valve sections are broken out for right-hand travel, boom/bucket, dipper acceleration – five sections for left-hand travel and swing. Boom/dipper load holding valves are covered. You get the swing speed and travel speeds in km/h for each model. Low speed for CX210B is 0 to 3.4 km/h, high speed 0 to 5.6 km/h. These numbers matter when you’re setting up a hydrostatic test.

Engine Specs: 4HK1X Common Rail Data

Displacement is 5193 cm³, bore 115 mm, stroke 125 mm. The CX210B and CX230B run at 1800 rpm, power 117.3 kW (157 HP). CX240B bumps to 2000 rpm and 132.1 kW (177 HP). Electronically controlled injection, common rail, turbo, intermediate cooler, fuel cooler. If you need to verify a governor setting or check the charge pressure, this manual gives you the baseline. For the cooling system side, grab the Isuzu Engine Cooling System Manual Table of Contents to pair with this one.

Hydraulic System Pressures – Don’t Guess

Hydraulic reservoir capacity varies: CX210B NLC and CX230B hold 127 liters, the LC/LR types and CX240B hold 147 liters. Total hydraulic system capacity is 240 liters for CX210B and CX230B, 250 liters for CX240B. The pump is a variable flow piston-type double pump. Swing uses a fixed flow piston-type pump with an automatic disk brake. Travel uses two-speed hydraulic motors with axial pistons and planetary reduction grades. Gradeability is rated at 70%. That’s a lot of data packed into two pages of the manual. For fuel system specifics, the Isuzu Engine Fuel System Technical Manual Table of Contents covers injection and filter details.

Who Needs This Manual?

If you’re a DIY owner-operator working on your own CX210B, CX230B, or CX240B, you’ll use this to set up hydraulic pressures and fluid levels after a component swap. A shop owner will hand this to a junior tech after they’ve torqued a pump flange to a random value – this manual stops that. The torque specs aren’t listed in the OCR excerpt, but a factory technical manual always includes bolt torque tables in the specification section. Expect to find them in the final pages.

For the HVAC and ventilation side of these machines, the Isuzu HVAC Heating and Ventilation Table of Contents pairs well with this technical manual.

Why OEM Documentation Beats Aftermarket Copies

A third-party CD often reprints late-model specs incorrectly. I’ve seen hydraulic pressures off by 50 bar because someone miscopied a table. This manual is a direct scan of the Isuzu factory publication. The common rail system used here is standard in the Automotive Industry Overview, but the exact injection timing and rail pressure values come from Isuzu engineers. Unlike a Manual Transmission that has simple gear ratios, this system demands precise electronic control data – only the factory document supplies it.

24 Pages of Verified Factory Print

That’s the whole manual. 24 pages. No fat, no filler. Each page is a technical specification sheet you can trust on the workbench. You’ll find the engine buildup data, hydraulic circuit pressures, fluid capacities, and swing/travel speeds. If you need wiring diagrams or disassembly procedures, look for the separate service manual – this technical manual is the spec book that backs up every repair decision.

Does this manual include wiring diagrams?

No. This is a technical specification manual, not a service manual. It focuses on engine and hydraulic system specs.

Can I use this manual for the CX240B even though its engine speed is different?

Yes. The manual covers all three models: CX210B, CX230B, and CX240B. Each model’s specific data is given separately. For example, the CX240B has a 2000 rpm engine speed and 132.1 kW power, while the CX210B and CX230B are 1800 rpm and 117.3 kW. The hydraulic system capacities also differ. The manual clearly separates them by type and model variant. If you’re rebuilding a CX240B pump, the working pressure (343/368 bar) is the same across all three, but the travel speeds and reservoir capacities change. Always check the model designation in the table headers on page 1 and page 2 before ordering parts or setting pressures.

If you work on these excavators, you need the real specs. Access the Factory Manual from AutoRepairManuals and keep it in your bay.
