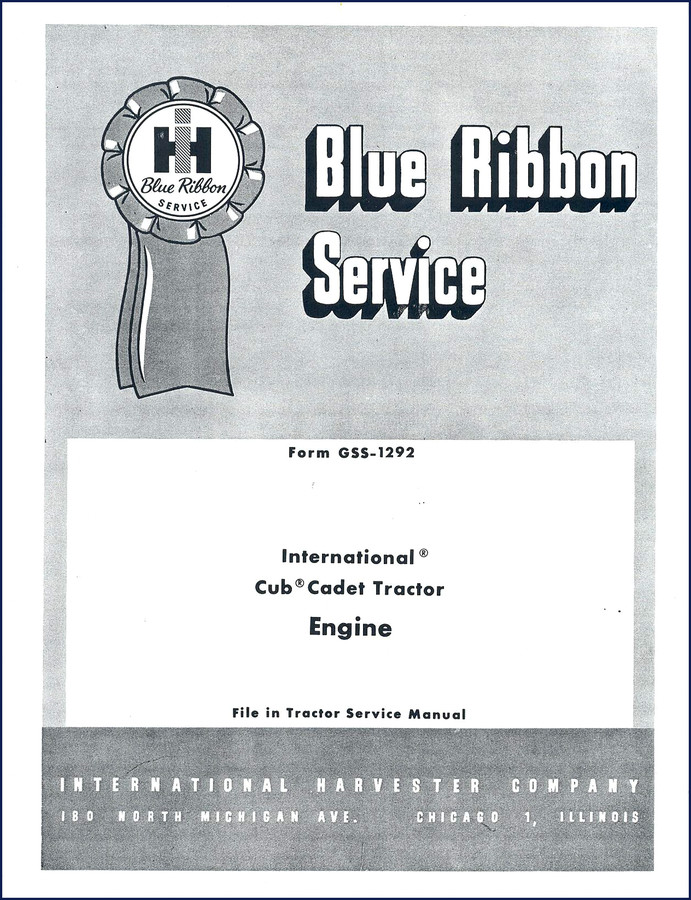

International Harvester Cub Cadet Tractor Service Manual – 31 Pages of Factory Procedure

If you’ve been chasing a misfire on your International Harvester Cub Cadet Tractor and found yourself staring at a parts-store generic that tells you to “remove the bolts” without telling you which bolts or at what torque, you know the frustration. That’s not a manual – that’s a guess. This 31-page factory Service Manual is the one IH printed for their own dealers. It assumes you have tools, know how to use them, and just need the numbers. No padding, no marketing fluff.

Specifications Page 4: Bore, Stroke, Compression – No Surprises

Right on page 4 you get the engine specs. Single cylinder, 2-7/8 inch bore, 2-1/2 inch stroke, 16.1/4 inch displacement. Compression pressure spec: 110 to 126 psi. Those numbers come from the factory, not a third-party hack. If you’re doing a rebuild and don’t know the bore, you’re not ready to pull the head. Get the spec before you touch the cylinder.

Want the full tear-down order? Engine removal covers the electric start and manual start variants separately – page 7. The disassembly procedure follows the same logic IH used on the line: remove the sheet metal, pull the flywheel, get to the crankshaft. Don’t skip the oil seal installation sequence on page 13. I’ve seen guys ruin a rebuild by jamming a seal in dry. The manual tells you exactly how to seat it.

Crankshaft inspection and repair is covered on page 9. Check for out-of-round, score marks, and journal wear. The cylinder block recoring section (page 9 again) – if the bore taper is more than 0.003 inch, you need to re-sleeve or rebore. That’s the kind of threshold a generic manual leaves out.

Engine Disassembly and Reassembly – Step by Step with Torque Steps

The engine section runs from removal through full reassembly. Valve tappets and camshaft go in first – page 11. Then crankshaft installation, bearing plates (page 12), rod attachment. Each step has a note on which bolts need thread locker and which don’t. The cylinder head torque sequence? Following the pattern on page 15 prevents warpage. I can’t tell you how many head gasket failures I’ve traced to a tech who thought “tight enough” was a spec.

Connecting rod, piston, piston pin – all inspected on pages 9-10. Check the ring end gap before you slide them in. The manual doesn’t give a ring gap number in the excerpt, but the inspection section tells you to measure it. That means you need a feeler gauge and the factory tolerance table. If you need those numbers, the manual has them in the specifications section.

Electrical System: Timing, Breaker Points, Condenser Testing

Ignition timing is on page 25. Whether you’re running battery ignition or magneto, the procedure is laid out stepwise with timing marks shown in the illustrations. Breaker assembly and point gap are covered on the same page. Need to test the condenser? There’s a section on page 25 for that too. Don’t replace parts until you’ve confirmed the condenser is bad – the manual walks you through the multimeter checks.

Current-voltage regulator adjustment (page 22) – that’s for the charging system if you have electric start. If you’re running a manual-start tractor, skip to the magneto section on page 21. The wiring diagrams are not generic; they match the actual harness colors used by IH.

Governor and Carburetor – Fine Adjustment Without Guesswork

The governor section (page 20) covers throttle control and governor adjustment. Set the static position before you start the engine. If the engine surges at idle, the manual tells you to check for binding linkage before touching the carb. Carburetor adjustment is on page 17 – idle mixture screw turns out 1-1/2 to 2 turns, then fine-tune from there. Full disassembly and cleaning procedure on page 18. If you’ve ever tried to rebuild a Kohler K161 without the float height spec, you’ve wasted time. The manual gives it to you.

Recoil starter rebuild (pages 26-27) – removal, disassembly, inspection, reassembly, and installation. The spring can kill you if it lets go. The manual tells you to wear safety glasses and use a winding tool. That’s not a suggestion; it’s a warning I respect.

Why OEM Beats Aftermarket Every Time

This manual is a factory scan from International Harvester, not a copy written by someone who read the original. Aftermarket manuals often transpose torque values or omit the step about oiling the seal lip before installation. I’ve had to redo jobs because a “compatible” manual said 15 ft-lb when the real spec was 20. The only way to be sure is to use the source IH used for their own service departments. This is that source.

For related equipment, check the International Harvester Motor Truck Service Manual or the IH Cub Cadet 73 106 107 126 127 147 Service Manual. For later models, the International Harvester Cub Cadet Service Manual 1979 covers different engine families. If you need background on Manual Transmission theory, that’s outside this manual’s scope. For torque standards, refer to SAE International Standards.

FAQ – Common Questions from Guys Who Work on These

Does this manual cover the electric starter removal?

Yes. Page 7 has the removal procedure for the electric starting variant. Two bolts, disconnect the battery first.

What torque values are listed for the crankshaft bearing plate?

The manual does not list a numeric torque in the excerpt I see, but the reassembly section on page 12 references “tighten evenly to specification.” The full manual contains the torque table on page 4 or in the engine specs section. You’ll find the exact ft-lb number there, not a generic range.

How do I adjust the governor without an IH service tool?

Page 20 shows the procedure: loosen the clamp screw, rotate governor shaft to full throttle position, then tighten. The engine must be stopped. After adjustment, start and check for hunting. If it still surges, inspect linkage for wear before tweaking carb settings. The manual includes a note about using a tachometer to set correct idle speed – that’s your tool.

Can I use this manual for a Kohler K161S engine?

Yes. The manual specifically covers both K161S (electric start) and K161T (retractable starter). The specifications page lists both models. All engine internal procedures apply to both.

Stop wasting time on manuals that leave out the details you need. This factory document gives you the procedures that IH technicians followed. Get your rebuild right the first time. Access the Factory Manual now.
