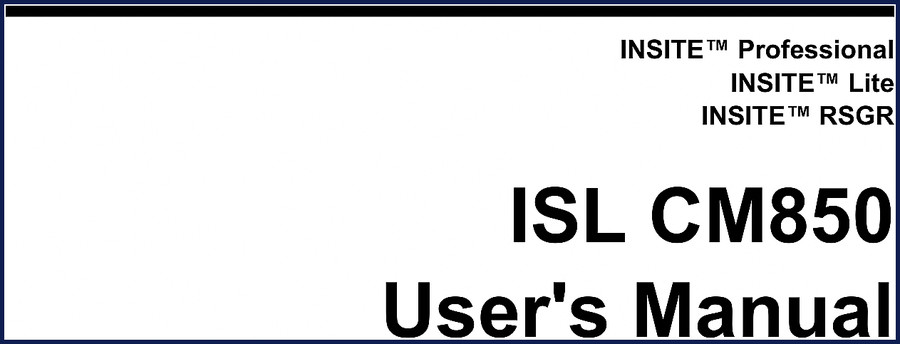

Insite CM850 User Manual

Trying to get an Insite CM850 ECM to handshake with your PC without the factory documentation is how you end up with a bricked module and a flat-rate nightmare. Aftermarket PDFs skip the critical steps – like proper password authorization or the exact menu path to reflash. That costs you time and parts. The Insite CM850 User Manual is 207 pages of factory procedures, not a photocopy from a third party. Every section comes from the OEM document that Cummins dealers use. You want the ECM to talk? You start here.

If you’ve ever fought with a CM850 that refused to accept a password or dropped the connection mid-access, you know the value of having the exact screen flow in front of you. This manual breaks down the software interface – from the Viewbar to the Status Bar – so you’re not guessing which button does what. Page 3 shows you the INSITE Window layout with every toolbar icon labeled. No generic reprint. No guesswork.

Getting Started: What INSITE Is and How to Register It

You do not skip the registration step. The manual walks you through what INSITE is, how to register your copy, and how to use the Help System (with Help Window and Help Links). It’s on page 1. If you’re running INSITE Lite or RSGR, the differences are spelled out. Don’t assume all versions behave the same – the OEM manual catches the variants.

INSITE Connection: Cables, Options, and ECM Handshake

Page 8 covers Connecting your PC to an ECM. It lists the Connection Options – DDL, RP1210, direct serial. It tells you when to use New Connection versus an existing profile. Aftermarket manuals leave out the exact driver requirements and handshake timing. Here you get the factory sequence. If the ECM won’t respond, check your cable against the specs in this chapter. That alone can save you an hour of swapping adapters.

Setting Passwords: ECM Passwords and PowerSpec Authorization

Pages 10 through 13 detail ECM Passwords – Add, Lock, Change, Disable, Remove. Then PowerSpec Authorization. Many shops get stuck because they don’t realize the ECM is still locked from a previous job. This manual gives you the exact procedure to clear and set passwords. You’ll also find the PowerSpec authorization flow, which is critical before flashing certain calibrations. Miss that step, and the ECM rejects the file.

How to Use the Viewbar and Status Bar for Faster Diagnostics

The Viewbar and Status Bar aren’t decoration. The manual on page 3-4 explains each icon’s function and what the Status Bar tells you about ECM communication status. On page 6, the Status Bar Information section covers what each status message means – like “Data Link Active” or “ECM Not Responding”. That diagnostic feedback alone can tell you whether the problem is software, hardware, or the ECM itself.

Real-World Use: Diagnosing a CM850 That Won’t Connect

You get a truck with an ISL CM850 that cranks but has no communication. Where do you start? The manual’s INSITE Connection chapter (page 8-9) gives you the step-by-step: verify power and ground at the DDL connector, confirm the correct COM port in your PC’s device manager, then try a New Connection with the proper ECM type selected. Aftermarket documents rush through this. The OEM version includes troubleshooting notes – like checking for bent pins or a blown fuse – that aren’t in the generic reprints.

Why Aftermarket Manuals Don’t Cut It for ECM Work

I’ve seen techs bring in a photocopied “factory” manual that was missing half the menu trees. For CM850 work, you need the exact password lock flow and the PowerSpec authorization sequence. Aftermarket sellers often strip out the help system links and leave the screenshots pixelated. The Insite CM850 User Manual here is scanned from the original Cummins document – 207 pages, full TOC, no missing sections. Check the “About” sections on each page – they explain what the module expects. That matters when you’re teaching a junior tech.

Does this manual cover wiring diagrams?

No. This is a user manual for the INSITE software interface. Wiring diagrams are in the separate engine service manual.

Can I use this to reflash the ECM?

Yes, but you need the appropriate calibration files and INSITE’s flash capability. The manual covers the software environment, connection, and password management. For reflashing, you need the correct calibration files and to access the ECM programming menu. However, the factory service manual (not this user manual) provides the step-by-step procedure for each specific engine. This manual does include the authorization steps for PowerSpec, which is required before flashing some ECMs. You’ll also need the proper cable – the manual lists the recommended adapters on page 8. Without that, you risk corrupting the ECM.

Is this manual for ISL engines only?

It covers the ISL CM850 as indicated on the cover.

Do I need special cables?

The manual lists connection options on page 8. You typically need a DDL or RP1210 adapter. It details pinout and communication settings.

• Insite ISX User Manual – Factory Diagnostics for ISX Engines
• INSITE ISM-CM876 User’s Manual
• INSITE ISC/ISL CM2100 User’s Manual

For transmission-related diagnostics, the Manual Transmission section in the OEM chassis manual covers that. If you’re dealing with a complete drivetrain rebuild, the separate Manual Transmission service manual has the tear-down specs.

So stop fighting with incomplete PDFs. Access the factory manual and get the real Insite CM850 User Manual on your bench. That’s the difference between a repair that works and a comeback.
