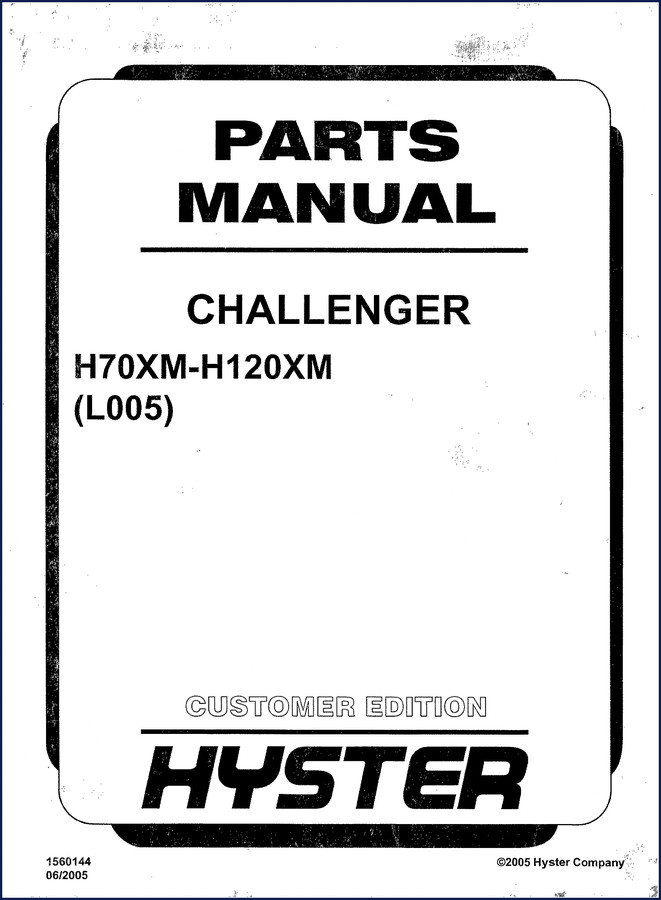

Hyster H70XM, H120XM 2005 Parts Catalog

I’ve been an ASE Master Tech for 28 years. If you’re ordering parts for a 2005 Hyster H70XM or H120XM, the difference between a correct fix and a wasted afternoon comes down to whether you have the factory parts book. This is the real thing: the Hyster H70XM, H120XM 2005 Parts Catalog, 580 pages of OEM exploded views, part numbers, and cross-references. Not a scanned aftermarket copy with fuzzy numbers you can’t read. This is the same book Hyster dealers use.

Engine Assembly and Fuel System Coverage

The manual breaks down the Engine Assembly (Section 2) and Fuel System (Section 3) with separate subsections for diesel Tier II, gas, and LPG variants. Need the air filter for a diesel? That’s on page 3-6. Gas and LPG filter is listed on page 3-22. Every gasket, seal, and mounting bracket is drawn and numbered. If your H70XM has a 4.3L EPA compliant engine, the intake and filter system is covered on page 3-18. No guesswork about which part fits which fuel type.

Transmission and Brake Systems: Factory Part Numbers

Transmission (Section 5) and Brake System (Section 8) are two areas where aftermarket catalogs routinely swap numbers. This manual gives you the factory brake assembly breakdown for H100-120XM on page 8-18 and for H70-90XM on page 8-2. Back-up alarm, brake relay assembly—it’s all there with original Hyster part numbers. You won’t waste time cross-referencing counterfeit parts.

Electrical System and the Freinsolite Alternator

Section 4 covers the Electrical System. The alternator listing splits into Freinsolite brand (page 4-26) and GS, LPS, DS (page 4-24). That means you can match your truck’s serial number to the exact alternator mount and wiring harness. Also includes amber strobe reverse lights and without rear drive lights wiring for gasoline and diesel Tier II models. If you’re troubleshooting a charging system, the part number is what you need first.

14 Sections Organized by System

The table of contents lists 14 major sections: Frame, Engine Assembly, Fuel System, Electrical System, Transmission, Drive Axle, Steering System, Brake System, Hydraulic System, three mast sections (Two-Stage Limited Free-Lift, Two-Stage Full Free-Lift, Three-Stage Full Free-Lift), Options, and a Numerical Index. Each section has its own tab for quick thumbing. The Options section alone is 50+ pages covering cab attachments, door assemblies, auxiliary tube extensions, and more. That’s the depth you get from an OEM parts catalog.

How the Numerical Index Saves You Time

When you have an old part number or a part name like “accumulator”, flip to Section 14, the Numerical Index. It lists every component alphabetically with a page reference. For example, ACCUMULATOR appears on page 13-48. Turn there and you get the exploded view with the correct part number and quantity required. No flipping through all 580 pages. The index also cross-references by part number if you have one. This is the fastest way to confirm a part without calling the dealer.

Can I use this to identify a part from a serial number break?

Yes, the manual includes serial number breaks for many components.

How do I find a part number if I only know the part name (like ‘accumulator’)?

Use the Numerical Index (Section 14) which lists every part alphabetically with page references. For example, ACCUMULATOR is on page 13-48. Then go to that page to see the exploded diagram and part number. The index also cross-references by part number if you have one. It’s not a service manual, so you won’t find installation steps, but for ordering parts it’s the most accurate source outside Hyster itself.

Don’t gamble with guesswork. Access the Factory Manual from AutoRepairManuals and keep your Hyster running with genuine OEM data.
