Honda VTX1800R 2001 Service Manual – 473 Pages Factory Specs

Description

I’ve torqued head bolts on more engines than most people have had hot meals. When a manual doesn’t give you the exact factory torque sequence, you’re guessing. That’s how bolts strip and gaskets leak. The Honda VTX1800R 2001 Service Manual is the real deal – factory-issued from Honda Motor Co., Ltd., not some aftermarket reprint that leaves out critical steps. If you’re working on a VTX1800R, this 473-page document is what you need on the bench, not a Chilton or Haynes that lumps three models together. The manual starts with safety warnings – and you better read them. Section 1 gives you service rules, model identification, torque values, and tool lists. That’s the foundation.

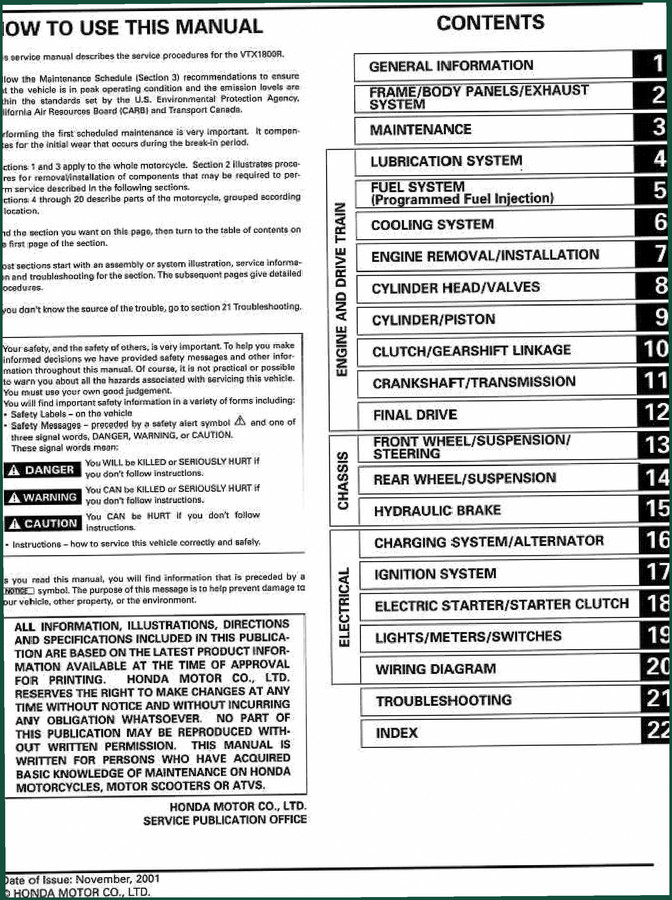

That opening page I quoted – “How to Use This Manual” – sets the tone. Honda tells you to follow the Maintenance Schedule in Section 3 to keep the bike within EPA and California Air Resources Board standards. They don’t mess around. You’ll find sections on everything from the programmed fuel injection system to the crankshaft and transmission. The manual is split into three major groups: General Information, Engine and Drive Train, Chassis, and Electrical. Each section has its own troubleshooting and detailed procedures. No wasted space.

473 Pages of Factory Procedure

The manual covers 21 numbered sections plus an index. Section 2 covers Frame/Body Panels/Exhaust System. Section 4 is Lubrication System, Section 5 is Fuel System (Programmed Fuel Injection), Section 6 is Cooling System. You get the idea. Each section starts with an assembly illustration, service information, and troubleshooting. Then the step-by-step procedures. For the engine, you get Engine Removal/Installation (Section 7), Cylinder Head/Valves (Section 8), Cylinder/Piston (Section 9), Clutch/Gearshift Linkage (Section 10), and Crankshaft/Transmission (Section 11). That’s where you’ll find the specs for the crankshaft journals and transmission gears. The manual also covers Final Drive (Section 12), Front Wheel/Suspension/Steering (Section 13), Rear Wheel/Suspension (Section 14), and Hydraulic Brake (Section 15). If you’re rebuilding the brake system, Section 15 gives you the factory bleed procedure and torque specs for the caliper bolts. Don’t guess.

Does the Manual Cover the Crankshaft and Transmission?

Yes, and that section (11) is critical. The crankshaft assembly, connecting rods, and transmission are all covered with wear limits and assembly notes. Honda provides the tolerance for the crankshaft journal oil clearance and the shift fork thickness. Without this manual, you’re risking a seized bearing or a missed gear. The transmission section includes disassembly and reassembly of the gear train, shift drum, and shift forks. If you’re splitting the cases, you need this.

Fuel System: Programmed Fuel Injection Diagnostics

Section 5 covers the programmed fuel injection system. That’s the EFI setup on the VTX1800R. The manual includes troubleshooting for fuel pump, injectors, throttle body, and sensors. You’ll find the fuel pressure specs and the idle speed adjustment procedure. Aftermarket manuals often skip the step-by-step diagnostic flow charts. This one has them. If your bike is running rich or lean, this section will save you from throwing parts at it.

Who Needs This Service Manual?

If you own a 2001 VTX1800R and do your own maintenance, you need this. Whether you’re changing oil (Maintenance section) or rebuilding the cylinder head, the manual gives you the correct torque values – like for the cylinder head bolts in Section 8. It also lists the special tools required. For professional mechanics, this manual prevents liability. If you don’t have the factory spec for a suspension bolt or brake caliper, you’re not doing the job right. Beginners should start with Section 3 (Maintenance) and work up. The manual assumes basic knowledge, but it explains each procedure clearly.

OEM Documentation vs. Aftermarket Reprints

I’ve seen too many techs rely on third-party manuals that misstate a torque spec by 10 ft-lb. That’s a blown head gasket or a cracked casting. This is an original Honda Service Manual, printed in 2001 by Honda Motor Co., Ltd. It’s the same manual the dealership techs used. The wiring diagram in Section 22 is factory-correct. Aftermarket copies often re-scan or omit pages. This PDF is a direct scan of the original. For more context on modern automotive service standards, check Automotive Industry Overview. And if you’re working on a manual transmission from another vehicle, Manual Transmission offers relevant background. But for the VTX1800R, this is the only source you should trust.

Trust the factory manual.

Does this manual include wiring diagrams?

Yes, Section 22 is a full Wiring Diagram. It shows color codes and connector locations.

Can I use this manual for a VTX1800C or other model?

This manual is specific to the 2001 VTX1800R. The VTX1800C for example has a different rear suspension linkage, different brake caliper mounting, and the fuel injection calibration is different. Using torque values from this manual on a C model could strip bolts or cause brake failure. The wiring diagrams are also unique due to different lighting and instrument cluster. For your safety and the bike’s reliability, always use the manual that matches your exact model and year. The Honda VTX1800R service manual is precise, but only for the R.

What about torque specs for the cylinder head?

Those are in Section 1 (General Information) under Torque Values. The manual gives the torque in ft-lb and includes the tightening sequence. Do not skip the sequence.

Is this a physical or digital manual?

Digital PDF format. You can print pages as needed. No waiting for shipping.

Related Manuals from AutoRepairManuals

• Honda VT600C 1998 Service Manual – Factory OEM Repair Guide
• Honda VFR800/A 2002 Service Manual – OEM Factory Repair Guide
• 1994 Honda Civic Service Manual OEM Factory Specs

If you’re serious about working on your 2001 VTX1800R, don’t trust a generic manual. Get the factory data that Honda designed for this bike. Access the Factory Manual today and keep it on your bench.
