Hitachi Sumitomo SH210-5 Parts Catalog – 878 Pages

Description

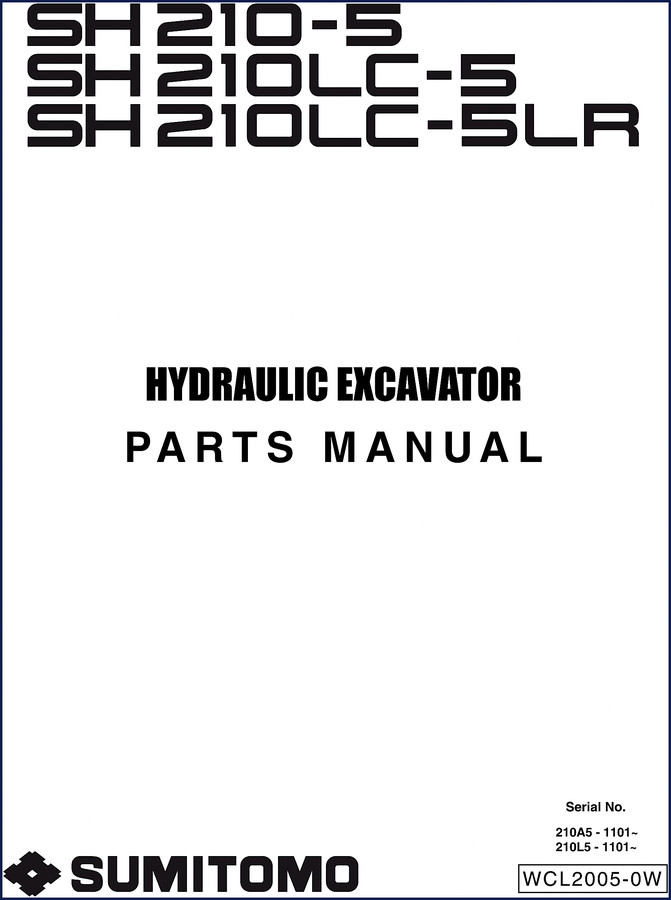

If you’ve ever wasted a Saturday afternoon because the parts counter gave you the wrong bushing for an SH210-5, you already know why this catalog matters. Hitachi Sumitomo SH210-5, SH210LC-5, SH210LCR-5LR Parts Catalog – 878 pages, original factory print. Every part number in here came off the same assembly line as the machine you’re working on. No aftermarket reinterpretation, no photocopied blur. This is what the dealer uses when he looks up your order.

Serial number range is right on page 1: 210A5-1101 and 210L5-1101. That tells you if this catalog fits your machine. If your rig falls inside those numbers, you’re covered. Outside them? You need the next revision. That’s the kind of precision you don’t get from a obtained scan off some forum.

The area map on page 3 breaks it down: DA for lowers, DB for swing frames, DC for rev equipment, DH for engines, DJ for controls, DM for attachments, DN for operator cab, DP for accessories, DR for electric parts, DV for backhoe attachments, and ZA for inner parts. Eleven sections. Eleven. No guessing which group a part lives in.

ZA Inner Parts: The Section You’ll Wear Out

Inner parts – seals, bearings, pistons, valve spools – those are the parts that fail on a 5000-hour machine. ZA area in this catalog lists every internal component for the hydraulic system, swing gear, and final drives. If you’re rebuilding a stick cylinder, you flip to ZA, find the seal kit part number, and order it. No cross-referencing with aftermarket sites that might have the wrong dimensions.

7 System Areas Mapped for Fast Part Lookup

Look at the area map again. DA (lowers), DB (swing frames), DC (rev equipment), DH (engines), DJ (controls & lines), DV (backhoe attachments), and the rest. That’s seven major mechanical systems mapped out with their own area codes. Each code ties to a page range in the index. You don’t flip through 878 pages blind – you read the map, go to the code, find your part. Why aftermarket catalogs skip this structure is beyond me.

Does This Parts Catalog Cover the Engine?

Yes – area DH covers the engine section. But here’s the catch: this is a parts catalog, not a service manual. You’ll find part numbers for the cylinder head gasket, injector seals, and oil cooler, but you won’t find torque specs or overhaul procedures. If you need those, get the factory service manual separately – we carry it too. Mixing parts lookup with repair instructions in one document is a recipe for smudged pages and lost data.

Verify Part Numbers Against Your Serial Number

Page 1 gives you the serial number break. Your machine’s serial plate tells you the model suffix (SH210-5, SH210LC-5, or SH210LCR-5LR). Match that to the catalog range. If the numbers align, every part listed in these pages is engineered for your exact undercarriage, swing gear, and hydraulic pump configuration. One wrong digit and you’re ordering a swing motor seal that’s half a millimeter too thick.

Why OEM Beat Aftermarket Catalogs Every Time

I’ve seen aftermarket parts lists that combine two different model years into one chart. The result: a customer gets a bucket pin that’s 5mm too short. The OEM catalog from Hitachi Sumitomo is drawn from the same engineering drawings as the production line. The part numbers in here are the numbers stamped on the parts when they left the factory. No translation errors, no “compatible with” nonsense.

Frequently Asked Questions

Is this the service repair manual or just parts?

This is strictly a parts catalog. It lists every part number, quantity, and illustration for the SH210-5 series. No step-by-step removal instructions, no torque specs. Buy the service manual for that.

Does it cover the SH210LCR-5LR model?

Yes.

Can I use this catalog to order parts from a Hitachi dealer?

Absolutely. Dealers use the same part numbers. Hand them the number from this catalog and they’ll pull it from stock. No back-and-forth about supersessions unless Hitachi revised the part – and even then, the dealer can cross-reference using the original number.

How are the part numbers organized in this 878-page document?

Every part is grouped by area code (DA, DB, DC, DH, DJ, DM, DN, DP, DR, DV, ZA). Within each area, the parts are illustrated with exploded diagrams. The index at the back lists every part number alphabetically and numerically. You can search by description (e.g., “seal, rod”) or by part number if you already have one. The book is designed for a mechanic who needs a number fast, not a librarian.
