Hanix N1502 Service Manual – Factory Specs for Track Loader Repair

I’ve seen more stripped drain plugs and blown hydraulic lines from guys using aftermarket guesswork than from actual wear. The Hanix N1502 Service Manual is the OEM factory book – 64 pages of what you actually need: torque values that match the bolts in your hand, not some third-party approximation. If you’re wrenching on a Hanix N1502 mini excavator, you want the factory data, not a reprint. This is the same binder the dealer techs had, straight from the importer’s archives.

Torque Specs at Your Fingertips – Page 29

Page 29 of this manual has a dedicated table of tightening torques. That’s the page you’ll tape to your toolbox when you’re doing undercarriage bolts or hydraulic fittings. No more guessing whether a 10mm bolt needs 35 ft-lbs or 45 – the factory says exactly what. The manual also lists recommended lubricants on page 48, so you know which grease to pack into the pivot pins. If you skip that step, you’ll be replacing bushings in half the hours.

Safety Section on Page 9: Why It’s Not Optional

I don’t care how many machines you’ve run – the safety section on page 9 of the Hanix N1502 Service Manual covers specific hazards for this model: pinch points on the boom, hydraulic pressure release procedures, and proper blocking before crawling under. The manual is in Norwegian (the original import market), but the diagrams and standard international symbols are universal. You don’t need to read the language to understand the hand-in-crush icon. Use it.

Inspection & Maintenance Schedule – Page 25

Page 25 kicks off the inspection and maintenance section. The manual spells out intervals: first 50 hours, every 50 hours, 100, 250, 500. That’s not a suggestion – it’s what keeps the travel motors and swing gear alive. I’ve seen a Hanix N1502 come in with a failed final drive because the owner thought “check oil” meant “whenever I remember.” The manual has a table on page 47 that shows the full service interval matrix. Follow it.

Troubleshooting Tables: Page 41

When the machine won’t track straight or the boom drifts, you don’t start swapping parts. Page 41 has a troubleshooting table organized by symptom. Engine won’t crank? Check the safety interlock relay. Hydraulic weak? Look for a clogged strainer. The table on page 41 cross-references to the specific repair procedures later in the book. That’s how you fix it in one attempt, not three.

Source Authenticity: OEM vs Aftermarket

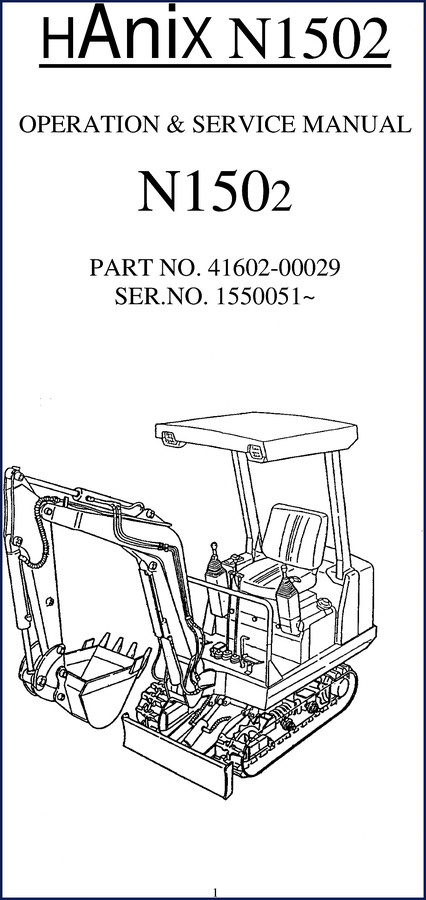

This Hanix N1502 Service Manual is a direct scan of the factory binder, part number 41602-00029. It’s not a third-party rewrite. Aftermarket manuals often omit the critical torque page or flatten the wiring diagrams into one illegible drawing. This one has the original Japanese engineering notes, the same ones that Nissan Kizai Co., Ltd. used when building the machine. If you want to keep your N1502 running past 5,000 hours, you need the source document the dealer techs used.

Related Manuals for Other Hanix Models

If you also work on other Hanix compact excavators, check these factory books: HANIX H09D Service Manual, HANIX H75C Service Manual, and HANIX H55DR Service Manual. Each one is the same factory-quality document.

For background on how the N1502’s drivetrain works – specifically the manual transmission that engages the tracks – you can read about manual transmission fundamentals on Wikipedia. The coverage in this shop manual assumes you understand how a manual shift mechanism operates. For a refresher, see Manual Transmission. Likewise, the engine’s manual transmission coupling is described in the manual; refer to Manual Transmission for the theory.

Frequently Asked Questions

Does this manual include wiring diagrams?

Yes. The manual has schematics for the electrical system, including the alternator, starter, and safety interlocks. They’re factory-original, not redrawn.

Is the manual in English?

No. The text is in Norwegian. However, all torque values, part numbers, diagrams, and tables are language-independent. If you can read a torque spec chart, you’re fine.

Can I use this manual for the Hanix N1502 with serial number below 1550051?

This manual is marked for serial numbers starting at 1550051. If your machine is older, some components may differ. Check your serial plate against the manual’s part number 41602-00029.

What is the page count?

64 pages.

That’s the sum of it. If you need to repair a Hanix N1502 without burning billable hours on guesswork, get the factory book. Access the Factory Manual from AutoRepairManuals and put it on your tablet or print it out. Your torque wrench will thank you.
