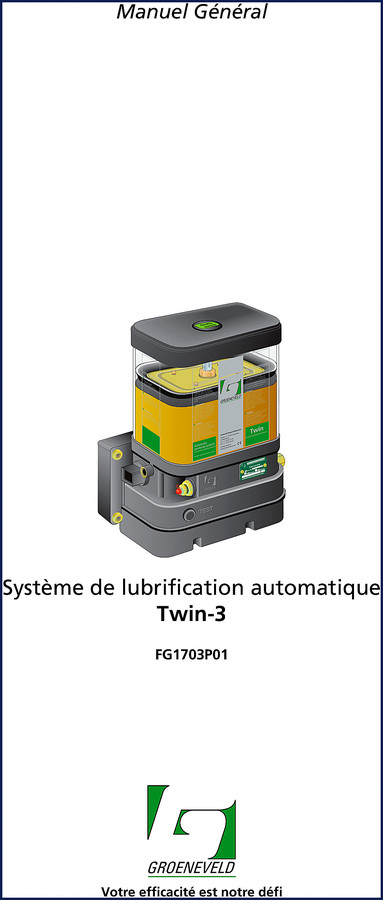

Groeneveld TWIN-3 2008 Technical Manual – What You Need on the Bench

Any shop that works on automatic lubrication systems knows the pain of chasing down a seized pump or a misreading pressure switch without the factory paperwork. You end up swapping parts that aren’t bad, bleeding money and time. Groeneveld TWIN-3 2008 Technical Manual stops that. This is the original OEM document from Groeneveld, not some aftermarket reprint that skips the critical valve specs.

What the Groeneveld TWIN-3 2008 Technical Manual Covers

Page 1 confirms the publication date – November 2008, revision 01. The table of contents on page 3 lays out every chapter: from the PRÉFACE through Introduction, Informations générales, all the way to Données techniques. You get the full 58 pages of the 5/2-way Valve operation, the grease reservoir with follower piston, and the control box. Section 3.3 alone breaks down the pump unit into six subcomponents – control box, 5/2-way valve, discharge valve, minimum level switch, test button, and grease reservoir. That kind of detail keeps you from guessing which port does what.

How Does the System Test Work?

Section 4 covers Test du système – both single test cycle (4.2) and continuous test cycle (4.3). If you’ve ever had a unit that wouldn’t cycle and you started swapping relays, this section saves you. It tells you exactly which button to push and what the display should show. No guesswork, just a logical sequence that matches the hardware. For fleet guys who also deal with Manual Transmission units, the step-by-step test logic carries over well.

3 Maintenance Steps You Should Not Skip

Entretien (section 5) starts with regular checks. Two big ones: purging the pump (5.3) and purging the system (5.4). The manual doesn’t let you skip bleeding air from the grease lines – and it shows the exact order. Then section 5.5.1 tells you the correct grease to use. Don’t think any NLGI-rated grease works; the factory has a specific requirement. Page numbers? You don’t need to flip – it’s all in chapter 5. If you maintain both this system and Manual Transmission gearboxes, you already know the value of sticking to manufacturer specs.

Pump Unit and the 5/2-Way Valve

The core of the TWIN-3 is the pump unit. Section 3.3 walks through every part: the control box (boîtier de commande), the 5/2-way valve (vanne 5/2 voies), the discharge valve (valve de décharge), and the minimum level switch. The manual shows the flow path during lubrication cycles A and B. Understanding that sequence – which ports open when – is the difference between a 30-minute repair and a half-day tear-down. This Technical Manual has the diagrams drawn exactly as Groeneveld built it.

Use the Grease Specified – Not Your Leftover Tube

Section 5.5.1 is titled “Utilisation de la graisse correcte.” That’s your warning. The manual lists the exact grease grade. Using the wrong consistency can plug the injectors or stall the pump. The troubleshooting table in 5.6.3 lists common faults like “grease pressure too low” and gives the correction. Pair this manual with the installation manual for a complete setup: Groeneveld TWIN-3 Greasing System Installation Manual, and also check the Groeneveld TWIN-3 Installation Manual for mounting details. For vehicles with an Elme 7000 controller, see Groeneveld TWIN-3 Elme 7000 Installation Manual.

Troubleshooting Table – Real Fault Isolation

Pages 26–30 in the original PDF carry the troubleshooting chapter. Five fault categories: electrical, mechanical, grease quality, pressure, and display errors. Each has a symptom, cause, and fix. For instance, if the display shows an error code, section 5.6.4 explains how to recover it using the mode button. That’s the kind of detail you don’t get from a generic guide. It saves you from replacing a pump head that’s actually fine.

FAQ

Is the 5/2-way valve covered in detail?

Yes, section 3.3.2 gives the function and location within the pump unit.

What grease type does the manual recommend?

Section 5.5.1 specifies the correct grease. It’s typically an NLGI 2 grade with specific additives for automatic systems. The manual tells you not to substitute – using the wrong grease can cause the valve to stick or the pump to overheat, leading to premature wear. If you ignore it, you’ll be flushing lines and replacing injectors.

Are there wiring diagrams for the control box?

Yes, section 3.3.1 shows the control box connections, and section 3.6 covers the signal lamp wiring. The display (Ecran Twin, section 3.8) includes pinouts for the digital readout.

Is the manual in English?

No, this factory manual is in French, but the diagrams, torque values, and tables are universal and easy to follow.

You want to keep your TWIN-3 running without killing your flat-rate time. Access the Factory Manual now and put the original Groeneveld procedures on your bench.
