Description

General Motors 3.0L Service Manual

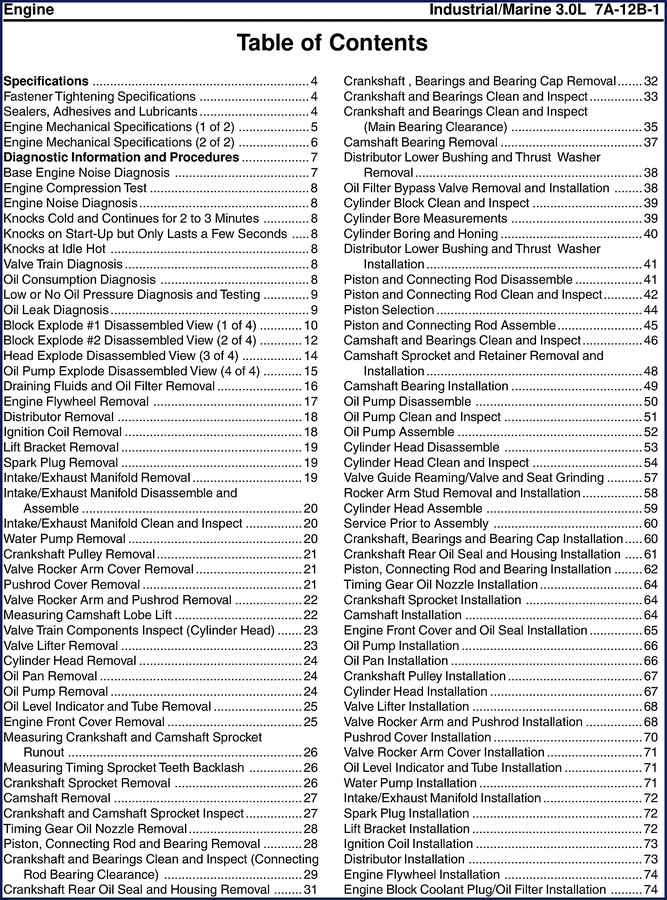

If you’ve ever had a customer’s boat engine knock on start-up and pulled a third-party manual that listed torque specs in metric with no fastener grade, you know why I’m writing this. The General Motors 3.0L Service Manual I’ve got in front of me is the factory print for the industrial/marine 7A-12B-1 engine. 82 pages of actual GM procedures, not someone’s interpretation. This is what you need when a valve tap turns into a full bottom-end rebuild and you don’t have time to guess clearance numbers.

Diagnostic Information: Valve Train and Oil Pressure

Start with the Base Engine Noise Diagnosis on page 7. That section walks you through knocking conditions that last 2 to 3 minutes, knocks only on start-up, knocks at idle hot — each one gets its own entry. The Valve Train Diagnosis page tells you whether the noise is lifter-related or a bent pushrod. Oil consumption and low oil pressure tests are laid out step by step. Page 9 covers the Low or No Oil Pressure Diagnosis and Testing procedure, which saves you from pulling the pan when the problem is a clogged pickup screen. Real-world utility: a boat operator complaining about knocking at idle? You go straight to the knock-at-idle-hot diagnostics and check oil pressure before tearing into bearings.

Torque Specs and Engine Mechanical Specifications

Two pages of Engine Mechanical Specifications (pages 5 and 6) give you the factory numbers for cylinder bore limits, main bearing clearance, connecting rod bore, camshaft journal diameters — all in inches. The Fastener Tightening Specifications section lists every bolt torque in lb-ft. No metric conversion needed, no guesswork. Sealers, Adhesives and Lubricants page tells you exactly where to apply RTV and which anaerobic sealer GM specified. Skip that step and you’ll chase oil leaks forever. I’ve seen too many rebuilds fail because a tech used silicone instead of the factory sealer. This manual ends that.

Does This Manual Cover Full Engine Disassembly?

From draining fluids and removing the oil filter all the way through pulling the crankshaft and bearings — yes. The removal sequence starts with the engine flywheel, distributor, ignition coil, spark plugs, intake/exhaust manifolds, water pump, crankshaft pulley, valve rocker arm cover, pushrod cover. Then you get into measuring camshaft lobe lift, valve train inspection, cylinder head removal, oil pan, oil pump, front cover. Each step has its own page with exploded views. Block Explode #1 (page 10), Block Explode #2 (page 12), Head Explode (page 14), Oil Pump Explode (page 15). These are factory line-art drawings, not fuzzy photos. You see exactly how the thrust washers and oil nozzle fit.

Why OEM Documentation Beats Aftermarket Reprints

Aftermarket manuals often skip the small print — like the torque sequence for the cylinder head or the exact oil pump clearance specs. This manual came from General Motors directly. It lists the crankshaft and bearings clean and inspect procedures with main bearing clearance measurements. The crankshaft rear oil seal installation uses the factory alignment tool, and the manual tells you the part number. When you’re ordering parts, you need that original reference. I stack this 82-page PDF against any aftermarket binder. For other GM powertrain manuals, check the General Motors Volt Ampera 2012 Service Manual for hybrid systems, the General Motors 4L40-E 5L40-E 2002 Service Manual for transmission work, and the General Motors 4.3L Engine Service Manual for Generator Sets for larger stationary engines.

82 Pages of Assembly Steps

After you’ve cleaned and inspected every component — cylinder block, pistons, connecting rods, camshaft bearings, oil pump — the manual takes you through assembly in the same order. Crankshaft and bearing cap installation, rear oil seal, piston and connecting rod installation, timing gear oil nozzle, camshaft, front cover and oil seal, oil pump, oil pan, crankshaft pulley, cylinder head, valve lifters, rocker arm cover. The last section, Service Prior to Assembly, reminds you to clean bolt threads, apply lubricant to bearings, and check ring gaps. It also covers thread repair and proper use of RTV. For the valve guide reaming and seat grinding, page 57 gives the exact cutter angles. No guesswork. For context on the broader industry, see the Automotive Industry Overview. And if you’re working on manual transmission applications, the Manual Transmission page covers related fundamentals.

I’ve been turning wrenches in San Antonio for twenty-eight years. When a manual comes across my bay that was printed by General Motors themselves, I know the torque values aren’t rounded off and the clearance specs are real. This 82-page file gives you everything: diagnostics, exploded views, disassembly and assembly instructions, and the fastener chart you need to button up an engine without pulling a stud. Access the Factory Manual and keep a copy on your shop tablet or phone. That way, when a 3.0L comes in with a knock, you’ve got the factory answer in your pocket.
