GEHL SL7810E 2006 Service Manual

You pull a head bolt on a Cummins in a GEHL SL7810E and you reach for a torque spec. You better have the right number. Aftermarket binders will guess it. This 2006 Service Manual is the factory print — 238 pages of what Gehl actually built. I’ve seen guys snap bolts because they used a generic chart. Don’t be that guy. This is the manual that tells you exactly where to set your wrench for the SL7810E skid-steer loader with the Cummins engine. No second-guessing. No calling around. It’s on the page.

Specifications: More Than Just Numbers

Open to Specifications (page 1-1) and you get tire options, bucket capacities, and dimensional specs that matter when you’re ordering parts or setting up a machine. The dimensional specs on page 1-2 give you overall height, length, width — stuff you need for transport or fitting into a shop bay. This isn’t a spec sheet you find online. It’s the original factory data, verified at the plant. If you’re rebuilding a wheel drive or swapping a bucket, you use these numbers.

Safety — Not an Afterthought

Safety chapter runs from page 2-1. It includes signal words, additional reminders, and the mandatory safety shutdown procedure. I’ve watched guys skip this section because they think they know how to handle a skid-steer. Then they get pinched. This manual spells out the shutdown sequence that prevents accidental movement. Hard to argue with a procedure that keeps your fingers attached. Read it. Every time.

Lubrication: Where Most Shops Screw Up

Lubrication chapter covers intervals, grease points, and fluid specs for the whole machine. Most failures I see in the field come from using the wrong oil or missing a zerk. The manual gives you the exact viscosities and capacities so you aren’t guessing at the parts counter. That saves you a trip back to the shop.

Engine Chapter: Cummins-Specific Procedures

The Engine section is written around the Cummins power unit in the SL7810E. It covers disassembly, testing, troubleshooting, and replacement of engine components. If you’ve ever tried to order a part for a Cummins using a serial number that doesn’t match, you know the pain. This manual cross-references the engine data so you get the right injector, the right gasket, the right torque pattern. No guesswork. Also, it points you to Cummins Customer Assistance Center at 1-800-DIESELS for engine-specific manuals if you need deeper coverage.

Electrical System: Tracing Faults Without Guesswork

Electrical System chapter gives you schematics, photographs, and procedures for testing. I’ve had more electrical headaches on loaders than anything else — bad grounds, chafed harnesses, control modules that act up. The manual shows you the OEM routing and connector views so you’re not probing blindly. Manual Transmission vehicles have different electrical architectures, but for the SL7810E this is the right book. If your loader won’t start or the dash lights flicker, you start here.

Hydrostatic and Hydraulic Systems

Two separate chapters — Hydrostatic System and Hydraulic System. The hydrostatic section covers the drive system: pumps, motors, charge pressure testing. The hydraulic section covers the implement circuit: control valves, cylinders, hoses. Together they give you the flow charts and pressure specs to diagnose a weak drive or a lazy lift arm. Manual Transmission machines obviously don’t have these, but your SL7810E does, so you need the right data.

Who Needs This Manual

If you own a SL7810E skid-steer loader — whether you’re a DIY owner-operator, a small fleet manager, or a shop that takes in oddball equipment — this manual saves you from wasting time and money on wrong parts or botched repairs. Beginners will appreciate the black tabs on each chapter that let you thumb straight to the section you need. The alphabetical index at the back covers multiple entries so you can find a procedure fast. I’ve been in the trade 28 years and I still use the index on a new machine.

Why OEM Documentation Beats Aftermarket

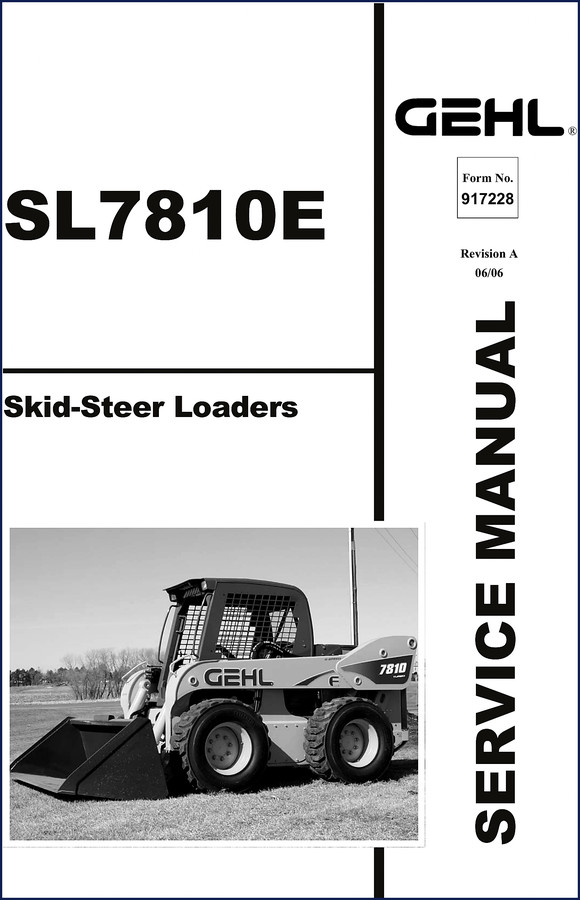

Aftermarket manuals reprint factory data with errors. I’ve seen torque specs off by ten foot-pounds. I’ve seen wiring colors swapped. This is an original Gehl publication, form number 917228, revision A, dated 06/06. Every page, every number comes from the engineering department, not a copy service. Manual Transmission aftermarket books are notorious for mismatched data. Don’t take that risk on a loader that can crush you if something fails.

You also need the parts breakdowns. The GEHL SL7810E 2009 Parts Catalog is a perfect companion for ordering. For operation instructions, pick up the Gehl SL7810E Operator’s Manual. And if you want later revision parts data, the GEHL SL7810E Parts Manual Revision D 09/09 covers that. All OEM, all verified.

Does this manual cover the Cummins engine in the SL7810E?

Yes. The Engine chapter is specific to the Cummins power unit, with disassembly, testing, and torque specs from Gehl.

Is the electrical section complete with wiring diagrams?

It includes schematics, photographs, and connector views for troubleshooting electrical faults. The manual does not provide full harness-level wiring diagrams for every option, but it gives you enough to trace power, grounds, and control signals using OEM routing information and test points. For a production skid-steer loader, that’s the level of detail you need to fix intermittent issues without tearing the whole harness apart. Combine it with a multimeter and you’ll find the problem.

Stop using generic binders that cost you time and parts. Access the Factory Manual and get the real specs Gehl intended for your SL7810E. Your loader — and your wallet — will thank you.
