Ford Fiesta, EcoSport 2005 Technical Manual

If you are pulling the head on a 1.6L Zetec Rocam in a 2005 Ford Fiesta or EcoSport, you need more than a guess from a forum. I have pulled apart more engines than I can count, and I will tell you straight: aftermarket documentation will leave you chasing the wrong torque sequence every time. This Technical Manual is the actual factory book Ford issued in 2005 – 109 pages of the exact same procedures the dealer techs used. No translation loss, no generic “apply sealant” crap. You get the real spec.

Before you break out the ½-inch drive, understand that this manual covers Section 303-01A – Motor 1.6L Zetec Rocam. That is the complete engine assembly from the intake manifold to the rear main seal. It includes Especificaciones de Torque on page 303-01A-4, lubrication specs, valve clearances, and the full disassembly/reassembly procedures. If you are doing a timing chain, the chain tensioner bolt torque is listed right there. No need to convert metric to imperial guesswork – Ford wrote it in both on the same page.

I see guys snap head bolts because they bought a PDF from some third-party reseller that copied the numbers wrong. Do not be that guy. This factory manual is the only source I trust for the Zetec Rocam, and I have been turning wrenches for twenty-eight years.

Motor 1.6L Zetec Rocam – Full Engine Overhaul Coverage

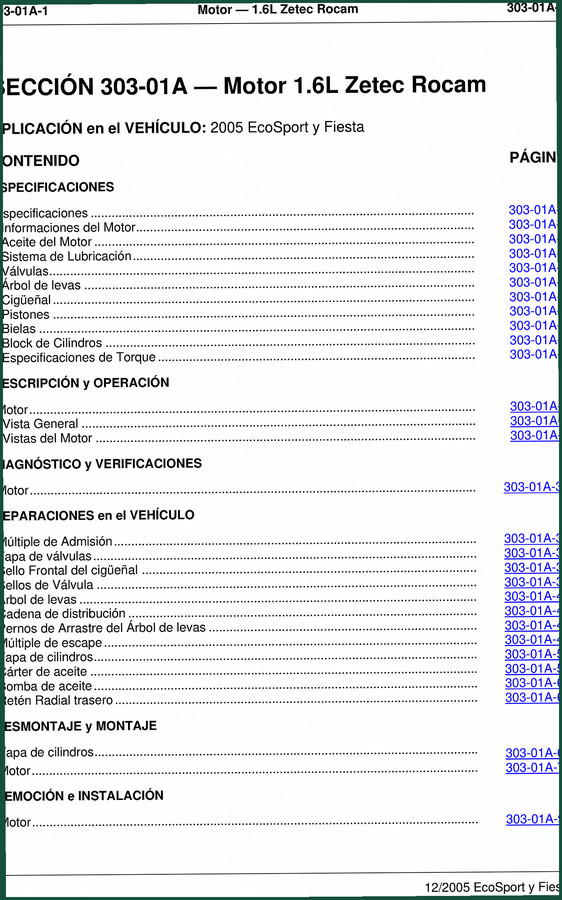

This is not a general “service” manual that skips the hard stuff. The table of contents runs from Especificaciones (specs) through Diagnóstico y Verificaciones all the way to Remoción e Instalación of the complete motor. Specific chapters include: Válvulas, Árbol de levas, Cigüeñal, Pistones, Bielas, Block del Motor, and the all-important Especificaciones de Torque. You will find the factory piston ring end gap spec, the correct sequence for torquing the cylinder head, and the oil pump bolt torque – page 303-01A-4 has the torque table for the entire engine exterior.

Every torque value in this manual comes from Ford engineering. If the manual says “120 Nm (89 lb-ft)” for the crankshaft damper bolt, you set your wrench to 89 lb-ft and that is what it gets. No room for interpretation.

Does This Manual Cover The Fuel System?

No. This manual is Section 303-01A – Motor only. It does not include fuel injection, ABS, or body electronics. For the rest of the vehicle, you should pair it with a Ford Fiesta 2002 Wiring Diagram”>Ford Fiesta 2002 Wiring Diagram or the Ford Fiesta 2002 Workshop Manual – Section: Grupo 5 Carrocería Y Pintura”>Ford Fiesta 2002 Workshop Manual – Section: Grupo 5 Carrocería Y Pintura for bodywork. If you have a 1.4 TDCI variant, check the Ford Fiesta 1.4 TDCI 2004 Technical Manual”>Ford Fiesta 1.4 TDCI 2004 Technical Manual for that engine.

7 Systems Detailed in the In-Vehicle Repair Section

The REPARACIONES en el VEHÍCULO chapter alone covers seven major subsystems you can remove and install with the engine still in the car: Múltiple de admisión, Tapa de válvulas, Sello Frontal del cigüeñal, Sellos de Válvula, Árbol de levas, Cadena de distribución, and Pernos de Arrastre del Árbol de levas, plus the exhaust manifold and oil pan. Each procedure starts with a tool list, safety warnings (in Spanish, but the numbers are universal), and the exact torque for every fastener. For instance, the timing chain cover bolt torque is listed in the Cadena de distribución section. You will not find that in a Chilton book.

Diagnosis Before Disassembly – Don’t Skip It

The manual includes a DIAGNÓSTICO y VERIFICACIONES section (starts on page 303-01A-32). It walks you through checking oil pressure with a gauge, verifying camshaft timing, and testing the PCV valve. If your Zetec Rocam is smoking or rattling, read that section before you pull the valve cover. It might save you pulling the head. The test procedures specify which tools you need – a Ford rotary gauge adapter, for example – and the acceptable pressure range. Aftermarket manuals often skip these diagnostics entirely and just tell you to replace parts until it stops leaking.

Why OEM Matters

I have seen aftermarket manuals quote the wrong head bolt torque for the Zetec Rocam. They copy from a 1990s Escort manual and call it good. Ford does not do that. This Technical Manual was printed in 2005 for the EcoSport and Fiesta specifically. The application line on every page says “12/2005 EcoSport y Fiesta.” That precision matters when you are torquing the main bearing cap bolts – one wrong number and you spin a bearing. For a wider industry context, the Automotive Industry Overview”>Automotive Industry Overview explains how OEM data standards protect technicians, but you already know that if you have ever snapped a bolt. Also worth understanding how the Manual Transmission”>Manual Transmission mates to this engine – the bell housing bolts are also listed in the manual.

FAQ

Will this manual work for a 2006 Ford Fiesta?

No. The 2005 manual is for the 1.6L Zetec Rocam with specific calibration updates. For 2006 models, you need the corresponding 2006 technical manual.

Does it include the torque values for the camshaft sprocket bolts?

Yes, the Especificaciones de Torque page (303-01A-4) lists every major fastener torque in the engine – camshaft sprocket, main bearing caps, connecting rod caps, cylinder head, oil pump, and timing chain tensioner. The values are in both Nm and lb-ft. You will find the camshaft sprocket bolt torque at 50 Nm (37 lb-ft) plus an additional 90-degree turn. Critical spec – do not guess.

You can waste an afternoon cross-referencing forum posts and still end up stripping threads. Or you can get the same data the Ford dealer pays for. Access the Factory Manual – it is the only copy I keep on my tablet in the shop, and I expect you will too once you see the difference in accuracy.
