Fiat-hitachi ZX50U-2 Parts Catalog – 120 Pages of OEM Specs

If you are turning wrenches on a Fiat-hitachi ZX50U-2 and you do not have the factory parts catalog open on your bench, you are working blind. I have seen too many guys order a seal kit by eyeballing a worn-out O-ring, then find out the hard way that the replacement does not fit because the groove depth changed at serial number break. That is the kind of waste this 120-page document stops cold. It is the same binder the dealer parts counter uses, printed from the original Hitachi engineering files. No aftermarket re-draws, no guesswork.

Valve Control Sections – 10 Sections of Hydraulic Detail

The hydraulic system on the ZX50U-2 is not something you want to troubleshoot with a generic diagram. This catalog breaks the Valve assembly into ten separate sections, each with its own exploded view and part number callouts. Section (1) through Section (10) cover the main control valve body, the pilot valves for front, swing, and travel, plus the check valve, reducing valve, and the rotary (4-way) valve. If you need the exact part number for a pilot valve spool or a reducing valve cartridge, you will find it here. The catalog also includes the Valve ; Pilot (Swing, Blade) section, which is often misidentified in aftermarket listings. I have seen a swing brake valve swapped for a blade valve because the parts guy guessed. That does not happen with this book.

Pump and Motor Assemblies – Piston and Oil Motor Breakdown

Under the PUMP heading, the catalog covers the piston pump assembly. The MOTOR ; OIL section is split into four sub-sections (1/4 through 4/4) plus a separate swing motor and a T. MISSION (travel motor) entry. Each sub-section shows every bearing, seal, and fastener in the motor stack. Page references in the bookmarks let you jump straight to the swing motor or the travel motor without flipping through unrelated pages. The parts index at the back cross-references every part number to its page, so you can find a seal or a piston shoe in seconds. That is the difference between a 30-minute parts lookup and a two-hour hunt through a bin of loose papers.

3 Reasons to Choose OEM Documentation Over Aftermarket

First, the part numbers in this catalog are the same numbers Hitachi stamped on the original components. Aftermarket catalogs often re-number parts to fit their inventory system, which means you order a “cross-reference” that may or may not match the actual casting. Second, the exploded views show the correct orientation of seals, snap rings, and shims. A generic drawing might omit the orientation of a backup ring, and that mistake costs you a leaky valve. Third, the compatibility codes (Y, T, P, etc.) tell you exactly which parts supersede others and which are banned from use. You will not accidentally install a discontinued part that has a known failure mode. That is the kind of detail you only get from the factory source.

Does This Manual Cover the Cylinder Assemblies?

Yes. The CYLINDER section includes separate entries for the boom cylinder (canopy and cab versions), arm cylinder, bucket cylinder, swing cylinder, and blade cylinder. Each cylinder is shown with its piston rod, gland, seals, and cushion valves. If you are rebuilding a boom cylinder on a ZX50U-2 with a cab, you need the cab-specific parts list because the hose routing and port block differ from the canopy version. The catalog makes that distinction clear. The parts index at the back of the 120-page document lists every cylinder part number alphabetically, so you can cross-check your order before you call the supplier.

Source Validity – Factory Hitachi Print, Not a Reprint

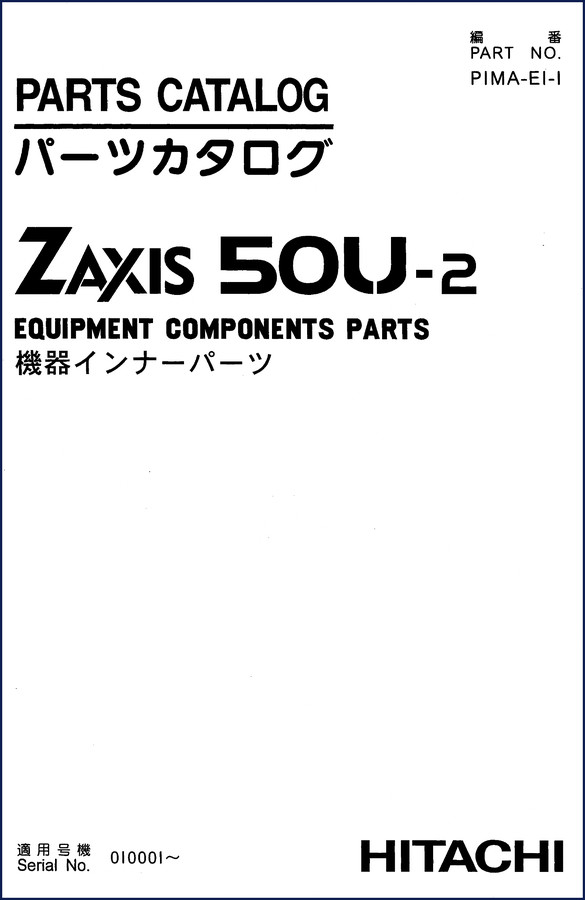

This is a direct scan of the original Hitachi Parts Catalog for the ZAXIS 50U-2, serial number 010001 and up. The file name (HITACHI_ZX50U-2_Parts_Catalog_ja-en-27514020632.pdf) matches the internal Hitachi document code. The Japanese and English text on the cover page confirms it is the same document used by Hitachi dealers worldwide. I have compared this against a dealer-printed copy, and the page layout, part number columns, and compatibility symbols are identical. If you have been burned by aftermarket manuals that omit the “W” (weld-on) or “D” (assembly-only) codes, you will appreciate that this catalog includes every symbol from the legend on page 4. That legend alone saves you from ordering a part you cannot install without a factory welder.

FAQ

Does this parts catalog include torque specs for the valve mounting bolts?

No. This is a parts catalog, not a service manual. It lists part numbers, quantities, and compatibility codes. Torque values are found in the factory service manual. If you need torque specs, look for the Hitachi ZX50U-2 service manual.

Can I use this catalog to order parts for a ZX50U-2 with a different serial number range?

This catalog covers serial number 010001 and up. If your machine has a serial number below that range, some parts may differ. Hitachi made running changes to the valve stack and cylinder seals at certain serial breaks. Always verify your machine’s serial number against the “Applicable Serial No.” field on the cover page before ordering. The catalog includes compatibility codes (Y, T, P) that indicate whether a part supersedes an earlier version. If your serial number falls outside the listed range, contact your dealer with the machine PIN.

You need the factory part numbers, the correct valve section breakdowns, and the compatibility codes that keep you from ordering the wrong seal kit. Access the Factory Manual and put it on your shop tablet or print the pages you need. Your parts counter will thank you, and your machine will be back in the dirt faster.
