Fiat-hitachi Zx40U Workshop Manual – Factory Specs for the Workbench

I have seen too many guys in my shop try to rebuild a swing motor using a generic PDF they found on some forum. That ends with a torn seal and a machine down for two days. The Fiat-hitachi Zx40U Workshop Manual is what you need on the bench if you are touching this machine. 402 pages of factory procedures, not aftermarket guesswork. This is the same document the dealer techs use, and it covers the Zx40U and the Zx50U. If you are pulling a pump device or bleeding air from the hydraulic oil tank, you want the OEM sequence, not a translation of a translation.

Torque Specs and Fluid Capacities – Section 1 Group 2

Every fastener on this machine has a spec. Section 1, Group 2 gives you the tightening torque specifications and the full torque chart. Piping joints, major component bolts, everything. I have seen a control valve flange bolted down with 50 ft-lbs when the book calls for 34 ft-lbs. That warps the valve body. The manual also includes the periodic replacement of parts schedule, so you know when to swap hoses before they blow. Need the charge pressure for the pump? That data is in the maintenance standards tables later in the manual. Do not guess. Use the factory number.

Upperstructure Rebuild – Pump, Swing, and Pilot Valves

Section 2 is where the real work happens. Group 3 walks you through removing, disassembling, and assembling the pump device. The swing device gets its own group with the reduction gear and motor disassembly. I have rebuilt a swing motor on a Zx40U using this manual, and the step order matters. If you skip the alignment marks on the swash plate, you will have a bind. The pilot valve section covers the front, travel, blade, and boom swing pilot valves. Each one has a separate disassembly and assembly procedure. That is the level of detail you need when you have a machine that uses multiple pilot circuits.

Undercarriage and Track Adjuster Service

Section 3 covers everything below the swing bearing. The track adjuster removal and installation is in Group 4. If you have ever had a track adjuster that will not hold grease, you know the seal kit is inside. The manual shows you how to disassemble and assemble the adjuster without launching the spring. The front idler and the upper/lower rollers each have their own maintenance standards. Rubber crawler removal and installation is in Group 7. Do not try to break a track without the factory procedure. You will damage the rubber.

Engine Overhaul – Section 5

Section 5 is the engine section, and it is laid out like a standalone service manual. It starts with general repair instructions and main data and specifications. The tightening torque specifications for the engine are listed, including the angular nut and bolt tightening method. That is critical for head bolts. The lubrication system has a circulation diagram and oil pump service. The cooling system covers the water pump and thermostat. The fuel system includes the governor and nozzle holder assembly. There is a troubleshooting section, a special tool list, and a service standard table. If you are doing an in-frame overhaul, this is the section you will live in.

Source Validity – OEM Factory Print vs Aftermarket

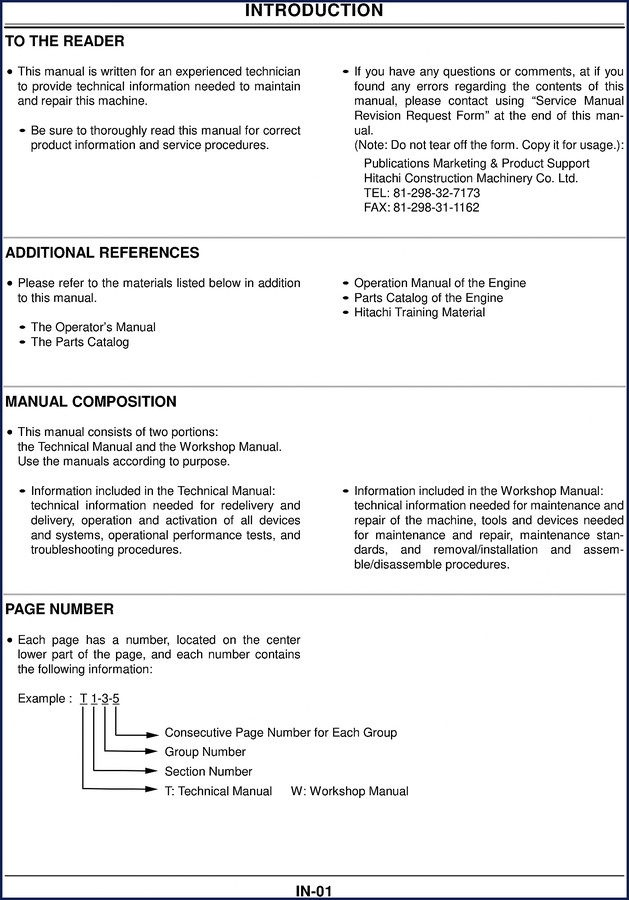

This is an original factory workshop manual from Hitachi Construction Machinery. The introduction on page IN-01 states it is written for an experienced technician. The safety alert symbol and headline notations are factory-standard. The manual uses SI units with English equivalents in parentheses, like 24.5 MPa (250 kgf/cm2, 3560 psi). Aftermarket manuals often skip the safety warnings and the conversion tables. This one includes Section 5, Section 9 with conversion tables for length, area, volume, mass, pressure, torque, and temperature. That matters when you are working on a machine built with metric fasteners and your torque wrench reads in ft-lbs. Do not trust a third-party reprint. Use the OEM document.

Who Needs This Manual

If you own a Zx40U or Zx50U excavator and you do your own repairs, this manual pays for itself on the first job. Home garage enthusiasts who work on compact excavators will find the hydraulic bleeding procedure in Group 3 of Section 1 essential. Beginners should read the precautions for disassembling and assembling in Group 1 before touching anything. Professional mechanics will use the maintenance standards tables to check clearances without calling the dealer. Workshop owners can hand this to a junior tech and know the job will be done to factory spec. It covers the canopy, counterweight, pump, control valve, swing device, pilot valves, solenoid valve, revolution sensing valve, swing bearing, travel device, center joint, track adjuster, front idler, rollers, track, front attachment, and all cylinders.

FAQ

Does this manual cover the engine fuel system?

Yes. Section 5, Group 5 covers the fuel circulation system diagram, governor, and nozzle holder assembly.

What torque values are listed for the swing motor mounting bolts?

The torque values for major components are in Section 1, Group 2 under tightening torque specifications. The swing motor maintenance standards are in Section 2, Group 5. You will find the specific bolt torque in the maintenance standards table for the swing device. Do not use a generic bolt torque chart. Use the factory number from the manual. If you are working on a related machine, check the Fiat-hitachi ZX75US Workshop Manual – OEM Factory Service Specs for similar procedures. The Hitachi ZAXIS 27U-2 30U-2 35U-2 Excavator Manual and Hitachi ZAXIS 110-135 Excavator Workshop Manual are also available if you have a different model. For background on how manual transmissions work in heavy equipment, see the Manual Transmission article. The Automotive Industry Overview provides context on OEM documentation standards.

You need the factory data on your screen or printed out when you are elbow-deep in hydraulic fluid. Access the Factory Manual and get the correct torque specs, the right disassembly sequence, and the safety warnings that keep you from getting hurt. 402 pages. OEM. No reprints. No guesswork.
