Fiat Hitachi SH330, SH330-5, SH330LC-5, SH350HD-5, SH350LHD-5 Service Manual

If you’ve ever tried to rebuild a Fiat Hitachi SH330 swing motor using a third-party PDF that skips the breaker circuit changes, you know the frustration. Aftermarket manuals leave out the details that keep an excavator running—like the high-performance return filter delete on the SH330-5 or the add-on valve circuit for one-touch operation. Fiat Hitachi SH330, SH330-5, SH330LC-5, SH350HD-5, SH350LHD-5 Service Manual is the factory print that tells you exactly what changed from the 3B model and why. At 677 pages, this isn’t a scan of a scan—it’s the real OEM documentation with every torque spec and hydraulic line routing intact.

Hydraulic System Changes: What the OEM Manual Delivers

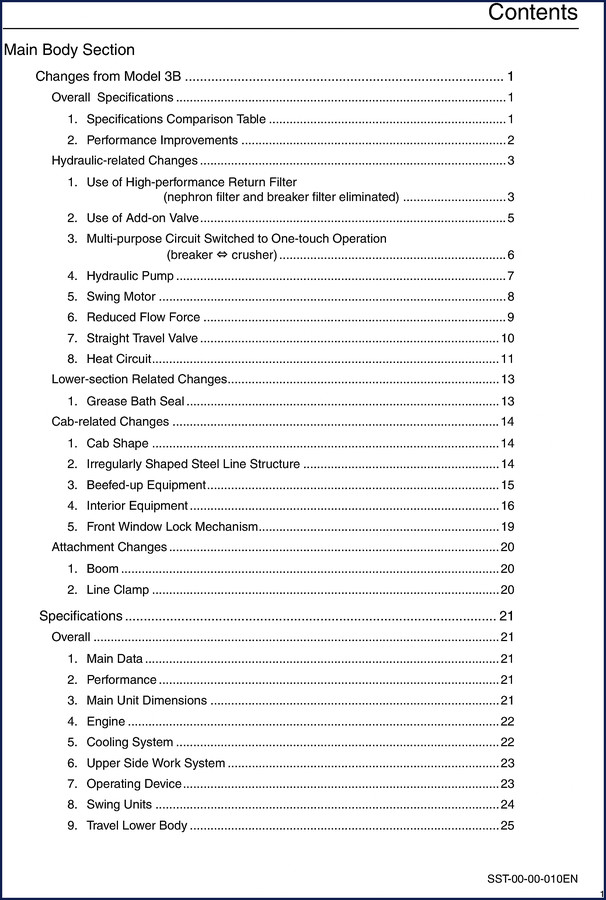

Turn to page 1 for the specifications comparison table between SH330 and SH330-5. The manual walks you through eight hydraulic-related changes, including the elimination of the nephron filter and breaker filter in favor of a high-performance return filter (Section 1). You’ll also find the multi-purpose circuit switched to one-touch operation between breaker and crusher—critical for shops that swap attachments daily. The straight travel valve, heat circuit, and reduced flow force sections are all covered with factory schematics. No vague diagrams—these are the same prints the dealer tech uses.

Need to understand the hydraulic pump change? Section 4 on page 7 gives you pump displacement specs and pressure settings. The swing motor section (Section 5, page 8) includes the full disassembly sequence. If you’re chasing a drift issue in the SH350LHD-5, this is where you start.

3 Sections That Save Real Time on the Job

First, the Changes from Model 3B section (pages 1–20) covers every engineering update—from the grease bath seal in the lower section to the irregularly shaped steel line structure inside the cab. Second, the Specifications section beginning on page 21 gives you engine data, cooling system capacities, and main unit dimensions in Imperial units. Third, the cab-related changes (page 14) detail the front window lock mechanism and beefed-up equipment mounts—common failure points that aftermarket books ignore. You will not find these breakdowns in a generic manual.

Does This Manual Cover the Engine and Cooling?

Yes. Page 21 lists main data, performance numbers, and main unit dimensions. Page 22 covers the engine and cooling system specs for all five models: SH330, SH330-5, SH330LC-5, SH350HD-5, and SH350LHD-5. You get fan belt tension, radiator capacity, and thermostat opening temperature—all factory numbers. Pair this with the Hitachi 4JJ1 Engine Service Manual – Section: Engine Manual (1/2) for deeper engine internals, but the service manual here gives you everything needed for undercarriage and hydraulic work.

Cab and Attachment Changes: What to Know

The manual devotes six pages to cab changes alone (page 14–19). You get the irregular steel line structure that reinforces the cab, the front window lock mechanism (a frequent warranty item on SH330LC-5 models), and the interior equipment layout. Attachment changes on page 20 include boom reinforcement specs and line clamp torque values. If you’re swapping a boom on an SH350HD-5, you need this data to avoid structural fatigue cracks. Use it alongside the Hitachi EX Series 1 Service Data Book for older machine comparisons.

Lower-section changes (page 13) cover the grease bath seal—a detail that prevents track roller failure on SH350LHD-5 units. Most techs skip this because aftermarket manuals don’t list it. Don’t be that guy.

Torque Specs: Where to Find Them

Torque values aren’t buried in an appendix. They’re integrated into each procedure. The specifications table on page 21 includes bolt torque ranges for the upper structure and swing bearing. Hydraulic line fittings reference torque in the add-on valve section (page 5). For track motor torque, check the lower-section changes. The manual never assumes you know the spec—it gives it. Compare that to a Manual Transmission rebuild guide that expects you to guess fastener tension. Not here.

Safety warnings appear throughout—especially in the hydraulic pump removal sequence. The manual flags high-pressure oil hazards and spring-loaded components. I’ve seen techs lose fingers because they trusted a reprint that omitted the warning. This OEM copy doesn’t cut corners.

Why Factory Specs Beat Aftermarket Reprints

Every page of this Service Manual is an original factory print. No third-party transcription errors, no guessed torque values. The Fiat Hitachi engineering team wrote this for dealer technicians, and AutoRepairManuals sells the exact same document. I’ve torn down enough Hitachi gear to know that a mistake in the swing motor clearance spec costs you a week of downtime. The HITACHI ZX140W/170W/190W/210W-3 Sales Manual might help with sales brochures, but for repair work, you need the service manual with the NH stamp—not a sales sheet. This 677-page manual is that stamp.

If you want to cross-reference transmission data across machine lines, the Manual Transmission section in other Hitachi manuals can help, but stay focused on the excavator-specific content here.

Is this manual in English?

Yes, it is.

What is the total page count and what major sections are included?

The manual contains 677 pages covering the complete machine: changes from Model 3B (20 pages covering hydraulic, cab, lower-section, and attachment modifications), full specifications (engine, cooling, hydraulic pump, swing motor, etc. starting on page 21), plus detailed procedures for each subsystem. You get the high-performance return filter section, add-on valve circuit, one-touch operation changes, straight travel valve, heat circuit, grease bath seal, cab structural reinforcement, boom and line clamp torque specs, and multi-purpose circuit switching. Every procedure includes torque values and pressure settings from Fiat Hitachi’s engineering department. No aftermarket compilation—this is the OEM factory document used by dealer service bays.

You’ve got a SH330-5 sitting in the bay with a hydraulic leak you can’t locate, or a SH350LHD-5 that needs a full swing motor rebuild. The aftermarket PDF you obtained from a forum is missing the cap screw torque for the add-on valve—that’s a 50-foot-pound difference that will blow out the seal. Stop wasting time on sketchy PDFs. Access the Factory Manual from AutoRepairManuals and get the real data.
