Fiat Hitachi KH180-2 Operators Manual – Factory Crane Operation & Safety Specs

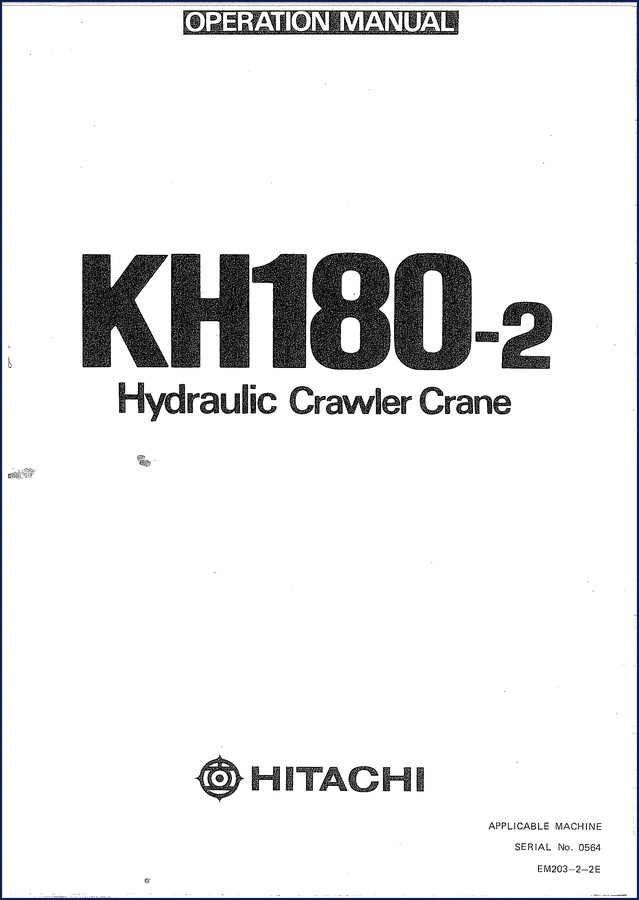

Operating a 40-ton hydraulic crawler crane without the factory paperwork is a good way to bend a boom or send a load through a trench wall. If you are wrenching on a KH180-2 or just signed off on one for a job, you need the actual Fiat Hitachi KH180-2 Operators Manual – not a reprint from some third party that left out the lifting capacity tables. This is the original OEM document, 150 pages, printed by Hitachi. It covers the specific serial number range (0564, EM203-2-2E) and gives you the exact procedures that keep both you and the iron straight.

Specification and Dimensions – Why You Need the Factory Numbers

Every crane has a personality, and the KH180-2 is no different. The manual opens with the Specification and Dimensions chapter. That is where you get the lifting capacity chart, working radius limits, and boom length restrictions. The manual states: “Do not allow working radius to exceed 34 m with a 40 m boom or longer.” In feet, that is 111.5 ft of radius with a 131 ft boom. And the boom angle must stay between 30° and 80° regardless of extended length. If you guess the angle, you lose the load. The factory table on page 4 (in the 28 Rules section) spells it out. You think aftermarket copies keep that page? They do not.

Safety Device Chapter – 28 Rules That Keep the Crane Upright

The SAFETY DEVICE chapter is not a suggestion box. It lists 28 rules that cover everything from lateral load prohibition to wind speed limits. Rule 11: “Stop all operations when the velocity of wind exceeds 10 m/sec.” That is roughly 22 mph – not strong by Texas standards, but enough to swing a suspended load into a crewman. The manual also warns you not to disturb adjustments of hydraulic or pneumatic components by yourself. If you start turning relief valves without the factory spec, you’re the one explaining to the foreman why the boom dropped. I have seen that happen. Keep the manual on the seat.

Operation Section – Warm-Up, Brake, and Clutch Procedures

Under OPERATION, the manual beats in the basics that experienced operators sometimes skip. Always warm up the engine and hydraulic system before moving a load. When you leave the operating seat, lower the load to the ground, apply the brake, release the clutch. If the engine stalls during operation, apply the swing-parking brake and hoist brake and release the clutch. These are not optional steps – they are written because people died ignoring them. The section also covers safe foot placement under the tracks. The factory says: “Place saplings or supporting plates under tracks, if necessary.” Loose ground turns a crane into a toppled hazard.

Inspection and Maintenance – Track Tension and Fluid Checks

Back-shop guys live in the INSPECTION AND MAINTENANCE chapter. It covers intervals for inspecting wire ropes, hydraulic oil levels, track tension, and structural components. The manual devotes a full chapter to WIRE ROPES – detection of broken strands, core slippage, and replacement criteria. Do not rely on a generic wire rope chart; the KH180-2 uses specific rope diameters and lay directions. The assembly and disassembly of the front end attachment section walks you through pinning the boom and setting the gantry. If you have ever watched a crew fight a stuck boom pin for three hours, you know why this matters.

Source Validity – OEM vs Aftermarket Documentation

I have been a master technician long enough to see what aftermarket manuals do to a job. They omit pages, change torque values, or leave out the 28 safety rules entirely. This document is the original Hitachi production print – not a scanned PDF with missing margins. Every chapter from CONSTRUCTION to TRANSPORTATION is intact. Page numbers checked out against the OEM file (original file: HITACHI_KH180-2_Operators_Manual_en-53931016797.pdf). You can cross-reference the serial number plate on your machine with the manual’s applicable serial number block. That is how factory documentation works. If you want a third-party reprint that says “generic crawler crane,” you know where to go. I wouldn’t send them a Christmas card.

Related manuals worth having on the same shelf: Fiat Hitachi KH125-3 Operators Manual – Factory Specs & Safety, HITACHI KH125-3 Hydraulic Crawler Crane Operation Manual, and Hitachi EX200-3 EX220-3 Excavator Operator’s Manual. If you are switching between crane and excavator work, those fill the gaps. For external reference, the crane’s drivetrain may share components with a Manual Transmission found in older heavy trucks; the Manual Transmission fluid specs in the manual match OEM recommendations for that gearbox.

Does this manual include lift capacity charts for all boom lengths?

Yes. The Specification and Dimensions chapter lists capacities by boom length and working radius. The manual warns against exceeding the rated load for a given radius. Charts are in SI units (meters and metric tons), but you can convert to feet and pounds using the tables provided on the inside cover.

Is this manual for the KH180-2 with a specific serial number?

Yes. It covers machine serial number 0564 (EM203-2-2E). If your KH180-2 falls outside that range, check the Fiat Hitachi publications for your serial block. The procedures are largely the same, but pin diameters and hydraulic pressures may differ.

Can I print this manual and take it into the field?

The PDF is unlocked for printing. I recommend printing the safety rules page and laminating it to hang in the cab. The full 150 pages fit in a three-ring binder.

Why do you say to avoid aftermarket copies?

Because I have watched a tech follow a third-party manual that listed the wrong boom pin retaining bolt torque. He broke the bolt, the boom shifted during a lift, and the crane was down for a week. The factory manual gives you the exact values. Aftermarket reprints often omit pages or misplace numbers. This is the real thing.

If you are responsible for a KH180-2, get the factory document on your tablet or print it. Access the Factory Manual from AutoRepairManuals – 150 pages of OEM data that keeps the crane safe and the job moving.
