Fiat Hitachi EX8000-6 Troubleshooting Manual – Direct From OEM

I’ve seen guys try to diagnose a no-start on an 800,000-pound excavator with a test light and a prayer. That ends badly. Fiat Hitachi EX8000-6 Troubleshooting Manual is what you need on the workbench before you touch a single fitting. 341 pages of factory procedures that tell you exactly how to test each system, what pressures to expect, and what the fault codes mean. No guesswork.

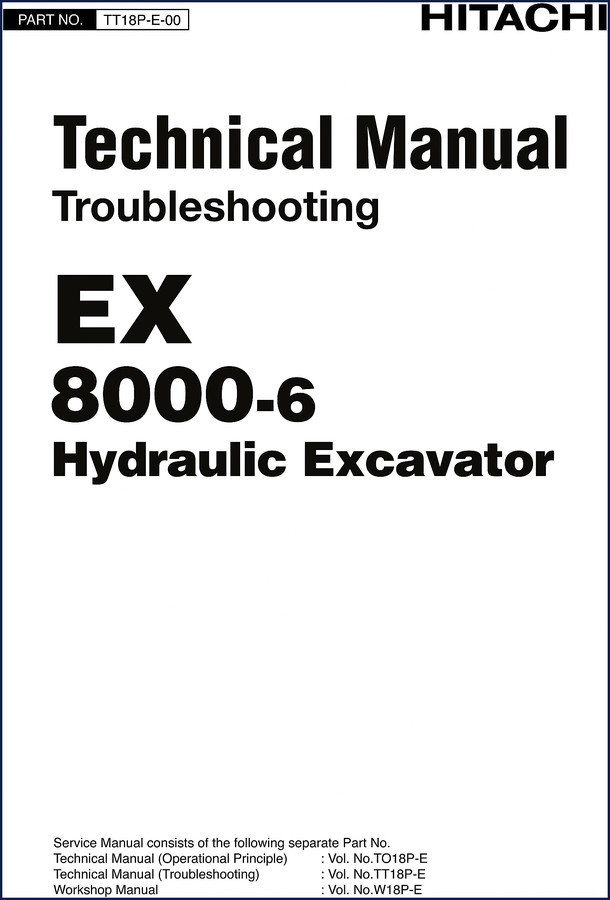

This is not some aftermarket rehash. Hitachi wrote it for their technicians. Page 1 starts with the part number TT18P-E-00 and the safety alert symbol. If you skip that section, you are asking for a hydraulic line to take your arm off. I don’t care how long you have been turning wrenches – read the safety section first.

341 Pages of Factory Diagnostics

Section 4 covers Operational Performance Tests. You get the full breakdown: engine speed checks, travel speed, swing speed, drift checks, cylinder cycle times. Every test has a standard table so you know what ‘within spec’ means. If your EX8000-6 is slow on the swing or drifts when parked, you go straight to Group 4. The manual spells out the test sequence and the acceptable range. No interpretation needed.

Section 5 is Troubleshooting, and that is where this manual earns its keep. Three sub-sections: A, B, and C. Fault code list, indicator blink patterns, and electrical system inspection. When the monitor lights up with a code, you flip to the fault code list in Troubleshooting A. It tells you the probable cause and the next step. That saves time. Zero filler.

Operational Performance Tests: Group 4 Excavator Test

Group 4 under Section 4 is the excavator test chapter. Travel speed, track revolution speed, mistrack check, travel parking leakage – all covered. You need to measure swing speed? There is a procedure. Swing motor leakage? Procedure. They even include a combined operation check for boom raise and swing function. If the machine hesitates during combine, you know which circuit to isolate. The manual expects you to have a flow meter, pressure gauges, and a stopwatch. No shortcuts.

Fault Code A, B, and C – Three Levels of Troubleshooting

Troubleshooting A is the primary fault diagnosis. You get the fault code list and a step-by-step diagnostic procedure. Troubleshooting B goes deeper into engine-specific fault codes. Troubleshooting C uses the blink pattern on the indicator to narrow down problems when the monitor screen is not available. That is a lifesaver on older machines with a dead display. All three sections rely on the same component layout diagrams in Group 2, so you know exactly where the sensor or solenoid is located.

What Does the Monitor Display Tell You?

Group 1 of Section 5 explains the monitor display outline, alarm indications, automatic snapshot, and manual snapshot. You can pull up maintenance history, life data, machine information, and setting menus. The manual walks you through each screen and what the data means. If the monitor shows an alarm for main pump pressure, you cross-reference it with the fault code list. No, you do not replace the pump because the alarm came on. You test pressure first using the procedure in Section 4 Group 5.

Electrical System Inspection: Disconnect Connectors the Right Way

Group 6 covers electrical system inspection. Battery voltage check, fuse inspection, alternator check (left and right), voltage check, continuity check, and circuit check using a lamp harness. Precautions for inspection? Yes, including instructions for disconnecting connectors without breaking them. I have seen too many techs snap a connector tab and then wonder why the fault comes back. This manual tells you the correct order and the tool to use. Follow it.

If you work on other Hitachi excavators, the diagnostic principles carry over. Check out the related manuals: Hitachi ZAXIS 850-3 / 850LC-3 / 870H-3 Troubleshooting Manual for similar test procedures on that platform. The Hitachi Zaxis 450 Troubleshooting Manual shares the same electrical inspection methods. For the largest models, the Hitachi ZAXIS 850-3 850LC-3 870H-3 870LCH-3 Troubleshooting manual is another resource.

This is a hydraulic excavator troubleshooting manual – not a Manual Transmission guide. The diagnostic logic is system-based, not drivetrain. But the same rule applies: never guess a spec. You wouldn’t guess on a Manual Transmission rebuild; same here.

Does this manual include wiring diagrams?

No, wiring diagrams are in the Workshop Manual, not this Troubleshooting Manual.

Can I use this for the EX8000-5?

The EX8000-6 has different hydraulic and electronic systems than the -5 model. Some testing procedures may overlap, but you should rely on the specific manual for your machine. Using the wrong troubleshooting manual could lead to incorrect diagnostics, wasted time, and potential machine damage. Always verify the model and serial number before purchasing. This manual covers the EX8000-6 only.

Period. That is what you get. 341 pages of factory-sourced troubleshooting. No reprints, no third-party assumptions. Access the Factory Manual and put it on your tablet in the cab. Next time the EX8000-6 throws a code, you will have the answer before you pop the first connector.
