Dressta TD-15M Service Manual – OEM Factory Documentation

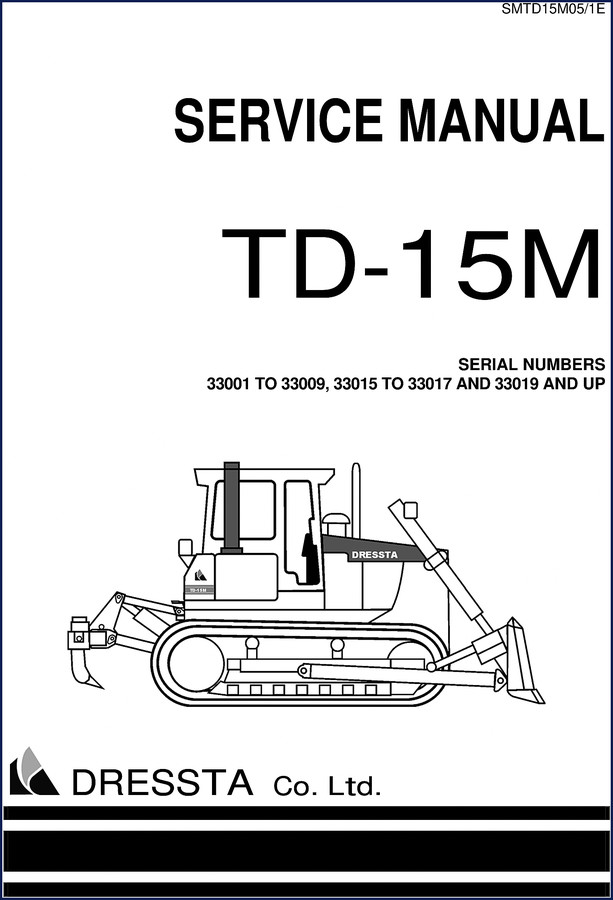

If you’ve ever tried to rebuild a Dressta TD-15M Service Manual transmission using a generic aftermarket guide, you know exactly what I mean when I say you end up with a box of parts and a headache. I’ve been wrenching for 28 years, ASE Master, and I’ve seen guys throw a torque converter back together because some third-party PDF said “tighten until snug.” That’s how you blow seals and waste a Saturday. This manual is the real deal – 546 pages of factory-sourced data from Dressta Co. Ltd., covering serial numbers 33001 to 33009, 33015 to 33017, and 33019 up. No reprint, no copy shop bindings. This is the same binder that sat in the dealer service bay.

Cooling System: Factory Flow Rates and Torque Data

Section 6 is the cooling system. You need to know the fan drive pulley torque? It’s in there. The coolant capacity for the radiator with reservoir? Listed. But what matters more is the sequence for the water pump installation – the manual gives you the tightening pattern and the angle specs. I’ve seen guys snap bolts because they skipped the order. Page 73 has the charge pressure for the hydraulic fan motor if your TD-15M has the optional setup. That’s the kind of detail you don’t get from a “universal” manual.

Transmission and Torque Converter: What the Aftermarket Gets Wrong

Section 7C is the transmission, and 7B covers the hydraulic torque converter. The Manual Transmission section alone runs over 40 pages. It tells you the clutch pack clearance for each gear, the exact spring lengths, and the seal installation direction. The torque converter stall test procedure is written step by step – including the oil temperature window and the pressure tap locations. Aftermarket manuals often skip the check ball orientation in the converter housing. That mistake costs you a core charge. This factory book catches it.

Electrical System: Wiring That Actually Matches Your Machine

Section 8 is the electrical system. It covers the entire harness layout, the starter circuit, and the alternator output tests. You get the pin-out for the main ECU connector, the ground locations, and the fuse block identification. If you’re chasing a no-start on a TD-15M, you need the factory resistance values for the crank position sensor – aftermarket diagrams often swap wire colors. This manual has the OEM color codes and the spec for each circuit. I’ve used it to trace a short in the cab harness and it saved me three hours of probe time.

Suspension and Steering: When the Track Frame Needs a Teardown

Section 14 covers suspension, and section 5 covers steering. The steering section includes the brake piston clearances and the steering clutch adjustment. If you’re rebuilding the final drives in section 7F, you need the preload on the tapered bearings. The manual gives you the running torque in inch-pounds after the nut is torqued. Suspension covers the equalizer bar pivot bore clearance. Without that spec, you’ll either bind the bar or have too much slop. Dressta factory documentation is the only place to get these numbers.

546 Pages – What’s Inside the Rest of the Manual

Beyond the big systems, you get the frame (section 9), hydraulics (section 10 – pumps, valves, cylinders, reservoirs and filters), power (section 12), superstructure (section 13), tracks or wheels (section 15), and mounted equipment (section 17). Each section starts with a job breakdown: required tool list, safety warnings, and the disassembly sequence. The torque tables are printed in the front of each major section – not buried in an appendix. You want the flow test procedure for the main hydraulic pump? Go to section 10A. It tells you the test port pressures and the flow rate at rated RPM. That’s not a guess.

Who Needs This Manual on Their Bench

This is for the guy who owns a TD-15M and doesn’t trust a dealer to do a bottom-end rebuild. It’s for the shop that sees a steady stream of dozers and needs the factory split torques for the engine-to-transmission coupling. If you’re a home garage mechanic working on heavy equipment for the first time, you need this manual because it tells you the safe jacking points and the proper lifting procedures. One wrong pick point on a 20-ton machine and you’re looking at a hospital visit. The manual’s introduction (page 5) outlines the safety symbols. That’s where you start.

Source Validity: This Is the Factory Print, Not a Copy

Every page carries the Dressta proprietary notice. The document is scanned from the original dealer binder – you can see the original page numbers and the revision bar at the bottom. I don’t trust third-party manuals that claim to “cover” the TD-15M but have wire diagrams from a different model year. This one is serial-number specific and it’s the same document that Dressta Co. Ltd. authorized for their dealers. If you want to compare, check the DRESSTA TD-40E Service Manual (2006) for a similar factory approach on a larger machine. Or the Dressta 560C Service Manual – Section: Mounted Equipment if you’re working on that line.

Frequently Asked Questions

Does this manual cover the TD-15M with serial numbers outside the listed range?

It covers 33001 to 33009, 33015 to 33017, and 33019 up. If your machine is outside that, the manual may still apply but verify with Dressta or your dealer.

Are torque values given in imperial units?

Yes. All torque specs are listed in foot-pounds and inch-pounds. No metric conversion table needed.

Does the manual include the engine overhaul section?

Section 12 covers the power unit (engine). It includes cylinder head bolt torque sequence, valve clearance specs, and injection pump timing. No separate engine manual required.

Is this a reprint or a scanned copy?

It’s a high-resolution scan of the original Dressta service manual. Every page is readable, including the fold-out wiring diagrams. No missing pages.

You’ve got the machine in the shop, the clock is ticking, and you need the right answer the first time. Access the Factory Manual before you crack a wrench. It’s the difference between a job that goes together right and a comeback that eats your profit. The Dressta 560C Operator’s Manual and the Manual Transmission reference can help with related tasks, but for the TD-15M, this is the only manual I’d put on my bench.
