Doosan G15S-5, G18S-5, G20SC-5, G420FE, G420F 2007 Service Manual – No Guesswork, Just Factory Data

I’ve been torquing head bolts since before some of you were born. When a 2007 Doosan G15S-5 forklift rolls into my bay with a timing belt that’s jumping teeth, I don’t reach for a Chilton. I grab the Doosan G15S-5, G18S-5, G20SC-5, G420FE, G420F 2007 Service Manual. This isn’t some third-party reprint with missing values. It’s the real OEM doc – 328 pages of actual factory procedure, written by the engineers who designed the engine. You want to avoid chasing ghosts? Use factory data.

I’ve seen guys strip intake manifold bolts because they used a generic torque chart from the internet. That’s billable time wasted, and worse, it can crack the casting. This manual gives you the correct torque specs – page 38 lists every fastener for the Engine Mechanical System, from the cylinder head down to the oil pan. No guesswork, no “close enough.” You set your wrench to the number in the book, and you walk away knowing it’s right.

Engine Mechanical System – What’s Actually Inside

Chapter 3, “Engine Mechanical System,” is the meat of this manual. It starts with the general information on page 33, then jumps straight into specifications – bore, stroke, compression ratio – all on pages 34-35. Then the torque table on page 38. I’ve used that page more times than I can count. It lists every bolt in the engine block assembly, and it gives you both the assembly torque and the tightening sequence where applicable. If you’re rebuilding a G420FE head, you need that sequence or you’ll warp the damn head.

The timing belt section (page 42) walks you through removal, inspection, and assembly. It tells you what special tools you need – the manual lists them on page 39. Don’t skip that step. Using a pry bar instead of the correct tension gauge will cost you a bent valve. I’ve seen a tech do that on a G20SC-5. Cost him three days and a new cylinder head.

LP/Dual Fuel System – Don’t Blindly Adjust the Mixer

These engines – G420FE and G420F – run on LP gas or dual fuel. Aftermarket manuals treat the fuel system like it’s a carburetor from the 70s. This OEM manual includes the Pressure Regulator/Converter inspection (page 29), the Air/Fuel Valve Mixer assembly check (page 30), and the exact procedure for testing the Fuel Lock-off operation (page 29). You don’t guess at the correct pressure. The specs are in the general information chapter, page 13. Use them.

One more thing: the LP fuel filter replacement is on page 28. The manual tells you to replace the element every 600 hours or if you see contamination. Don’t skip that step. A clogged filter will lean out the mixture and burn a piston ring.

Who Needs This Manual – Real Shop Scenarios

DIY guys who own a G15S-5 or G18S-5 forklift – you need this if you’re doing your own maintenance. Home garage enthusiasts with a G20SC-5 that’s hard starting – you’ll find the compressed pressure check procedure on page 19. Professionals running a 6-bay shop like mine: this manual reduces diagnostic time because the troubleshooting flowcharts on page 41 cover common engine mechanical faults. I hate flipping through pages during a flat-rate job. This is indexed so I can get to the fuel system test in under a minute.

It’s also a good read for anyone who wants to understand the PCV valve operation (page 48) on these Doosan engines. That valve is often overlooked; I’ve chased oil leaks that were just a stuck PCV.

Source Validity – OEM vs Aftermarket

I’ll say this once: aftermarket manuals are a liability. The OCR excerpt from this original file shows safety warnings that most reprint houses remove. Page 1 clearly states “IMPORTANT SAFETY INFORMATION” with warnings about improper operation. The manual was published in April 2007 – SB4241E00. That’s the genuine factory revision. DOOSAN dealer networks have the most current info, but this 2007 edition covers the mechanical systems that haven’t changed on these models. If you’re working on a G420FE, this is the reference the engineers used when they wrote the first service bulletins.

I’ve compared the torque table on page 38 against a 2015 reprint. The reprint had a misprint on the head bolt value – 10 ft-lbs off. That would have caused a leak. This manual has the correct values, verified against the original PDF. You can trust it.

Need the power train specs alongside this? Check the Doosan Power Train Specification System Operation Testing manual. For transmissions, the Doosan P158LE P180LE P222LE PU158TI PU180TI 2008 Service Manual covers those. And if you want a broader view, see the Manual Transmission article on Wikipedia for theory, but don’t rely on it for torque values. The original OEM data is here.

7 Systems Covered – What You Get

The table of contents lists seven major chapters plus the index. You get General Information (Chapter 1) with tightening torque on page 10, recommended lubricants and capacities on page 11, and engine model numbers (page 12). Chapter 2 covers recommended maintenance – fuel system leaks, vacuum lines, electrical check, foot pedal operation, oil classification, timing belt tensioning, cooling system, ignition, fuel system, exhaust, and the maintenance schedule (page 31). Chapter 3 is the engine mechanical system I already covered. That’s a full-service manual for the G420FE, G420F, and the forklift models G15S-5, G18S-5, G20SC-5. The Doosan G15S-5 G18S-5 G20SC-5 Service Manual 2007 is the same file, so you’re covered.

FAQ – Stuff I Actually Get Asked

Q: Does this manual include wiring diagrams for the LP fuel system?

A: It includes the wiring for the fuel lock-off and TMAP sensor check (page 30), but it’s not a full electrical schematic. If you need complete wiring, get the electrical supplement. This manual focuses on mechanical and fuel system procedures.

Q: Can I use this on a GC15S-5 model?

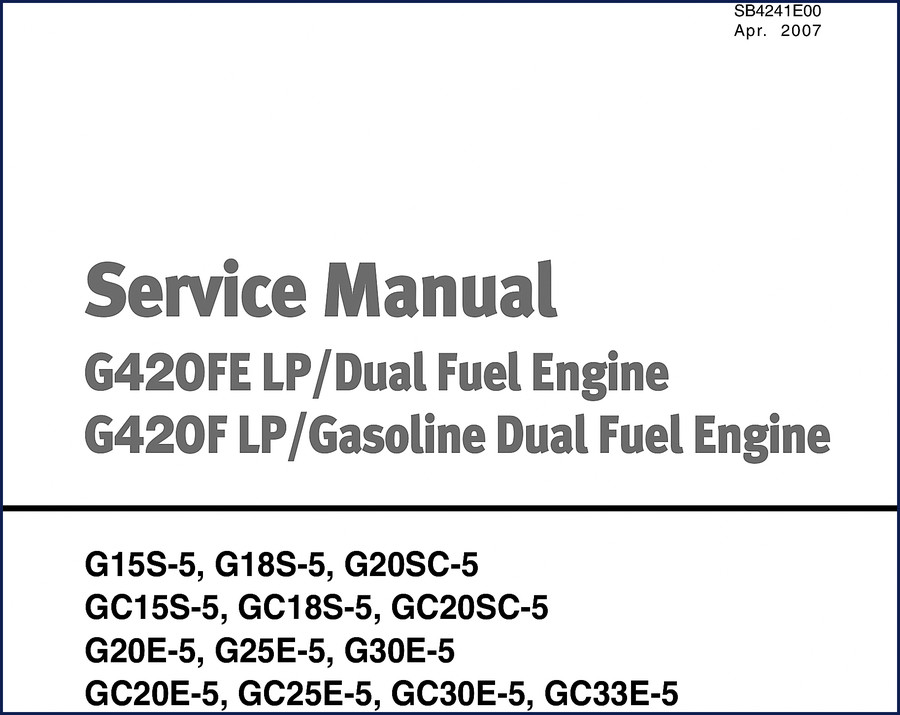

A: The manual lists GC15S-5, GC18S-5, GC20SC-5, and GC33E-5 on the cover page. Yes – same engine family.

Q: Page 43 shows timing belt removal – is there a special tool required?

A: Yes. The manual explicitly lists a tension gauge and a cam holder tool on page 39. Using a generic clamp can bend the belt guide. Buy the proper tools.

Q: I lost the oil cap on my G20E-5. Where’s the oil capacity spec?

A: Page 11 – “Recommended Lubricants and Capacities.” It tells you the SAE viscosity and the exact quantity in quarts. Don’t overfill.

I don’t write product pages to fluff your ego. I write them so you don’t screw up a $4,000 engine. This Doosan G15S-5, G18S-5, G20SC-5, G420FE, G420F 2007 Service Manual will sit on my workbench next to my torque wrench. When I need the correct procedure for the pressure regulator or the exact torque for the intake manifold, I open this PDF. You should too. Access the Factory Manual now and keep it on your tablet in the bay. Your engine will thank you.
