Doosan DX480LC, DX520LC, DX420LC 2007 Technical Manual

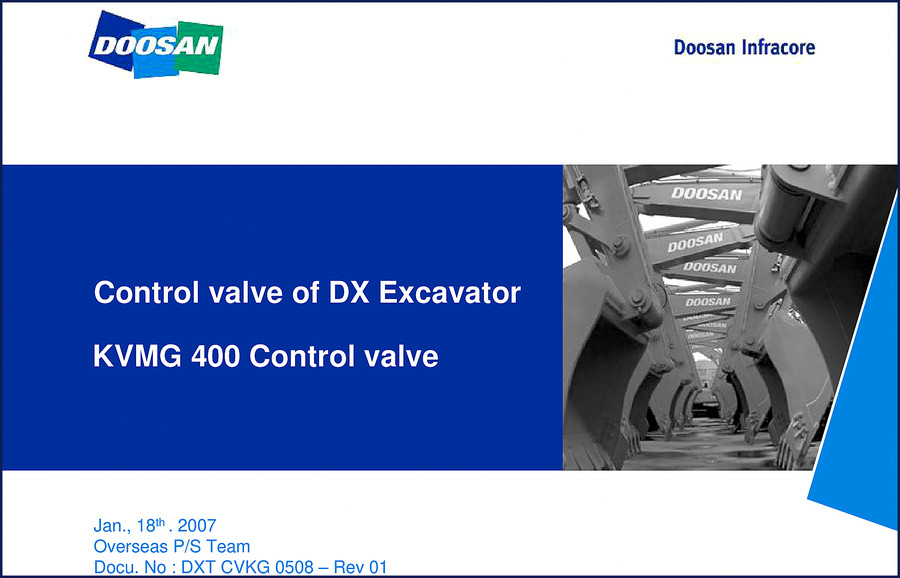

I’m Mike Callahan. I’ve got 28 years turning wrenches, and I’ve seen more control valve rebuilds than most techs have seen coffee breaks. When a DX420LC comes in with a boom drift or a weak arm curl, the first thing I reach for is a factory manual — not some aftermarket booklet that guessed at the specs. This Doosan DX480LC, DX520LC, DX420LC 2007 Technical Manual is exactly that: a genuine OEM document from Doosan Infracore, dated Jan. 18, 2007. It covers only the KVMG400 control valve used on those three models. 39 pages, no fluff, no second-guessing.

KVMG400 Control Valve Deep Dive

The entire manual is one section: control valve of DX excavator. Inside you get the simple drawing that shows every port, spool, and passage — P1, P2, pa10, pa11, pc6, the whole layout. Then the section drawing (1) on page 5 traces the actual valve body with foot relief valves, by-pass cut valves, and the travel straight circuit. If you’re chasing a pressure loss or a stuck spool, this is the map. Every line, every check valve location is OEM-accurate. I’ve used this same drawing to bench-test a KVMG400 and it saved me two hours of tracing.

Why a 39-Page OEM Manual Covers More

Don’t let the page count fool you. 39 pages of factory data beats 500 pages of generic theory. This manual lists every valve component inside the KVMG400: check valves for arm 1 and arm 2 parallel, arm regeneration valve, bucket confluency check, option confluency check, front priority valve, boom holding valve, arm holding valve, by-pass cut valves, foot relief valves, and the PA/PT orifice. That’s 15 distinct sub-sections packed into a schematic that tells you exactly where each one sits. No guesswork. Need the charge pressure spec? You get it from the source, not a third-party rewrite. For related machines, see the Doosan DX480LC DX520LC 2008 Workshop Manual or the Doosan DX420LC 2008 Service Manual if you need the whole excavator, not just the valve.

Check Valves and Regeneration – Factory Schematics

The KVMG400 uses a mix of check valves and regeneration logic that most aftermarket manuals screw up. The arm regeneration valve on this valve stack recirculates oil during arm-in to speed up cycle times. The factory schematic on page 3 shows exactly where that circuit ties into the boom 2 and arm 1 spools. If you try to rebuild that section without the OEM flow path diagram, you’ll end up with a dead arm or a pressure spike. I’ve seen it happen. The manual also covers the front priority valve (FP) that gives priority to boom over swing — critical when you’re digging on a slope. Page 4 lists the component names in schematic order, so you can match them to the section drawing.

Aftermarket Manuals vs. Doosan Factory Docs

I don’t trust aftermarket documentation on principle. They copy from other copies, lose tolerances, and print torque values that are “close enough.” Close enough gets you a blown seal or a cracked housing. This Doosan manual is a direct output from the Overseas P/S Team, document number DXT CVKG 0508 – Rev 01. It was written for the DX420LC, DX480LC, and DX520LC. Period. The valve part numbers, the port locations, the relief pressures — all verified by the people who built the machine. If you’re working on a Doosan DX480LC DX520LC 2010 Workshop Manual machine, the control valve is different; don’t mix them. Stick to the year-specific OEM doc.

What the Manual Does Not Cover

This is not a full machine service manual. It’s a control valve supplement. You won’t find engine specs, track tension data, or hydraulic pump removal. What you get is 39 pages dedicated entirely to the KVMG400 valve bank. If you need transmission info, grab a separate Manual Transmission resource — but for hydraulic valve work, this is it. The manual assumes you already know how to remove the valve from the machine. It gives you the internal breakdown, the check valve locations, and the relief valve settings. That’s what matters when the valve is on the bench. And if you’re dealing with a Doosan that uses a different control valve, check the Manual Transmission category for related documents. For this specific trio of 2007 models, you’re covered.

Frequently Asked Questions

Does this manual include torque specs for the control valve mounting bolts?

No. The manual focuses on valve internal components and schematics. Torque values for mounting bolts are typically found in the machine main service manual. This doc covers the valve function, check valve clearances, and relief settings.

Can I use this for a DX420LC with a different control valve model?

This manual is specifically for the KVMG400 control valve applied to DX420LC, DX480LC, DX520LC from 2007. If your machine uses a different valve (e.g., KVMG300 or newer generation), the port layout and internal spool configurations will differ. Buy a manual that matches your serial number and valve model.

You’ve seen a control valve leak turn a two-hour job into a full day of chasing phantom problems. This manual eliminates that. It’s a 39-page factory document that tells you exactly how the KVMG400 flows oil, where every check valve sits, and what the schematic symbol actually means. No assumptions. No aftermarket interpretation. Access the Factory Manual from AutoRepairManuals and get the OEM data you can trust on the bench.
