Description

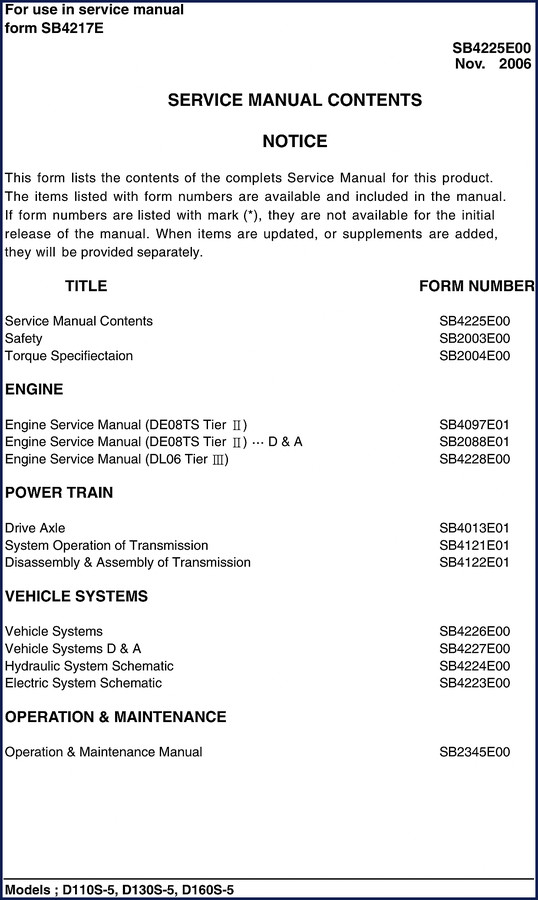

Doosan D110S-5, D130S-5, D160S-5 2006 Technical Manual

If you are turning wrenches on a Doosan D110S-5, D130S-5, or D160S-5 with the DL06 Tier III engine, the 2006 Technical Manual is the only piece of paper I trust on my bench. I have seen too many guys try to wing it with aftermarket summaries or some PDF that claims “covers all models.” That is how you wind up with a head bolt torqued to 80 ft-lbs when the factory calls for 110. The difference between a running engine and a blown gasket is the number in the manual. This one is OEM from Doosan, printed in 2006, 206 pages, and it gives you the real numbers.

Working in my shop in San Antonio, I see lift trucks that have been cobbled together with mismatched parts. The D110S-5 shares a lot with the D130S-5 and D160S-5, but the injection timing and turbocharger spec differ. A generic procedure will get you close – close is not a running engine. This manual breaks down the Engine assembly (page 15), the performance curve (page 13), and the exact fuel injection system data (section 3.4). If you need to know charge pressure after a turbo swap, page 175 is where the turbo charger maintenance starts. Page 10 lists the engine specifications that apply to all three models.

Safety Regulations & Engine Specifications – Read Both

Section 1 starts with safety regulations (page 5). That means the manual expects you to read hazard warnings before you pull a wrench. I know, you have heard it before. But there is a reason Doosan put it first. The DL06 engine in the D160S-5 makes around 160 horsepower at 2200 rpm – that is enough torque to break a wrist if you are not careful around the fan belt. Section 1.4 (Engine Performance Curve) on page 13 gives you the graph. Use it to diagnose power loss instead of guessing fuel settings.

Disassembly and Reassembly of Major Components – Section 3

This is where the manual pays for itself. Section 3.1 takes you through engine disassembly (page 54). Section 3.2 covers inspection and measurement on major parts (page 70). That includes cylinder bore wear limits, piston ring gap, and crankshaft journal clearance. I had a D130S-5 come in with a knock – the previous shop had installed the wrong bearing shells. The manual’s table on page 78 would have caught that. Section 3.3 is reassembly (page 94), and it lists the torque sequence for the cylinder head. That is a multi-step process with angle tightening. Write it on the bench with a marker if you have to. Skip the sequence and you will be pulling the head again inside 200 hours.

Section 3.4 is the fuel injection system (page 120). For the D110S-5, injection pump timing is different from the D160S-5. The manual gives you the timing marks and the static timing procedure. I have used it to set an injection pump on a D160S-5 that was so far off the engine would not idle. After resetting per the manual, it ran smooth. Do not trust the aftermarket CD that says “all models same.”

Electrical System and ECU Diagnostics – Section 3.5 & 3.6

Wiring diagrams in aftermarket manuals are often reversed pinouts or missing a ground path. Section 3.5 (Electrical System, page 134) comes from Doosan’s engineering group. It covers the starting circuit, alternator, and glow plug system. Section 3.6 (Engine Diagnostic, page 146) lists fault codes for the ECU (EDIA diagnostic tool covered on page 19). If the engine goes into derate, you need those codes. The manual gives you the remedy table (page 42). One of my techs spent an hour chasing a phantom low oil pressure warning – the manual on page 146 showed the test point for the pressure sensor. Fixed in ten minutes.

Audience and Real-World Use Case

If you are a fleet mechanic maintaining a half-dozen Doosan lift trucks, this Technical Manual belongs in your toolbox. It is also for the home garage guy who bought a used D130S-5 and wants to overhaul it without burning a weekend. I have seen DIYers buy a rebuilt injection pump, bolt it on, and wonder why the engine smokes. The manual’s fuel injection timing procedure (section 3.4) will walk you through the pump-to-engine alignment. It is not guesswork.

The workshop owner needs this because liability shows up when a tech bolts a high-pressure fuel line with the wrong torque and it cracks. Page 120 has the pipe torque spec. A cracked fuel line can spray diesel on a hot exhaust manifold – that is a fire I have seen. Do not let it happen on your watch.

Why OEM Documentation Beats Aftermarket Copies

Aftermarket manuals often copy the original, lose a decimal point in a torque value, or omit the safety warnings. I have an aftermarket “for D110S-5” that shows the wrong oil pump removal procedure – it tells you to unbolt the pump from the front, which on the DL06 requires removing the timing gear cover first. The OEM manual section 3.1 page 54 specifies the order: drain oil, remove pan, then timing cover. That difference matters. The OEM publication also includes the special tool list (section 6, page 190) with Doosan part numbers. You can buy or rent the correct pullers instead of hammering on a seal and damaging the housing.

If you need a Doosan DE08TS Engine Technical Manual”>Doosan DE08TS Engine Technical Manual for the smaller engine line, or the Doosan Lift Trucks Power Train Drive Axle Specifications Manual”>Doosan Lift Trucks Power Train Drive Axle Specifications Manual, those are separate documents. For the DL06, this is the one. You may also want the Doosan Diesel Engine Specifications Systems Operation Testing”>Doosan Diesel Engine Specifications Systems Operation Testing manual for a broader overview, but for hands-on work, stick with the factory technical manual.

FAQ – Common Questions About This Manual

Does this manual cover the D110S-5, D130S-5, and D160S-5?

Yes. All three models share the DL06 Tier III engine. The differences in injection timing, power output, and turbocharger specs are listed separately in the specs section and fuel injection chapter.

What torque specs are included?

Head bolts, main bearing caps, connecting rods, flywheel, injection pump, turbocharger, and fuel line fittings. Each with the tightening sequence and angle where required.

Is this a reprint or a scanned copy?

It is an original OEM PDF from 2006, 206 pages, with clear diagrams and tables. No third-party additions or missing pages.

Can I use this manual for a manual transmission?

This manual focuses on the engine only. For transmission work, see the separate Manual Transmission”>Manual Transmission guide from Doosan. The engine manual references the transmission only for bellhousing torque specs. For the DL06, the engine and transmission are separate systems. You will need the Manual Transmission”>Manual Transmission manual for gearbox repairs.

I have been a master tech for 28 years, and I can tell you the difference between a job that holds and one that comes back on a hook is the information you rely on. The 2006 Doosan D110S-5, D130S-5, D160S-5 Technical Manual puts the factory data in your hands – torque specs, clearances, diagnostic steps, and safety warnings. Skip the aftermarket shortcuts. Access the Factory Manual and keep it on your tablet or print it for the bench. Your engine will thank you.
