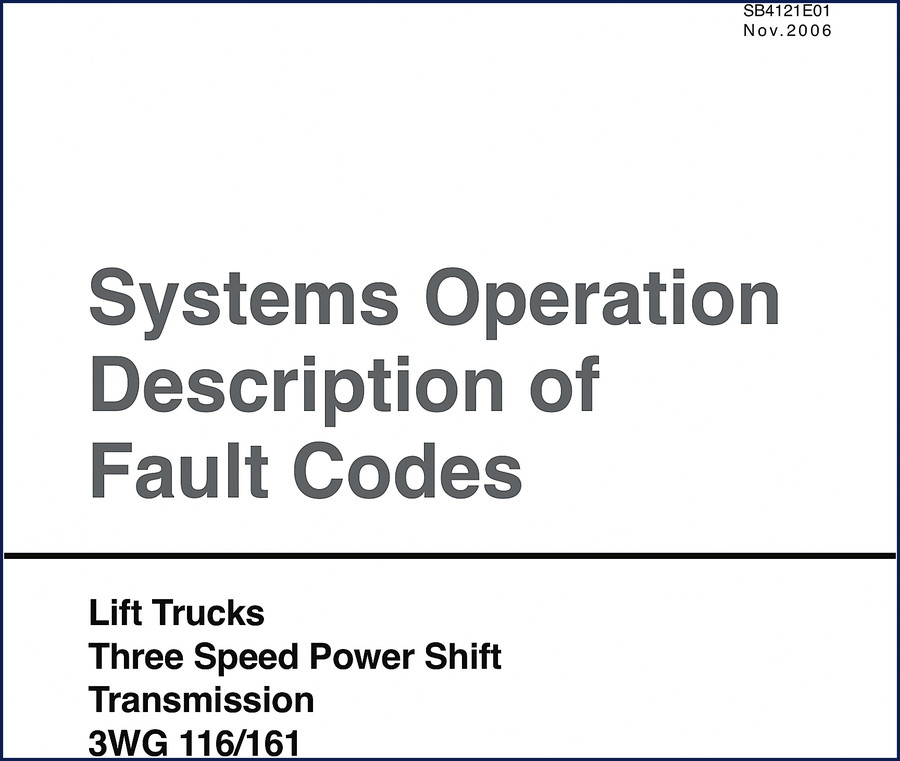

Doosan 3WG 116, 3WG 161 2006 Diagnostics Manual

You are hunting a fault code on a 3WG 116 or 3WG 161 powershift transmission and you need the factory procedure. Aftermarket PDFs give you generic error lists and hope you guess the right fix. That costs billable hours and can burn out a solenoid valve if you misread the calibration sequence. This Doosan 3WG 116, 3WG 161 2006 Diagnostics Manual is the OEM publication – 57 pages of verified fault code definitions, system operation breakdowns, and torque specifications that match the production line. I have torqued my share of transmission bolts, and I will not touch a control unit without the factory wiring diagram and the AEB start sequence. This manual gives you both.

Transmission Control and Fault Code Logic

The transmission control unit (TCU) in these three-speed powershift boxes talks through a DW-3 controller and a display that shows error codes. Pages 10–11 walk through the Electronic Control unit TCU and the Electronic Controls for Powershift transmissions. You get the exact meaning of every blink code – no translation to guess. The manual also covers the independent calibration of the shifting elements (AEB) and the inching device. If you skip the AEB calibration, the transmission will shift hard or slip under load. That is a tow truck call waiting to happen.

Torque Converter and Powershift Transmission: Key Specs

Function of the Converter starts on page 5 with a schematic view of a hydrodynamic torque converter. The oil circuit diagram on page 24 shows forward 1st speed flow. Torque specs for the transmission housing bolts, converter bolts, and valve body fasteners are listed in the Tables. You need the exact numbers – not a generic range – because under-torquing a converter housing can cause oil leaks and clutch pack failure. Over-torquing strips the threads in the aluminum case. Use the factory values from this manual.

What Does This 57-Page Diagnostics Manual Cover?

Systems Operation section covers the converter, powershift transmission, transmission control (DW-3 controller, display, error code definition, TCU), AEB starter, layout views, installation front and rear, schedule of measuring points and connections, oil circuit diagram, gearbox diagram, power flow forward and reverse, electro-hydraulic control with proportional valves, fully automatic control EST-37A, controller DW-3, and a full Description of Fault Codes beginning on page 32. That is everything you need to diagnose a hard shift, no shift, or fault code on a 3WG 116 or 3WG 161.

AEB Starter Procedure: Factory Sequence Matters

The AEB starter section (page 16) lists the procedure to start AEB, display during AEB-Mode, procedure to start ISK, and display during ISK mode. If you power-cycle the TCU without running the AEB calibration, the transmission defaults to a safety mode that limits speed and torque. I watch techs fight this for an hour because they do not have the manual. The ISK procedure calibrates the clutch pressure – do it wrong and you get a code 57 or slipping clutches. This manual gives you the step sequence with the exact display responses.

3 Reasons to Ditch Aftermarket Fault Code Tables

First, aftermarket tables often mix 3WG 116 and 3WG 161 codes with older 2WG models – the pinouts are different. Second, the torque values for the transmission control valve bolts are unique to these models; generic specs will not match the M8x1.25 flange bolts used. Third, safety warnings in the OEM manual (page 3) cover hazards specific to high-pressure hydraulic circuits in lift trucks. You miss those warnings and you risk a line rupture under pressure. Stick with the factory document.

If you are working on the related engine side, check the Doosan e-Doctor User Manual DL06 DL08 DV11 Engine”>Doosan e-Doctor User Manual for DL06/DL08/DV11 engines. For deeper training on the common rail fuel system, look at the Doosan Common Rail Engines DL06 DL08 DV11 Training”>Doosan Common Rail Engines DL06 DL08 DV11 Training manual. And if you need hydraulic pump diagnostics for wheel loaders, the DOOSAN Mega V Wheel Loader Main Pump Training”>DOOSAN Mega V Wheel Loader Main Pump Training manual covers that.

For background reading on what On-board Diagnostics (OBD)”>On-board Diagnostics (OBD) principles apply here, the manual uses a proprietary protocol on the CAN bus. The transmission itself is a Manual Transmission”>Manual Transmission derivative but with electro-hydraulic control – not a traditional manual gearbox. Understanding that difference helps when reading the power flow diagrams on pages 26–27.

Frequently Asked Questions

Does this manual cover engine diagnostics for the Doosan 3WG 116 and 3WG 161?

No. This is a transmission-only diagnostics manual. It does not cover engine fault codes.

What kind of torque specs are included in the manual?

The manual includes torque values for transmission housing bolts, converter-to-flexplate fasteners, valve body bolts, and pressure switch fittings. All values are given in Nm with foot-pound equivalents. The tables on pages 19–21 list specific torques for the installation front and rear views, so you can match bolt size and grade to the torque. Do not use aftermarket sources – the OEM spec for the M10 bolts holding the converter housing is different from a standard automotive torque chart because the housing is cast iron and the bolt holes are tapped into aluminum. Use the manual.

Is this manual suitable for a beginner DIY mechanic?

If you have basic mechanical skills and a reasonable set of tools (torque wrench, multimeter, scan tool), you can follow the diagnostics and AEB calibration steps. The manual assumes you know how to safely lift and support the vehicle and how to use a pressure gauge on the transmission test ports. Beginners should read the safety warnings on page 3 thoroughly before starting.

Can I use this manual for other Doosan lift truck models?

Only if they use the same 3WG 116 or 3WG 161 transmission. Do not use it for 2WG models or older 4-speed boxes. The fault code list and wiring diagrams are specific to these two transmissions.

Access the Factory Manual and put the guesswork out of your transmission diagnostics. You get 57 pages of OEM procedures, fault code definitions, and torque specs – all verified against Doosan’s 2006 production data. Your transmission will thank you.
