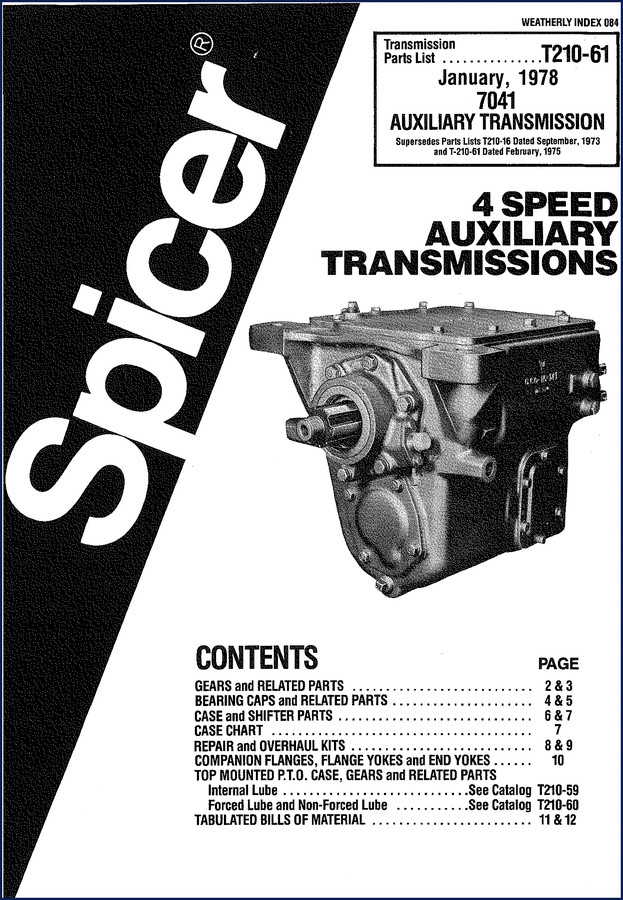

Dana Spicer 7041 1973 Service Manual – Factory Specs for the 4-Speed Auxiliary

Mike Callahan here. I’ve torqued more head bolts than most people have had hot meals, and I’ve seen enough aftermarket junk manuals to fill a dumpster. If you’re working on a Dana Spicer 7041 – that 4-speed auxiliary transmission used in heavy trucks, off-highway equipment, and military rigs – you don’t want some reprint from a third-party that guesses at torque values. You want the original Dana Spicer 7041 1973 Service Manual. 17 pages of what DANA CORPORATION printed in ’73, covering exactly what the factory service man used. This isn’t a highlight reel; it’s the real deal.

Lubrication Specifications – Get the Oil Right or Waste a Shift

Page 3 of this manual spells it out: splash lubrication for all internal bearings, bushings, shafts, and gears. Capacity is 11 pints at 0° installation – and that varies with angle. The table says above 0°F use SAE 30, 40, or 50 heavy-duty engine oil meeting MIL-L-2104B or MIL-L-45199 Series 3. Below 0°F drop to SAE 30 straight mineral gear oil. Above 32°F you can run SAE 50, 40, or 30 H.D. engine oil with MS, DG, DM, or DS service classification. That’s not a suggestion; it’s the factory spec. Skip the multi-purpose axle greases – Spicer says they aren’t recommended in any unit power or auxiliary transmission. Overfill? You’ll get oil breakdown from heat and aeration, then heavy varnish and sludge that plugs oil ports and builds up on splines. I’ve seen it happen. Follow the manual.

Oil Change Intervals – When to Drain That Thing

The manual doesn’t give a single mileage number because every job is different. For on-highway: drain and flush every 20,000 miles. Off-highway? Every 30 days. Check the oil level every 2,000 miles on the road or every 24 hours off-road. Initial oil change should happen at the first practical opportunity – could be 100 miles, could be 24 hours off-highway, but not more than 2,000 miles. That’s straight from page 3. Ignore it and you’ll be cracking open the case early.

Shift Pattern – Know Your Gears

The manual shows the shift pattern: LO LO, OVERDRIVE, NEUTRAL, UNDER, DIRECT. That’s the layout for the front of the transmission. If you’re swapping a 7041 into a rig and the shift rails are reversed, you’ll need to sort the linkage. This OEM document has the original diagram. No guessing.

Overfilling Prevention – Don’t Cook the Oil

Page 3 has a bolded warning: “Do not overfill this auxiliary with lubricating oil.” Overfilling causes oil breakdown from excessive heat and aeration. That leads to varnish and sludge that clogs ports and builds up on splines and bearings. Overflow often escapes out the breather or front and rear bearing caps, contaminating parking brakes. That’s a fire hazard and a liability. The manual tells you exactly why – not just what to do. That’s the difference between factory documentation and a cut-and-paste job.

Source Authenticity – OEM vs Aftermarket Documentation

This is a scanned original from 1973, published by Dana Spicer themselves. Not a third-party rewrite, not a condensed version. The 17 pages include the introduction, shift pattern, lubrication table, oil change intervals, caution about towing (do not tow vehicles equipped with Spicer transmissions at high…), and all the factory specs. When you open this PDF, you’re looking at the same pages the dealer service department used. I’ve been burned by aftermarket manuals that list a generic torque value – that costs you time and parts. Access the Factory Manual and you’ve got the real thing.

This manual covers the Spicer 7000 Series 4-Speed Auxiliary Transmissions – exactly the 7041 model. If you need parts diagrams, check out the Dana Spicer 7041 1978 Parts Catalog – OEM Specs for 4-Speed Auxiliary. For other Spicer units, Dana Spicer 1372-A Service Manual – Factory Specs & Rebuild Guide or Dana Spicer ES60-5, CM59, ES60-5A, ES60-5C, ES60-5D Service Manual cover related transmissions. For background on manual transmission operation, see Manual Transmission on Wikipedia, but don’t confuse that with the factory procedure you need for the 7041.

A wrench doesn’t care if you’re a pro or a beginner – it only works right when you use the right spec. This Dana Spicer 7041 1973 Service Manual puts the original spec in your hands. 17 pages, factory torque specs, lubrication table, oil change schedule, and the shift pattern you can trust. Get it, print it, put it on your bench. Access the Factory Manual now.

Frequently Asked Questions

What oil capacity does the 7041 hold?

11 pints at 0° installation. Capacity varies with angle of installation.

Can I use multi-purpose gear oil in a Spicer 7041?

Not recommended. The manual states extreme pressure additives found in multi-purpose or rear axle type lubricants are not recommended in a Spicer unit power or auxiliary type transmission. Use only heavy-duty engine oil meeting MIL-L-2104B or MIL-L-45199 Series 3 above 0°F, or straight mineral gear oil below 0°F. Vegetable oils, animal oils, resins, soaps, graphite, fillers, or foreign material are also prohibited. Stick to the factory spec or you risk varnish buildup and oil breakdown.

How often should I change the oil in the 7041?

On-highway: every 20,000 miles. Off-highway: every 30 days. Initial change at first practical opportunity (100 miles or 24 hours off-highway, but not over 2,000 miles). Check level every 2,000 miles on-highway, every 24 hours off-highway.

What is the shift pattern for the 7041?

From the front of the transmission: LO LO, OVERDRIVE, NEUTRAL, UNDER, DIRECT. The manual includes a diagram.
