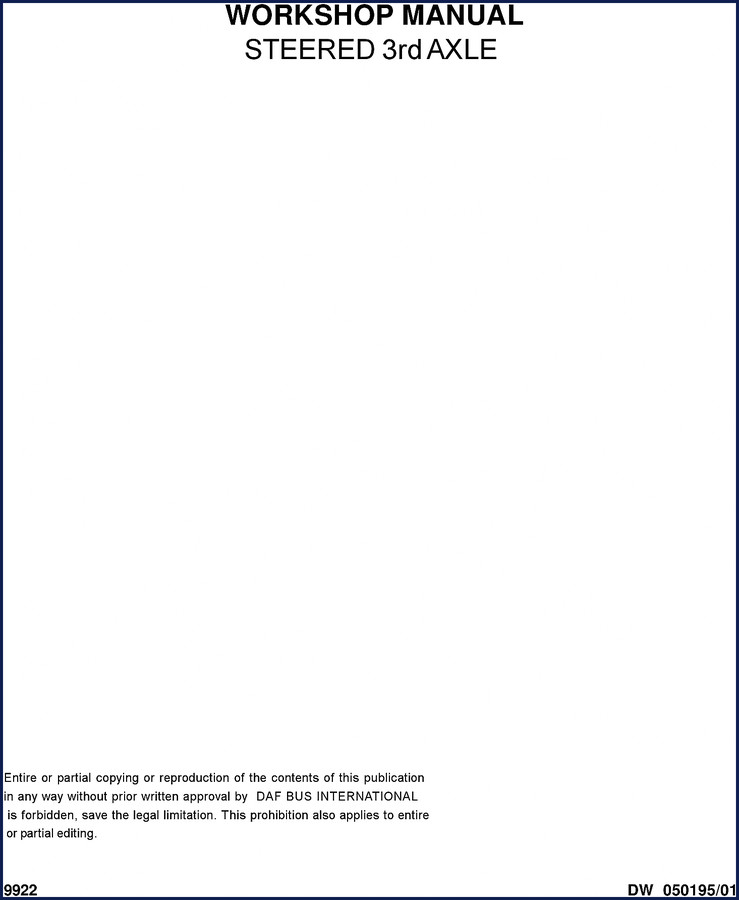

DAF SBR 3015 Workshop Manual – Steered 3rd Axle Service Guide

I’ve been turning wrenches for 28 years, and I can spot a third-party manual from across the shop floor. The DAF SBR 3015 Workshop Manual is OEM—straight from DAF BUS. That means the electro-pneumatic schedule, the locking sequence, the tightening moments—they all match what the factory built. If you’re working on a steered 3rd axle on a truck or bus, this is the only document you should trust.

44 pages. That’s all it usually takes to keep a steer axle from fighting you.

DAF SBR 3015 Workshop Manual: 44 Pages of Factory Data

The table of contents starts with an introduction that lays out the component overview and the electro-pneumatic schedule. Section 1.2 diagrams every air line and solenoid. You get the whole system description in section 2.4—functioning, operation, automatic and manual locking, plus the consequences of a lock failure. This is the kind of detail that saves your Saturday. If you’ve ever had a steer axle lock at highway speed, you know exactly why section 3 (Safety) runs a full spread. It covers pinching hazards, stored energy in the air system, and the right way to block the axle before you touch anything.

Electro-Pneumatic Schedule: Understanding the System

Section 1.2 is where most guys get lost. The two-way valve, the pressure switch, the warning light—they all interact through a sequence that’s laid out in a step chart. You don’t guess; you follow the pressure drops from the tachograph signal to the blocking valve on the steering gear. Every component in section 4 gets its own description: toggle switch, two-way valve, blocking of the axle steering gear, tachograph (with wiring), pressure switch, warning light, and the air bellow/lock. That’s 13 pages of pure component-level detail. No guesswork.

Torque Specs and Fluid Capacities from Section 5

Technical data starts on page 16. You’ll find tightening moments for the tie rods, steering arms, and the axle mounting bolts. All values are in Nm—the factory spec. For your San Antonio shop, convert to ft-lbs using 1 Nm = 0.7376 ft-lb. I’d recommend printing that conversion table and taping it to your toolbox. The oil specification tells you exactly which grade to use for the steering gear. Wheel position data on page 18 gives toe-in and camber angles—critical for tire wear on a steer axle. Air system pressures are listed on page 19, including the minimum pressure required before the lock will release.

If you need the exact thread locker or sealant, the identification section on page 19 cross-references DAF part numbers to standard industrial equivalents. You will not find this data in any aftermarket compilation. I’ve seen Chilton manuals that list “tighten securely”—that’s a lawsuit waiting to happen. Page 16 gives you real numbers.

What Safety Procedures Are Covered in Section 3?

Section 3 runs a full two pages on hazards specific to the SBR 3015. It covers pressurised air lines (pinch and blowout), the risk of the steering gear rotating unexpectedly if the lock releases during service, and the mandatory blocking procedure using a mechanical stop. The manual tells you to chock the wheels, release all air pressure, and physically block the steering arm before you remove any components. That’s not a suggestion—it’s the factory procedure. Skip this page and you’ll regret it.

Get the Right Special Tools Before You Start

Section 6 lists the special tools DAF specifies for this axle. You can’t fake a locking-ring compressor or a tie-rod puller made for the 3015. The manual gives part numbers. If you don’t have them, the job will take three times as long and you’ll probably damage a seal. I keep a list of these tools taped to my box because every time I try to improvise, I end up ordering parts anyway.

For related work on the same truck, you might need the DAF LF45 LF55 Series Workshop Manual 2010 for engine and drivetrain specs. The DAF LF45 LF55 Steering Workshop Manual covers the front steering setup separately. And if you’re dealing with pneumatic circuits, the DAF LF45 LF55 Braking System Workshop Manual complements the air system data in this manual.

You can’t treat this axle like a standard Manual Transmission—the steering geometry is unique. If you need background on gearbox internals, the Manual Transmission page on Wikipedia is a reasonable starting point, but for the axle steering, stick to this factory document. Aftermarket manuals recompile snippets from multiple sources and miss the locking sequence entirely.

This manual is intended for anyone who owns or works on a vehicle with a DAF SBR 3015 steered 3rd axle—DIY owners maintaining a bus conversion, fleet technicians in a truck shop, or home garage enthusiasts who bought a retired fire truck. The real-world use case: a steering gear that won’t lock when toggled. You trace the pressure switch signal using the electro-pneumatic schedule on page 6, check the tachograph circuit as described in section 4.4, and test the two-way valve per the step sequence. That path doesn’t exist in a generic repair book. It’s factory-only.

Does this manual include wiring diagrams?

Yes. Section 1.2 has the electro-pneumatic schedule schematic.

What torque values are listed for the steering linkage?

Tightening moments for the tie rods and steering arms are given on page 16 in Nm. The manual lists values for the lock cylinder bolts, the two-way valve mounting, and the axle pivot bracket. For example, the tie-rod ball joint nut is specified at 250 Nm (184 ft-lb). Without these numbers, you risk under‑torquing and having a joint separate at speed, or over‑torquing and cracking the casting. The steering arm pinch bolts also have a specific sequence and torque—page 16 covers that. Every bolt that holds the axle to the chassis is accounted for. If you’re replacing the air bellow, the manual tells you the torque for the clamp ring. These are the kind of details that keep a steer axle tracking straight for a hundred thousand miles.

You’ve seen what happens when somebody uses a generic spec—leaks, loose hardware, or a steering lock that fails at the worst moment. This OEM manual gives you the real data from DAF. 44 pages, factory diagrams, safety procedures, and torque values you can rely on. Access the Factory Manual and get the job done right.
