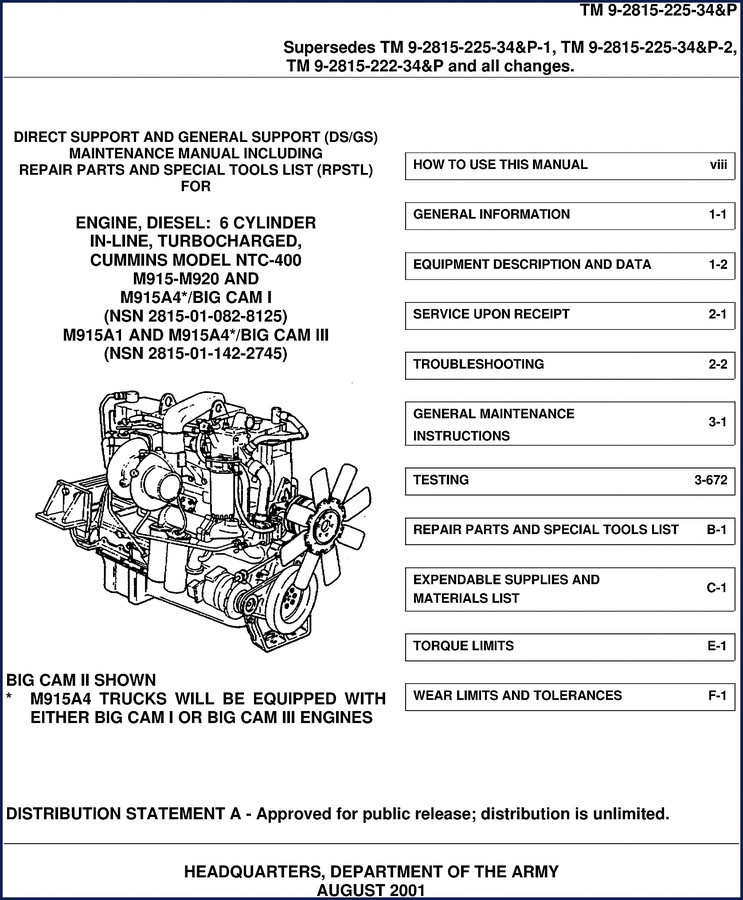

Cummins M915, M915A1, M915A4, M920, Big Cam III 2001 Service Manual

I’ve torqued enough Cummins head bolts to fill a 55-gallon drum with scrap. The Cummins M915, M915A1, M915A4, M920, Big Cam III 2001 Service Manual is the factory document the Army issued. It’s 940 pages of direct-support maintenance for the NTC-400 diesel. You don’t guess with a military engine—you follow the steps exactly or you risk a catastrophic failure that costs you a week of billable time and a lot of explaining.

Page 1 lists the exact models: M915, M915A1, M915A4 (with either Big Cam I or Big Cam III), and M920. The manual supersedes three earlier TMs, so you’re getting the consolidated 2001 revision. If you’re rebuilding, testing, or troubleshooting one of these engines, this is the only source I’d trust on my bench.

Page 2 Warning Summary – Carbon Monoxide and Compressed Air

Page 2 is the first thing you should read. Carbon monoxide kills without warning. The manual lays out five rules: don’t idle in closed spaces, keep ventilators running, and never use compressed air above 30 psi for cleaning. I’ve seen guys blow dirt into their face because they skipped the chip guard requirement. That warning isn’t legal padding—it’s experience written down. Heed it.

22 Malfunctions: The Troubleshooting Section

The troubleshooting chapter runs from Malfunction 1 through Malfunction 22. Each one covers a specific symptom, probable cause, and corrective action. Need to diagnose low power on a Big Cam III? Check Malfunction 9. The manual gives you the steps in order—no skipping, no assumptions. I’ve used this section to find a clogged fuel return line that three other techs missed because they didn’t follow the logic tree.

Torque Limits and Wear Tolerances – Appendix E and F

Appendix E lists torque limits for every bolted joint on the NTC-400, from the main bearing cap to the injector hold-down. Appendix F gives you wear limits for cylinder liners, piston rings, and valve seats. These are factory specs—not a forum estimate. On a Big Cam III, the head bolts call for 180–200 lb-ft in a specific sequence. Page 2? No, that’s in the Chapter 3 procedure. The manual tells you the pattern and the angle if required. Use a calibrated torque wrench and follow the numbers.

What Makes a Factory Manual Better than Aftermarket?

I’ve seen aftermarket manuals that copy the table of contents but miss the critical footnotes. This one comes direct from the Tank-automotive and Armaments Command (TACOM). It includes the LOEP (list of effective pages) and the full Repair Parts and Special Tools List (RPSTL) in Appendix B. You get part numbers, NSNs, and illustrations. Aftermarket manuals skip that detail. If you’re searching for a special tool like a cylinder liner puller, the RPSTL tells you the exact Army stock number. You won’t find that in a Chilton. For more documentation on this engine family, check the Cummins NTC-400 Engine 2001 Technical Manual and the Cummins Engine Handbook Parts Catalog. The Cummins QSV81/91G Operation & Maintenance Manual covers similar architecture but is a different platform.

Parts Groups and How to Navigate Them

The manual organizes parts into groups: Group 01 (crankcase), Group 03 (cylinder head), Group 05 (fuel system), Group 94 (air inlet), Group 95 (exhaust), and Group 26 (cooling). Each group has subgroups down to the individual component. For example, Group 0301 covers the cylinder head assembly, Group 0305 covers valves and springs. If you’re ordering parts, cross-reference the figure number in the manual with the group number. That system saves you from ordering the wrong gasket set because the aftermarket catalog said it fits.

The engine’s power goes through a Manual Transmission, so proper torque on the flywheel housing is critical. Don’t overlook the bellhousing bolts.

Safety Warnings Embedded in Every Chapter

Every chapter front has a safety box. Chapter 2 warns about hot engine oil and rotating fans. Chapter 3 reminds you to discharge the starting air system before working on the fuel pump. These aren’t repeated in aftermarket summaries. If you ignore them, you lose time or a finger. I keep a printed copy at the tool box because the digital version won’t save you from forgetting a lockout step.

I’ve seen it go wrong.

Does this manual cover the M915A4 with Big Cam III?

Yes. The manual specifically lists M915A4/Big Cam III on the cover.

What specific torque values are included for the cylinder head?

The manual provides torque limits in Appendix E. For the cylinder head, you need to follow the sequence in Chapter 3, Section I. The values are given in pound-feet with a tolerance range. I’ve used these specs myself on a Big Cam III – the factory says 180-200 lb-ft on the head bolts, but you must follow the correct tightening order listed in the manual. Skipping that step is a common cause of head gasket failure. The manual also includes wear limits in Appendix F for valve guides and piston rings. That information is not available in generic aftermarket guides.

If you’re putting your hands on a Cummins NTC-400, don’t rely on memory or internet hearsay. Access the Factory Manual and have it on your phone or printed out. 940 pages of OEM data is cheaper than one blown head gasket.
