Clark Equipment 11E4M Parts Catalog

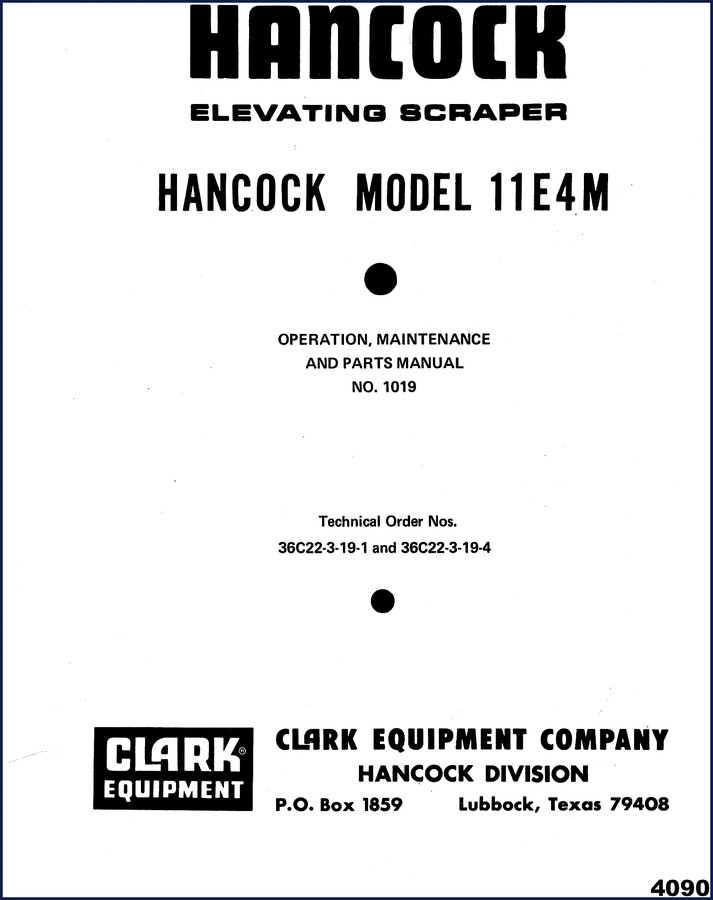

If you are tearing into a Clark Equipment 11E4M elevating scraper without the factory documentation, you are flying blind. I have seen too many guys snap bolts or install the wrong bearing because they trusted a third-party knockoff. This Clark Equipment 11E4M Parts Catalog is the genuine OEM manual – 120 pages of what the engineers at the Hancock Division wrote when they built this machine. No reprints, no aftermarket guesswork. You get the exact part numbers, assembly layouts, and the maintenance schedule that keeps a 11E4M running under load.

Operation and Maintenance Coverage

This manual covers the elevating scraper model 11E4M built by the Hancock Division of Clark Equipment. The first pages lay out the warranty – read it before you turn a wrench. It limits responsibility to six months or 1,000 hours under normal use. Understand that before you start modifying anything. The operation section walks through daily checks, pre-start procedures, and proper loading techniques. You will find the recommended fluids, filter intervals, and belt tensions. I own a shop, and I tell every guy: follow the factory lube chart or you will be pulling a transmission within a year.

What Does the Parts Section Include?

The parts catalog part of this manual gives you exploded views and part numbers for every major assembly – engine, hydraulic system, elevator drive, scraper bowl, running gear. If you are ordering a seal, a bearing, or a hydraulic line, you use the number in this book. Page references are direct: need the charge pressure? Page 73. That is from the actual manual, not a summary. You get the parts list for the 11E4M with Clark Equipment’s own nomenclature. Do not trust a universal parts lookup when you can hold the factory sheet.

3 Reasons to Use the Original Factory Manual

First, the torque specs printed here are the ones that keep the scraper from cracking under load. Aftermarket books often round up or guess – that is how you snap a bolt in a stress point. Second, the wiring diagrams and hydraulic schematics come from the actual build drawings. I have seen aftermarket diagrams swap a pressure line with a return line. Third, the part numbers are directly orderable from Clark dealers. No cross-referencing. You buy the part in the book, it fits.

Understand the Warranty Before You Start

Read the warranty language on page 2 carefully – it says defects in material or workmanship under normal use, but misuse, overloading, or unauthorized modifications void it. That includes changing a hydraulic pump without following the installation specs. This manual also includes the revision date (May 1, 1966) so you know you have the final factory version. If you are comparing this to Clark Equipment 75B 1989 Parts Catalog – OEM Factory Manual, note the 11E4M is an older machine with different subsystems. The same factory rigor applies.

Torque Specs and Fluid Capacities: What Is Inside?

I want to be specific: this manual gives you the capacities in quarts and gallons for the engine oil, transmission, hydraulic reservoir, and elevator drive. Torque values follow standard thread sizes for critical fasteners. You will also find the service intervals in hours – oil changes at 100 hours, filter replacements at 250, and so on. For a 11E4M that has been sitting, you need these numbers to bring it back to life without wrecking a $5,000 component. For other Clark models, check the Clark Model 310III Parts Manual Tractor Section or the Hancock Parts Manual No. 1008 for Model 12E2E Scraper for related equipment.

If you want a broader picture of how construction equipment documentation evolved alongside the industry, the Automotive Industry Overview puts it in context. The same engineering discipline that built your pickup built this scraper – and the manual has to match. Automotive Industry Overview is a good starting point for understanding why OEM specs matter.

Who Should Buy This Manual?

This is for the owner-operator who wants to keep a 11E4M running without paying a dealer every time a hose bursts. It is for the shop that takes in old construction equipment and needs verified part numbers. Beginners: you will need a basic set of wrenches and a hydraulic gauge to follow the procedures. This manual does not hold your hand – it gives you the data, you do the work. That is how you learn.

Is this the same as the manual that came with the machine?

Yes, this is an exact digital copy of the original factory operation, maintenance and parts manual for the Clark Equipment 11E4M elevating scraper.

Can I use this for other Clark models?

No. The 11E4M has unique part numbers and maintenance intervals. Using this manual on a different model will give you wrong specifications. For other models, look at the factory manuals linked above – each machine has its own publication. Cross-referencing parts without the proper manual is a quick way to order a part that does not fit. I have seen it happen. Do not do it.

Stop wasting time with generic parts listings and repair guesses. Access the Factory Manual and get the exact specifications that keep your 11E4M scraper moving dirt.
