Citroën C5 2003 Technical Manual – Factory Suspension Dossier

You get a C5 on the lift with a height-correction fault and the aftermarket wiring diagram shows a different pinout than what’s staring back at you. I’ve been there. That feeling when you chase a ghost because someone’s “factory-spec” PDF has a missing solenoid. The Citroën C5 2003 Technical Manual stops that. It’s an original 19-page technical dossier, pulled straight from the CAPLP2 exam archives, focused entirely on the Hydractive 3 suspension system. No fluff, no generic overviews – just the exact electro-hydraulic architecture and control strategies Citroën used when they built the car.

Hydractive 3 Suspension Architecture

Page 2 of the document lays out the system: three types of sensors feed a central suspension computer – steering wheel angle, body displacement front and rear, plus inputs from the ABS and injection ECUs. The manual then walks through the two operating modes – soft and firm – and the SC/CAR (Système Citroën de Correction Automatique du Roulis) that stiffens the roll during cornering. This isn’t a repair sequence; it’s the engineering blueprint that tells you why the system behaves the way it does. If you’re diagnosing a ride-height issue, you need to understand that the computer uses vehicle speed and throttle-release rate to decide when to raise or lower the body. The manual gives you those strategies without the filler.

Electronics and Hydraulics: What the 19 Pages Cover

The dossier splits into three technical sections: electronic architecture, hydraulic circuits, and mechanical actuation. The BHI – Bloc Hydro-Électronique Intégré – is described as the “heart” of the system, integrating a powerful computer with an autonomous pressure generator. The manual specifies the interaction between the ABS calculator, the BSI (Boîtier de Servitude Intelligent), and the suspension ECU. Aftermarket manuals skip this integration. They show you a wire to a solenoid but leave out the fact that the injection computer can override the height request based on engine load. That kind of omission costs you billable hours. This 19-page document doesn’t have that problem because it’s the original exam material used to train French maintenance technicians.

Who Should Use This Technical Manual

Advanced DIY owners and independent shop mechanics who work on C5s with Hydractive 3 suspension will get the most out of this. If you’re comfortable with oscilloscopes and wiring diagrams but need the exact voltage thresholds and solenoid activation sequences, this is your reference. It’s not a beginner’s guide to changing a strut – there’s no torque spec for the damper nut here. But when the BHI goes into limp mode and the car won’t raise, you need to know which of the four height-correction electrovalves is getting the wrong command. The manual’s description of the “étage de correction automatique de la hauteur” on page 3 gives you the logic to trace that fault. I keep a printed copy in my toolbox drawer for any C5 that comes in with a suspension warning light.

Source Authenticity: OEM Document vs Aftermarket Copies

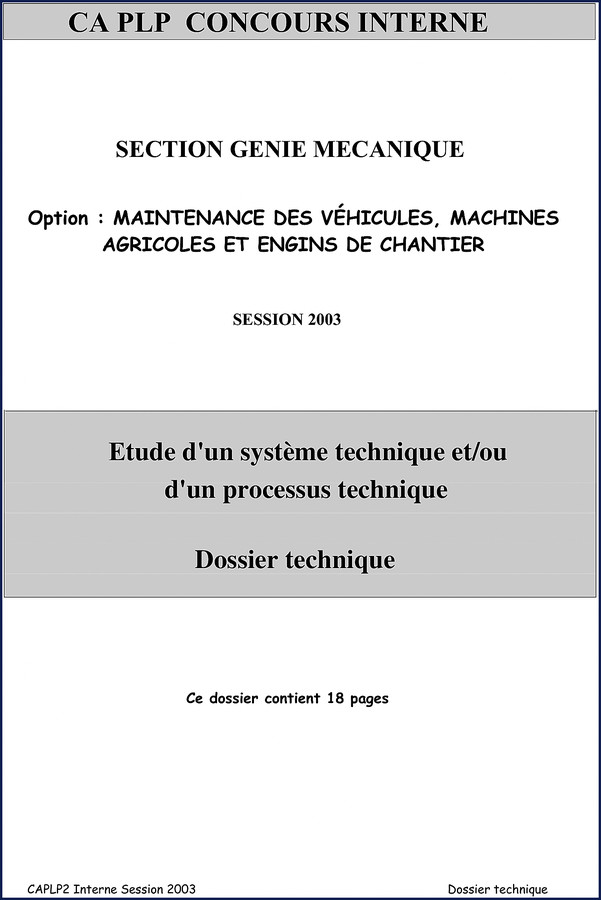

This is not a reprint of a workshop manual that got scanned at 150 DPI and missing the last three pages. The 2003 Citroën C5 Technical Manual is a direct scan of the original CAPLP2 exam dossier, meaning it was created by the French national education system in partnership with Citroën. The OCR text on the first page reads “CAPLP2 Interne Session 2003” – that’s the certification exam for vehicle maintenance teachers. The document was never intended for public sale, which is exactly why the data inside is untampered. Aftermarket distributors often clean up the language or re-draw the diagrams, introducing errors. This version is raw and complete. For related OEM documentation, check out the Citroën Xsara Picasso 2000 Technical Manual – 88 Pages OEM Specs”>Citroën Xsara Picasso 2000 Technical Manual – 88 Pages OEM Specs or the Citroën DS, ID, CX, GS, GSA Technical Manual – 56 Pages”>Citroën DS, ID, CX, GS, GSA Technical Manual – 56 Pages. If you’re also working on HDI injection systems, the Bosch HDI EDC 15C2 Injection System and Particle Filter – Section: Pre-Post Heat”>Bosch HDI EDC 15C2 Injection System and Particle Filter – Section: Pre-Post Heat manual pairs well with this suspension guide.

Does This Manual Cover the Full Vehicle?

No. It’s a suspension-specific technical dossier. 19 pages, single system, deep focus. You won’t find engine overhaul procedures or transmission removal steps in here. What you get is the exact electronic and hydraulic architecture of the Hydractive 3 system as implemented on the 2003 Citroën C5. That includes the sensor input table, the valve activation diagram, and the SC/CAR strategy. If you need broader vehicle coverage, combine this with the factory service manual. The industry perspective on automotive system documentation can be found at Automotive Industry Overview”>Automotive Industry Overview, and for transmission-specific information, see the Manual Transmission”>Manual Transmission resource. But for this suspension, you have everything you need.

FAQ

Is this manual in English?

The original document is in French. The diagrams and schematics are language-independent, and the technical terms (e.g., “électrovanne”, “calculateur”) are universal. If you can read a wiring diagram, you can use this manual.

What specific parts numbers or torque values are included?

No part numbers or torque specs are listed. The manual focuses on system function and control logic. For torque values, refer to the factory service manual for the C5. This technical dossier is a complement, not a replacement.

If you want to stop guessing and start diagnosing Citroën C5 suspension faults with the same reference material used by French technician examiners, Access the Factory Manual from AutoRepairManuals today. It’s a direct digital copy, no watermarked previews, no missing pages.
