Chevrolet Camaro 2001 Wiring Diagram – Factory Electrical Schematics

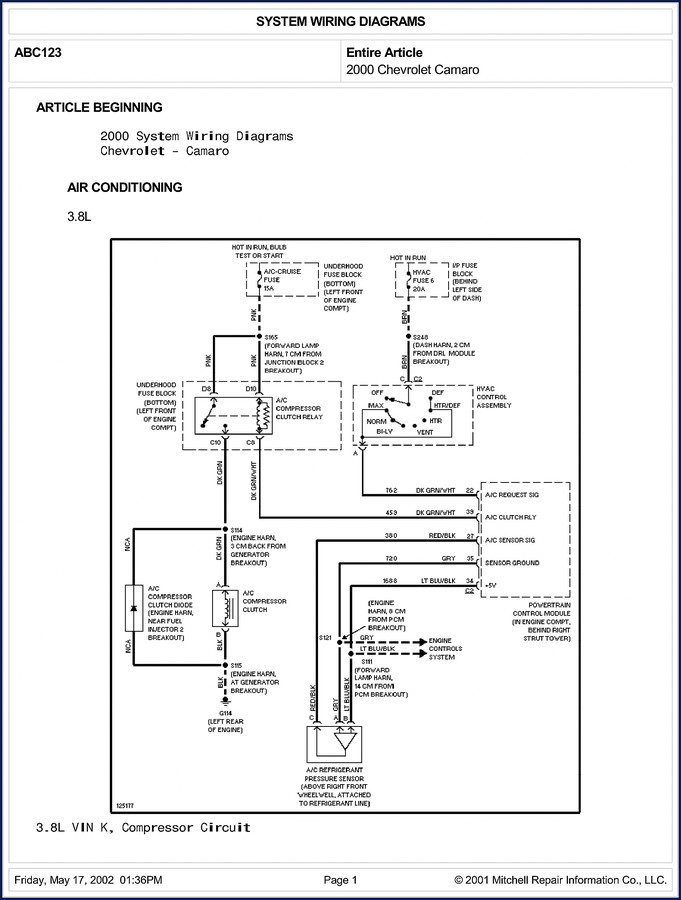

You have a 2001 Chevrolet Camaro on your lift and the electrical system is giving you trouble. Maybe the A/C clutch relay isn’t pulling in, or the PCM isn’t seeing a sensor signal. You start poking around with a multimeter and a generic aftermarket diagram that shows wire colors that don’t match the harness. That’s how you cook a $400 ECM. I’ve seen it happen. This wiring diagram is 56 pages of factory-issued schematics direct from GM’s engineering department. No translations, no artistic interpretations. Every wire color, every connector pin, every fuse location is printed exactly as the assembly line built it. Page 1 alone shows the entire A/C compressor clutch circuit for the 3.8L VIN K – and you can see the note: DO NOT GROUND THROUGH THE IGNITION SWITCH. That warning alone has saved me two hours of head-scratching on a Friday afternoon.

What’s Inside the 2001 Camaro Wiring Diagram

This manual divides the electrical system into functional groups. The A/C section gives you the full circuit from the underhood fuse block (left front of engine compartment) through the HVAC control head, the A/C request signal, the refrigerant pressure sensor, and the compressor clutch relay. The engine controls section covers the PCM pinouts, injector circuits, and sensor grounds. You also get the power distribution diagrams – hot in run, bulb test, starter circuits. Every page uses the same connector labeling and wire color codes that GM used on the assembly line. If your Camaro has the 3.8L or the 5.7L LS1, the schematics are included. The manual is organized so you can trace a fault from fuse to component without flipping back and forth. That’s worth the price if you charge by the hour.

Does This Manual Cover the Fuel System and PCM?

Yes. The engine controls system wiring (page 1 references the ENGINE CONTROLS SYSTEM block) includes the PCM/ECM connections for both engine management and transmission control. You get the A/C sensor signal circuit that runs from the HVAC control to the PCM, along with the +5V reference and sensor ground wires. The fuel pump relay circuit, injector driver circuits, and ignition control are all present. But pay attention: this is a wiring diagram, not a repair manual. It does not tell you how to rebuild the throttle body or torque the intake manifold. It tells you which wire carries the fuel pump prime signal and which pin on the PCM receives the crank sensor signal. If you need step-by-step removal procedures, you want a factory service manual – and we carry the Chevrolet Camaro 1967 Workshop Manual'”>Chevrolet Camaro 1967 Workshop Manual for older models, but for electrical diagnostics you need the schematic.

3 Systems Where the Factory Diagram Saves Your Bench Time

First: the A/C compressor clutch circuit. The aftermarket diagrams often merge the relay coil and the clutch ground into one ambiguous line. The factory diagram shows the separate paths: one 30A fuse supplies the clutch relay coil, another 15A fuse feeds the clutch itself, and the PCM controls the relay ground. Trace the DK GRN/WHT wire from the HVAC control through the A/C request signal to the PCM – if that signal is missing, the clutch never engages. Second: the HVAC control head and the MAX mode circuit. The diagram shows the GRAY and DK BLU wires that toggle the recirculation door. If you lose power to the HVAC control, check the 15A fuse at position D9 – it’s right there on page 1. Third: the refrigerant pressure sensor. The sensor location is labeled “ON A/C ACCUMULATOR/RECEIVER TO REFRIGERANT LINE.” The +5V reference and signal return wires are color-coded LT BLU/BLK and WHT. You can back-probe the sensor connector and read the voltage change with the AC on. I’ve used this page to diagnose a bad pressure sensor in ten minutes.

Understand the Wiring Before You Touch It

Don’t start cutting or splicing wires on a 2001 Camaro without knowing what feeds what. The underhood fuse block has two high-current fuses: a 60A LP fuse behind the front of dash, and a separate 30A fuse for the A/C compressor. If you short the wrong wire, you can blow that 60A fuse and lose power to half the vehicle. The manual includes notes like “DO NOT GROUND THROUGH THE IGNITION SWITCH” and “HOT IN RUN, BULB TEST OR START” – these are cues for which circuits are live only in specific key positions. Internal to the PDF, you get full-page schematics with connector pin numbers. Each wire is labeled with its circuit number and color code. For example, the A/C clutch relay coil uses DK GRN at pin 78 of the underhood fuse block. If you need to verify a repair, this is the document you print and take to the car.

Source Authenticity: OEM vs Aftermarket Reprints

I have a stack of aftermarket wiring manuals on my shelf. They all claim to be “compatible” with a 2001 Camaro. But when I opened one to find the power window circuit, the wire colors were wrong – the manual listed a WHITE wire where the actual harness had a GRAY one. That kind of error can cost you a whole day. This manual is a direct scan of the original GM document, produced by Mitchell Repair Information in 2001. The page headers say “2000 Chevrolet Camaro” because the model year documentation often carries over, but this PDF was released for the 2001 model year. Every connector shape, every splice location, every ground point is factory-correct. For a real-world comparison, check the Chevrolet Chevelle Camaro Chevy II Corvette 1967 Service'”>Chevrolet Chevelle Camaro Chevy II Corvette 1967 Service manual for older GM electronics – but for a 2001 F-body, stick with the OEM wiring diagram. If you work on classic models, the Chevrolet Camaro 1969 Workshop Manual'”>Chevrolet Camaro 1969 Workshop Manual is a different animal – no pinouts, no A/C pressure sensor circuits. You need the right decade.

Frequently Asked Questions

Can I use this diagram for a 2000 Camaro?

Yes – this manual covers both 2000 and 2001 model years. The 2000 Camaro uses the same wiring architecture. The PDF metadata says 2000, but it was distributed for 2001 service information. The circuits are identical.

What if I don’t have a wiring diagram reader?

You need a PDF viewer. Free software exists. Print the pages you need – I recommend printing the A/C page and the power distribution page.

Are there torque specs in this manual?

No. This is a wiring diagram. It contains no mechanical torque specifications, fluid capacities, or bolt sequences. You need a factory service manual for those.

Why is this manual better than a generic repair manual?

Generic manuals compress multiple years into one drawing, often omitting fuse ratings and wire harness routing details. Factory wiring diagrams show exact connector views, component locations, and notes from the OEM – like the warning not to ground through the ignition switch. That level of detail prevents misdiagnosis and parts cannon approaches. If you want to learn more about automotive electrical diagnostics, check this Automotive Wiring'”>Automotive Wiring resource for fundamentals.

Stop using borrowed aftermarket diagrams that have incorrect pin numbers. This 56-page factory wiring diagram for the 2001 Chevrolet Camaro gives you the actual schematic that GM technicians used. Whether you’re chasing a parasitic drain, a no-crank condition, or an intermittent A/C compressor, you need the right color codes and fuse locations. Automotive Industry Overview'”>Automotive Industry Overview articles can tell you about trends, but when you’re on the clock with a 2001 Camaro in Bay 3, you need real data. Access the Factory Manual now and get back to fixing cars.
