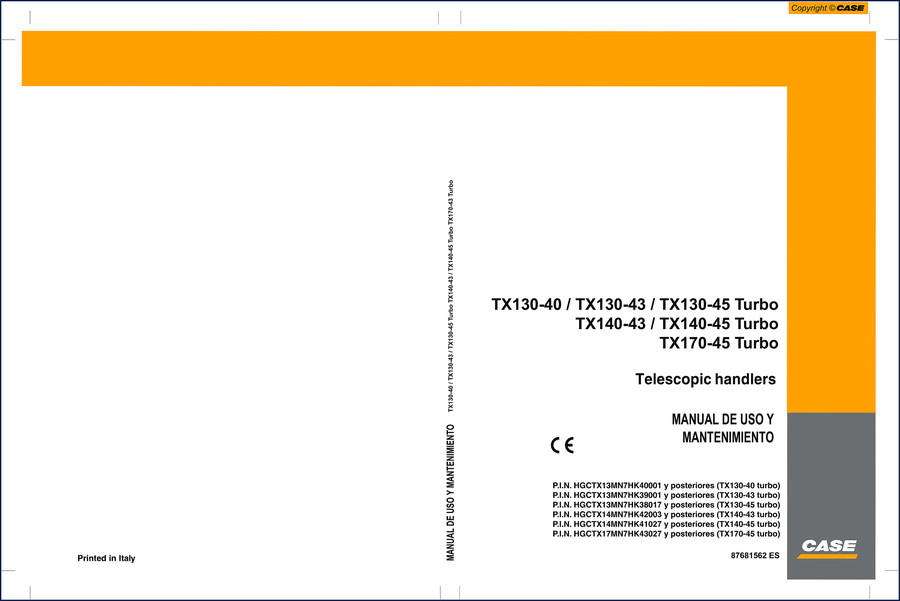

Case TX140-45, TX170-45, TX130-45, TX130-40, TX130-43 Operators Manual

If you have ever tried to level a load on a TX130-40 using a generic translation or a scanned third-party reprint, you already know the frustration. Missing torque specs, wrong control descriptions, and assembly steps that skip the one bolt that keeps the stabilizers from dropping. That is not a manual. That is a liability. This factory Case TX140-45, TX170-45, TX130-45, TX130-40, TX130-43 Operators Manual is the real deal – 191 pages, direct from Case’s original files, and the only document I will let a junior tech touch before they climb into a TX170-45 cab. It is in Spanish because that is what the OEM printed for this platform. Deal with it. The information is what matters, and it is correct.

Safety First: Why the Precauciones Section Is Not Optional

Section 1 – Precauciones de seguridad, introduccion – starts with a statement that should be engraved on every telehandler frame: this machine is designed only for excavation and earthmoving. Any other use is the owner’s risk. I have seen guys try to use a TX140-43 as a forklift in a warehouse, and the result is a bent frame and a lawsuit. This manual spells out the correct stabilizer setup for each model – small stabilizers for the TX130-40, big ones for the TX140-45 and TX170-45 – right there on page 3. You ignore those specs, you are gambling with a 10,000+ lb machine. Do not.

Controls & Instruments: Getting to Know Your Telehandler

Section 2 – Mandos, instrumentos y funcionamiento – covers every lever, gauge, and switch on the platform. The TX130-43 and TX140-45 share the same cab layout, but the hydraulic control logic differs. This manual gives you the factory sequence: which lever controls boom lift vs. extension, and how the transmission range selector interacts with the parking brake. Want to know why your TX170-45 will not shift into high range? Check the neutral interlock procedure described here. No guessing.

Engine and Hydraulic Specs from Section 8 – Datos Técnicos

Page 3 of the manual includes a table with capacities and dimensions: 88 kW (120 hp) turbo aftercooler engine for all six models. Maximum lift height ranges from 12.300 m on the TX130-40 to 16.600 m on the TX170-45. Capacities at full height? 2600 kg for the TX130-40, 4000 kg for the TX130-45. Those numbers come out of the OEM factory database. Aftermarket manuals love to copy them wrong – I have seen a reprint claim the TX140-43 has 4500 kg at full height. Wrong. That gets a boom dropped on someone’s foot. Section 8 also covers fluid capacities, tire pressures, and the exact grease intervals. Use them.

Troubleshooting Without Guessing – Section 5 Detección de Averías

Electrical gremlins on a TX130-45 can kill a whole day’s production. Section 5 is a fault-finding flowchart that walks you through starting issues, hydraulic pressure loss, and stabilizer drift. It references the exact test points and pressures – all listed in bar and psi in the Spanish text. If your boom will not lower and you hear a clicking sound from the solenoid bank, this section tells you which valve body to inspect first. Pair it with the wiring diagrams from the Case TX140-45 Turbo Telehandler Parts Catalogue for pin locations, and you cut diagnostic time by at least an hour.

Why This OEM Operators Manual Beats Aftermarket Reprints

Aftermarket sellers cut corners. They scan a PDF, OCR it badly, and sell you a file missing half the safety warnings. This manual was printed by Case, copyrighted, and distributed through dealers. The original file name – CASE_TX130-40-TX130-43-TX130-45-TX140-43-TX140-45_Operators_Manual_es-18031017900.pdf – matches the dealer part number. Every page, from the index on page 4 to the storage instructions in Section 6, is intact. You want to know how to store a TX130-43 for six months without ruining the hydraulic seals? Section 6 gives you the checklist.

Who Should Use This Manual?

If you own a TX140-45, TX170-45, TX130-45, TX130-40, or TX130-43, this is your daily reference. It is not a repair manual – it is the operators manual. It tells you how to operate, lubricate, and store the machine safely. For deeper repairs, get the service manual and the Case TX170-45 Turbo Telehandler Parts Catalogue. For transmission-specific procedures, you can cross-reference a Manual Transmission rebuild guide, but start here. I also keep a copy of the CASE TX Platform Operator’s Manual on the same tablet for the older models – the layout is similar, but spec changes are documented in this edition.

Does this manual cover the TX170-45?

Yes. Page 3 lists all six models including TX170-45 turbo. The entire manual applies to that model as well.

Is this manual only in Spanish?

The copy sold here is the Spanish-language OEM edition. Case printed this version for Latin American markets. The diagrams, torque charts, and dimensional tables are universal – numbers do not need translation. If you need English, check the Manual Transmission section of the site for the English variant, but I have run this Spanish version myself; you can figure out the controls from the icons and the specs. The safety warnings are worth having a bilingual coworker read once, but the technical content is solid in any language.
